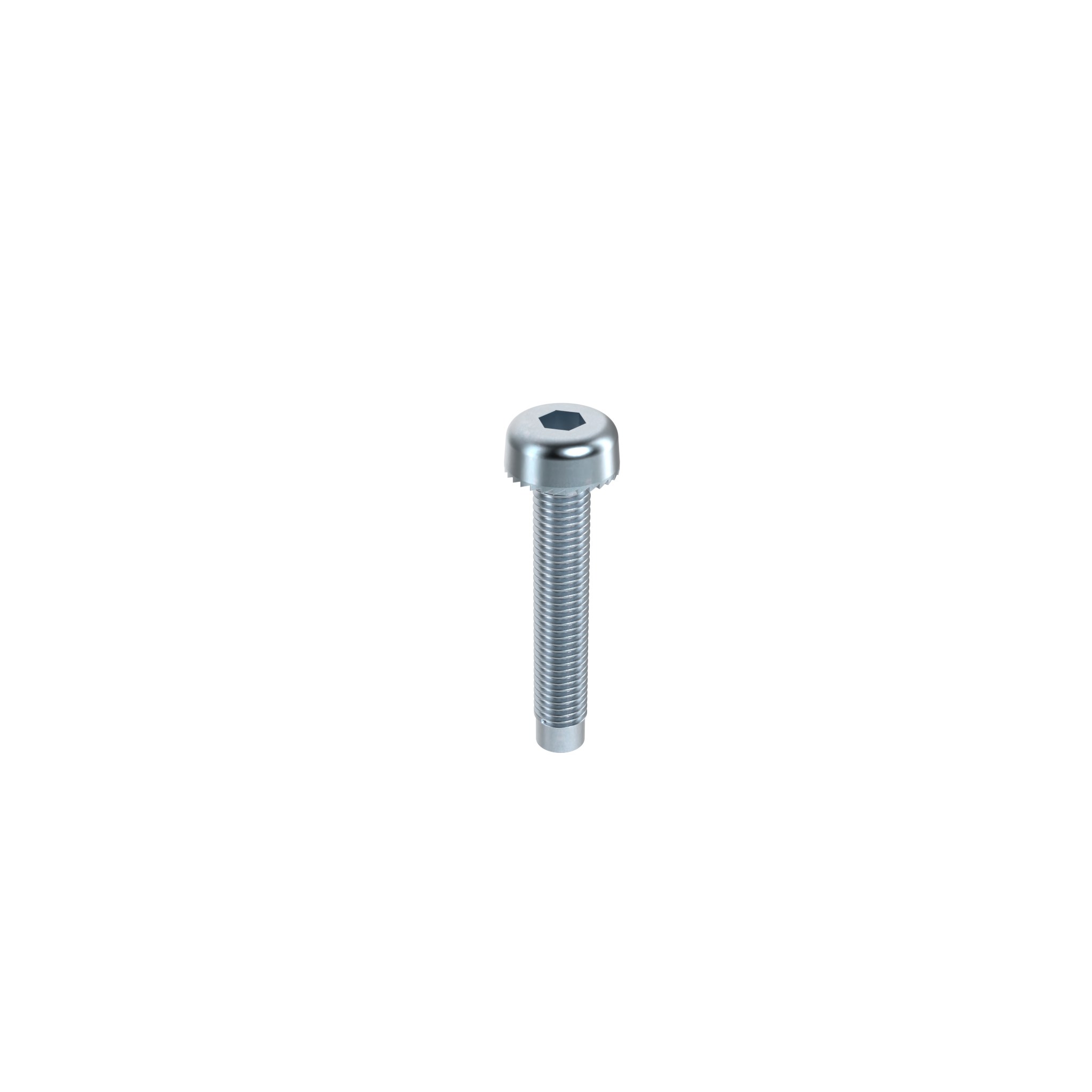

Self Tapping Screw

Información sobre el producto "Self Tapping Screw"

Países de Entrega:
En todo el mundo

Description:
To connect two aluminum profiles; no thread cutter is necessary to fix the screw; because of the special form of the head of the screw and the self-forming thread, a conductive connection of two aluminum profiles is achieved

Material:
Acero

Superficie:
Galvanizado

Zolltarifnummer:
73181499900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 100 piezas
Model: With hexagon socket
Peso (g): 15.0

Variantes

ID de producto Size S x L (mm) B (mm) Profile SW D1 (mm)
093SF0516 S5 x 16 10.8 I 3 8.5
093SF0725 S7 x 25 19.5 I 5 13.8
093SF0740 S7 x 40 34.5 I 5 13.8
093SF1240 S12 x 40 26.0 B 8 19.0
