T-slot Slider (Set)

Información sobre el producto "T-slot Slider (Set)"

Color:
T-slot slider: Black

Países de Entrega:
En todo el mundo

Description:

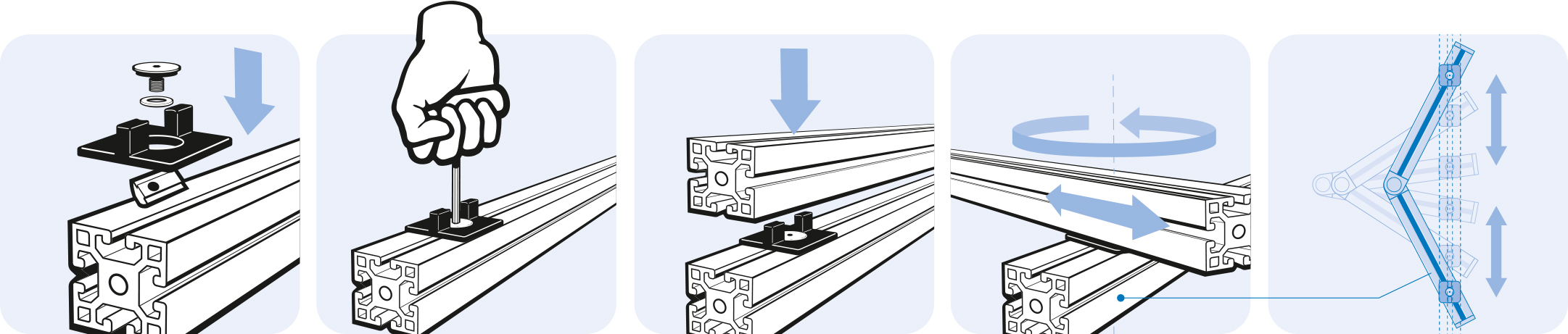

For the assembly of folding doors with simultaneous rotating and sliding movement; without a T-slot also suitable for side to end mounting into the core hole for e.g. keyboard pull outs

Material:
T-slot slider: Plastic POM
Special screw: Steel
Washer: Stainless steel
T-slot nut: Steel

Set:
1 T-slot slider,
1 special screw - M8 x 13,
1 washer DIN 988,
1 T-slot nut - slot 8 - M8

Especiales:
Otros colores bajo pedido

Surface:
Special screw: Zinc plated
Washer: Plain
T-slot nut: Zinc plated

Tip:
For gap distance 5 mm

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 conjuntos
Model: Slot 8
Peso (g): 25.0

Variantes

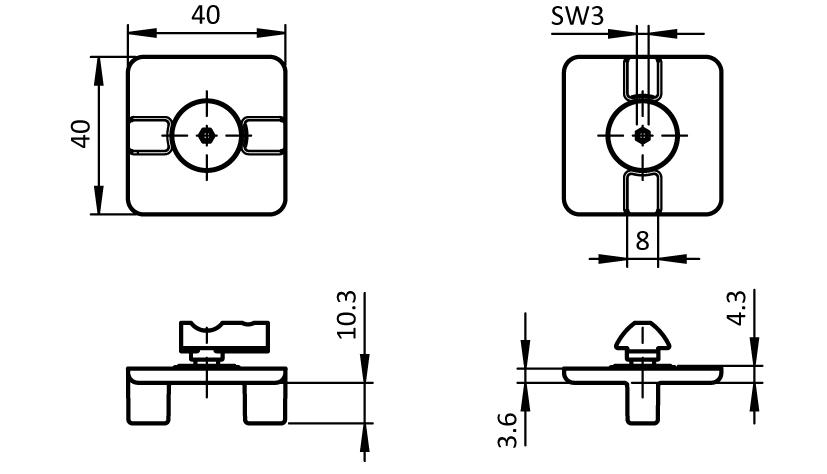

ID de producto Profile Carga Máxima (N) Ranura N (mm)
093ST4040N08 I 60 N 8
