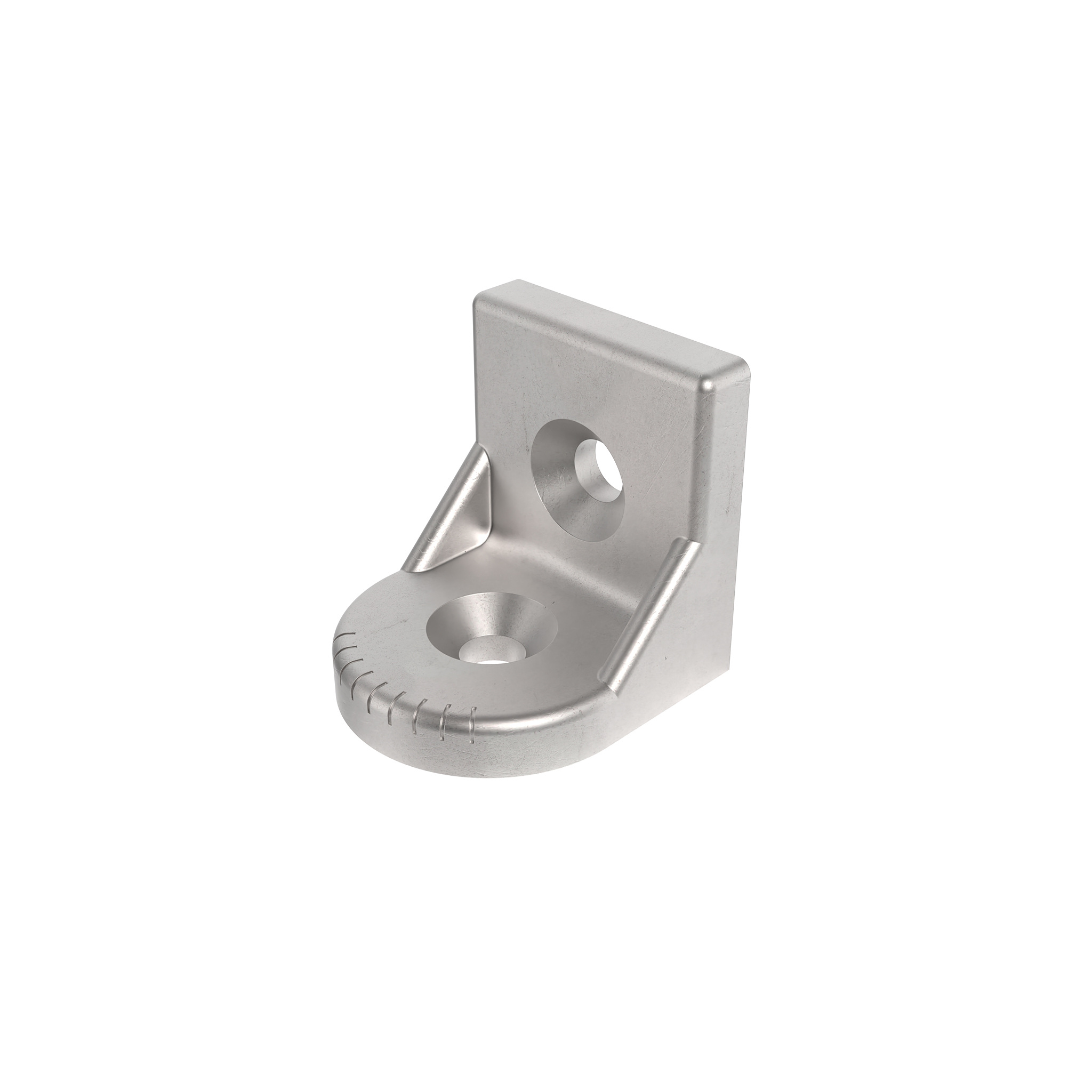

Turning Angle 45
Número de producto:
093WG402
Información sobre el producto "Turning Angle 45"
Assembly Set:
2 screws DIN 7991 - M8 x 18,
2 hammer nuts - slot 10 - M8,
4 Centering bolt slot 8,
4 Centering bolt slot 10
Color:
Turning angle: Alu color
Centering bolts: Black
Países de Entrega:
En todo el mundo
Description:

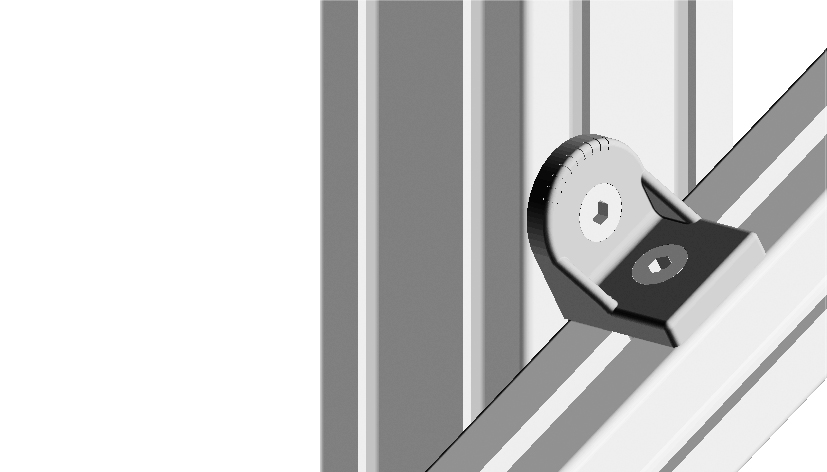

To connect aluminum profiles at various angles from 0° to 180°
Material:
Turning Angle: Aluminum die-cast
Centering bolts: Plastic PA, glass fiber reinforced
Assembly set: Steel
Surface:
Turning angle: Plain / powder coated
Assembly set: Zinc plated
Tip:
* With 4 centering bolts slot 8 and 4 centering bolts slot 10
2 screws DIN 7991 - M8 x 18,
2 hammer nuts - slot 10 - M8,
4 Centering bolt slot 8,
4 Centering bolt slot 10
Color:
Turning angle: Alu color
Centering bolts: Black
Países de Entrega:
En todo el mundo
Description:
To connect aluminum profiles at various angles from 0° to 180°
Material:
Turning Angle: Aluminum die-cast
Centering bolts: Plastic PA, glass fiber reinforced
Assembly set: Steel
Surface:
Turning angle: Plain / powder coated
Assembly set: Zinc plated
Tip:
* With 4 centering bolts slot 8 and 4 centering bolts slot 10
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
| Model: | Aluminio fundido a presión |
| Numero de PA: | 101081 |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Peso (g): | 44.2 |
| Zolltarifnummer: | 76169910990 |
