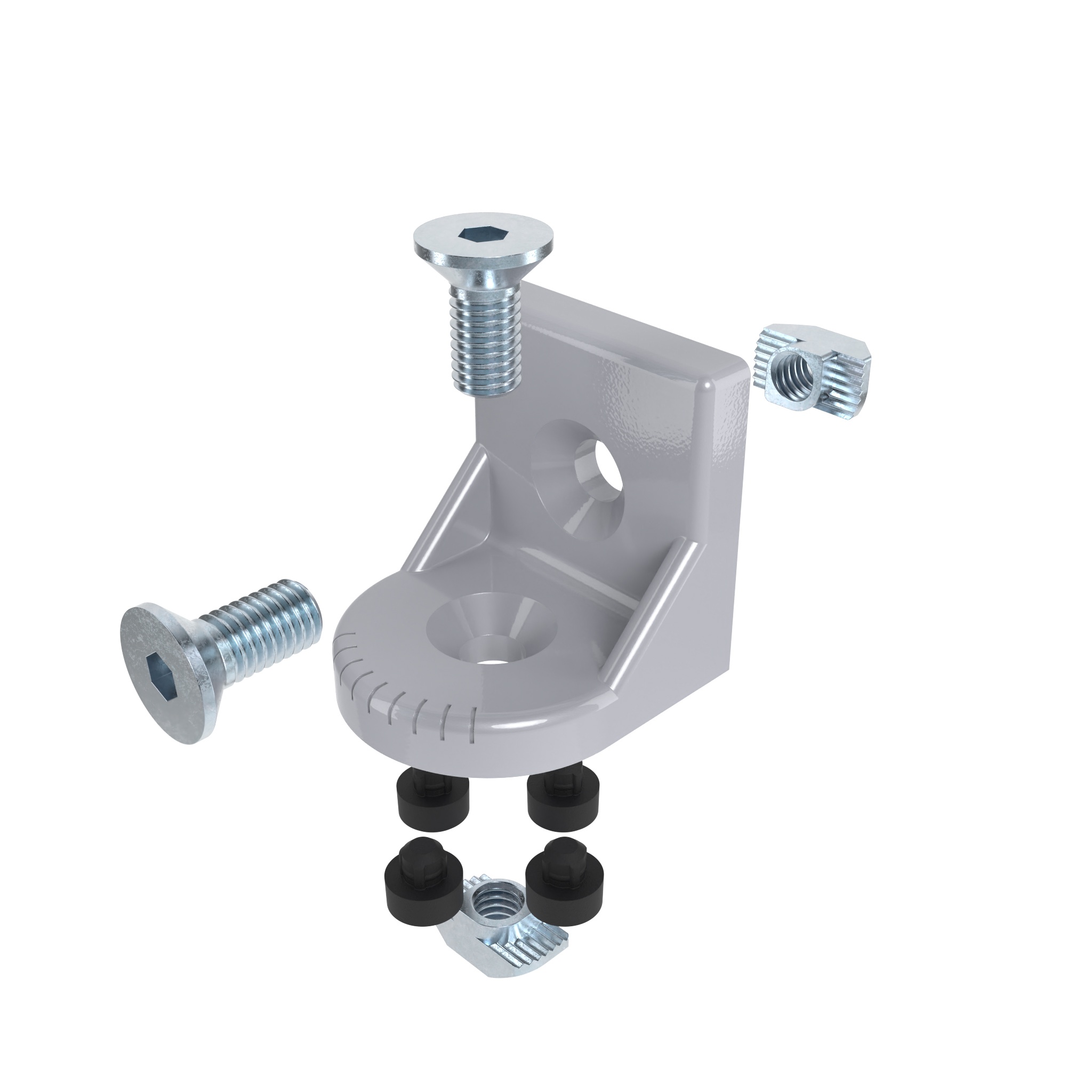

Turning Angle 45

Información sobre el producto "Turning Angle 45"

Assembly Set:
2 screws DIN 7991 - M8 x 18,
2 hammer nuts - slot 10 - M8,
4 Centering bolt slot 8,
4 Centering bolt slot 10

Color:
Turning angle: Alu color
Centering bolts: Black

Países de Entrega:
En todo el mundo

Description:
To connect aluminum profiles at various angles from 0° to 180°

Material:
Turning Angle: Aluminum die-cast
Centering bolts: Plastic PA, glass fiber reinforced
Assembly set: Steel

Surface:
Turning angle: Plain / powder coated
Assembly set: Zinc plated

Tip:
* With 4 centering bolts slot 8 and 4 centering bolts slot 10

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas / 10 jconjuntos
Model: Aluminio fundido a presión
Peso (g): 77.0

Variantes

ID de producto Version Ranura N (mm)
093WG402
093WG402N 10
093WG402NS02 Liso incl. conjunto de montaje 10
093WG402NS03 Color Aluminio con conjunto de montaje 10
