Uni Block 18 CS, Gray

Descripción:

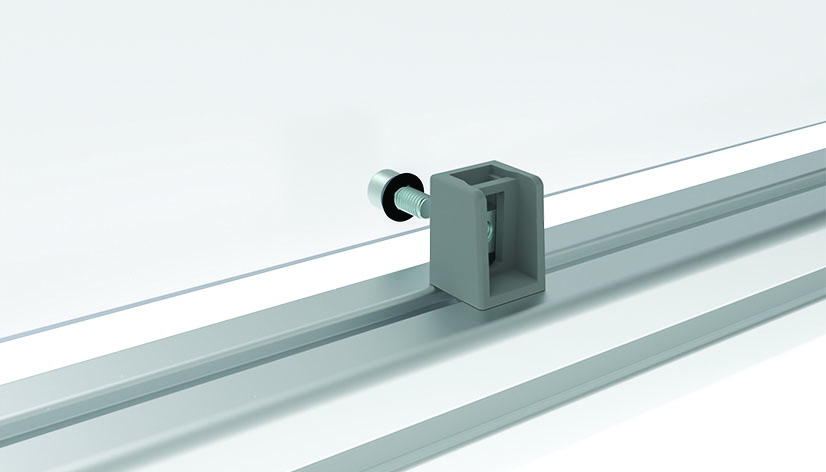

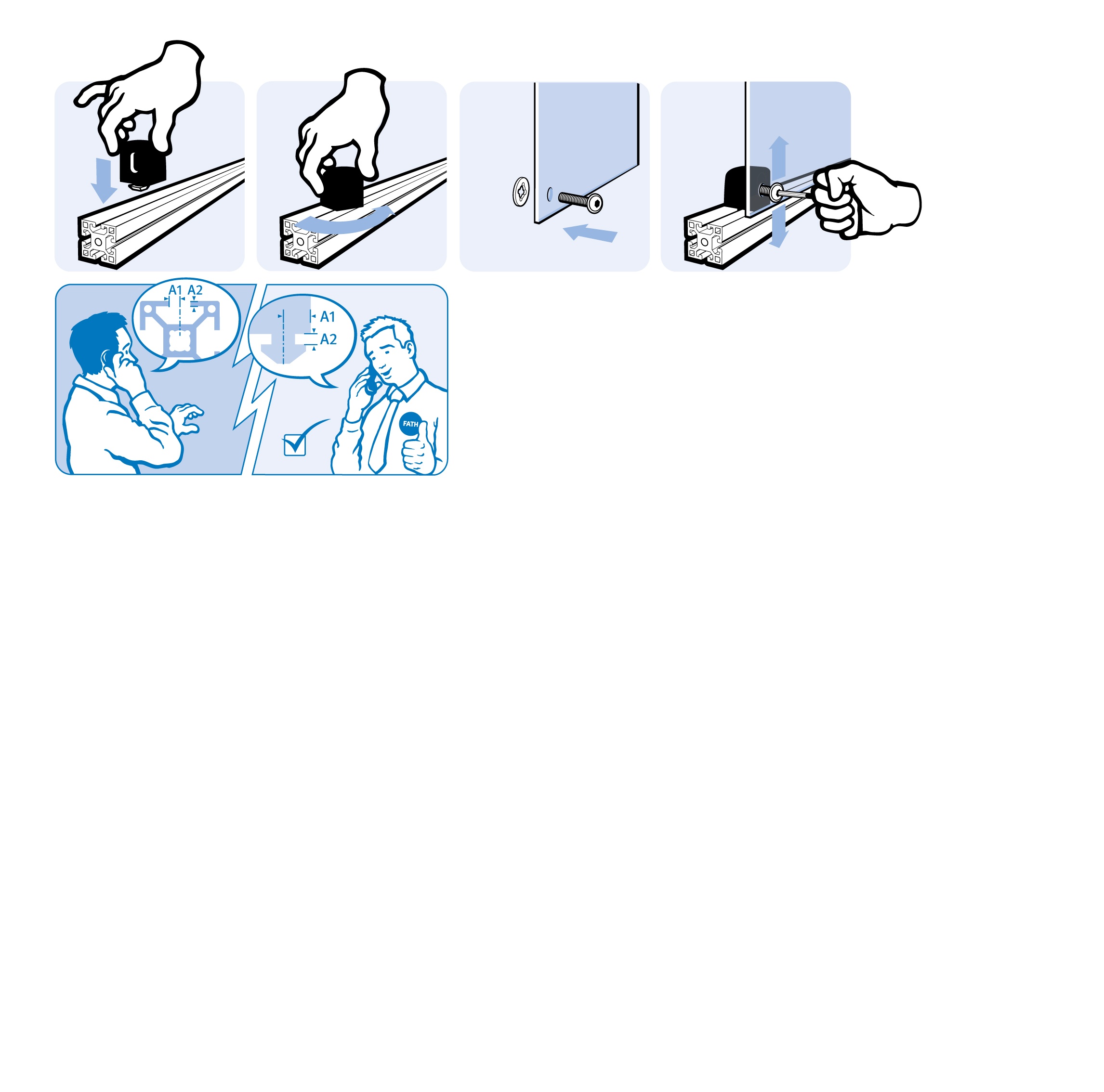

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Color:
PA, gris

Tip:
Compatible Spacer see 094102CSS03

Specials:
Customized hammer, other colors on request

Países de Entrega:
En todo el mundo

Cantidad por paquete:	25 piezas

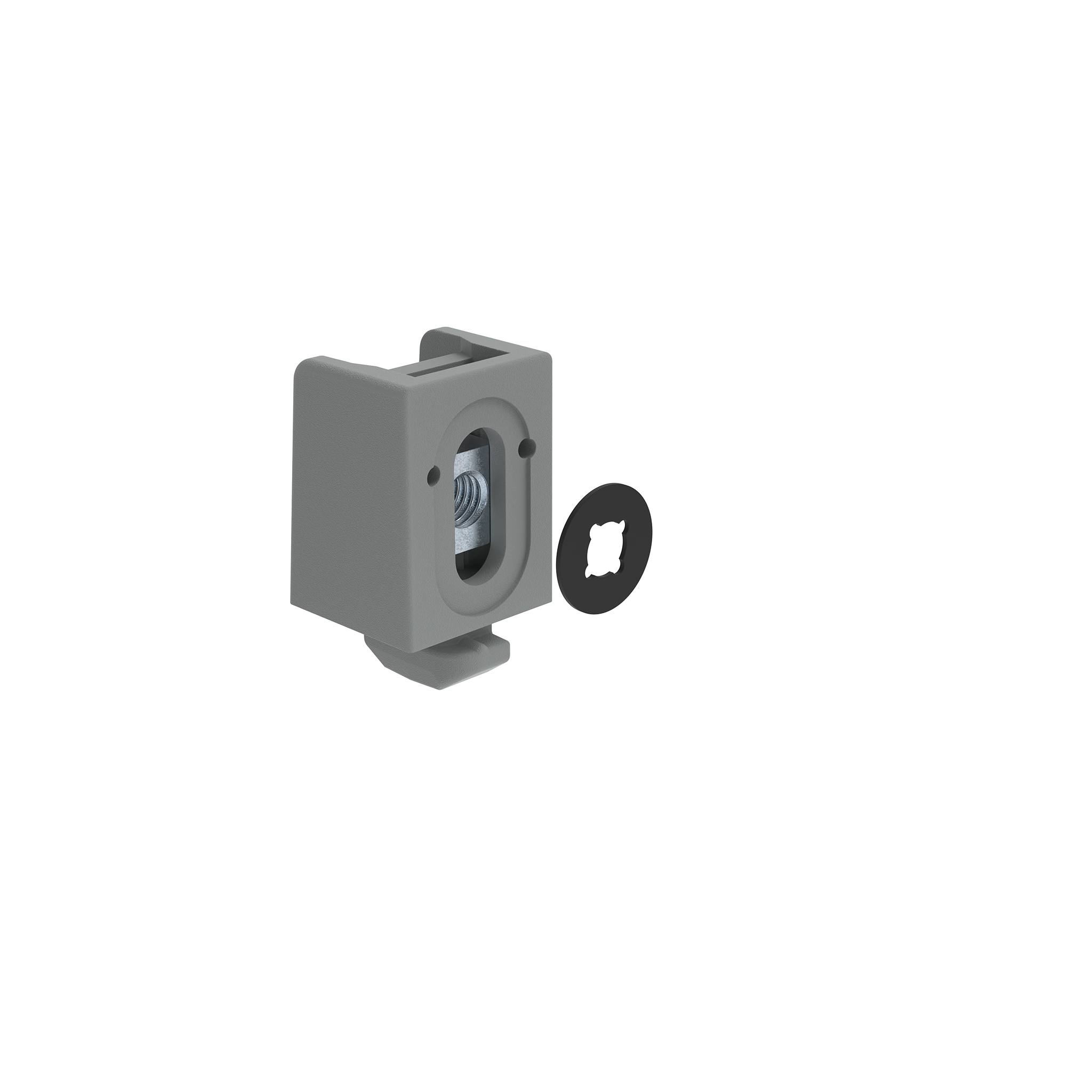

Model:	With screw retainer
Peso (g):	8.5
Numero de ERP:	141283

Variantes

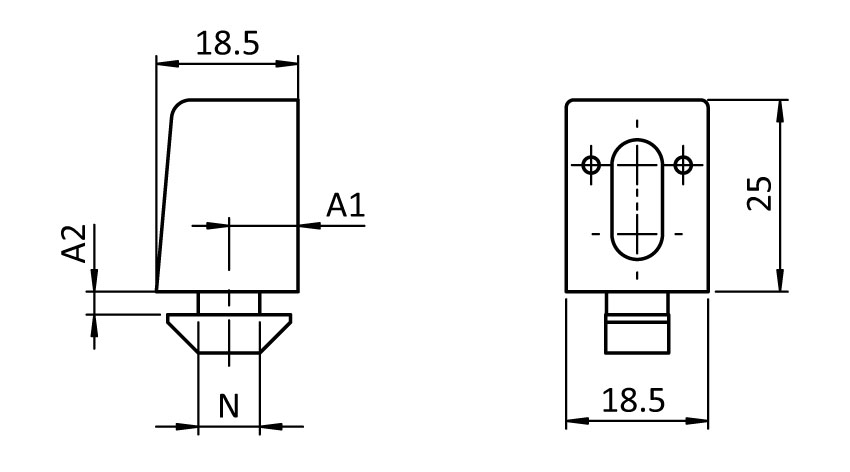

Número de producto	Profile	Color	M	Ranura N (mm)	A2 (Profile) (mm)	A1 (mm)	CAD
094100CSM6S01	I	Gris ≈ RAL 7042	M6	6	2.7 (3.0)	7.0
094002CSM6S01	B	Gris ≈ RAL 7004	M6	8	1.9 (2.2)	7.0

Clasificación

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Número de Arancel Aduanero de Exportación: 39269097

Certificados

Tags

Profile Type	Profile Type B
Slot Size	Slot size 8
Profile Form	T-slot Profiles

Accesorios adecuados

Spacer CS for Uni Blocks 18 / 25, Gray

D (mm): *2.0 Fig.: ① Color: Gris ≈ RAL 7042

Description:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plástico PA, reforzado con fibra de vidrioColor:PA, grisTip:Compatible Uni Block see 094100CSM6S01 and 094003CSM6S01Tip 2:* No further spacers can be added!Países de Entrega:En todo el mundo
