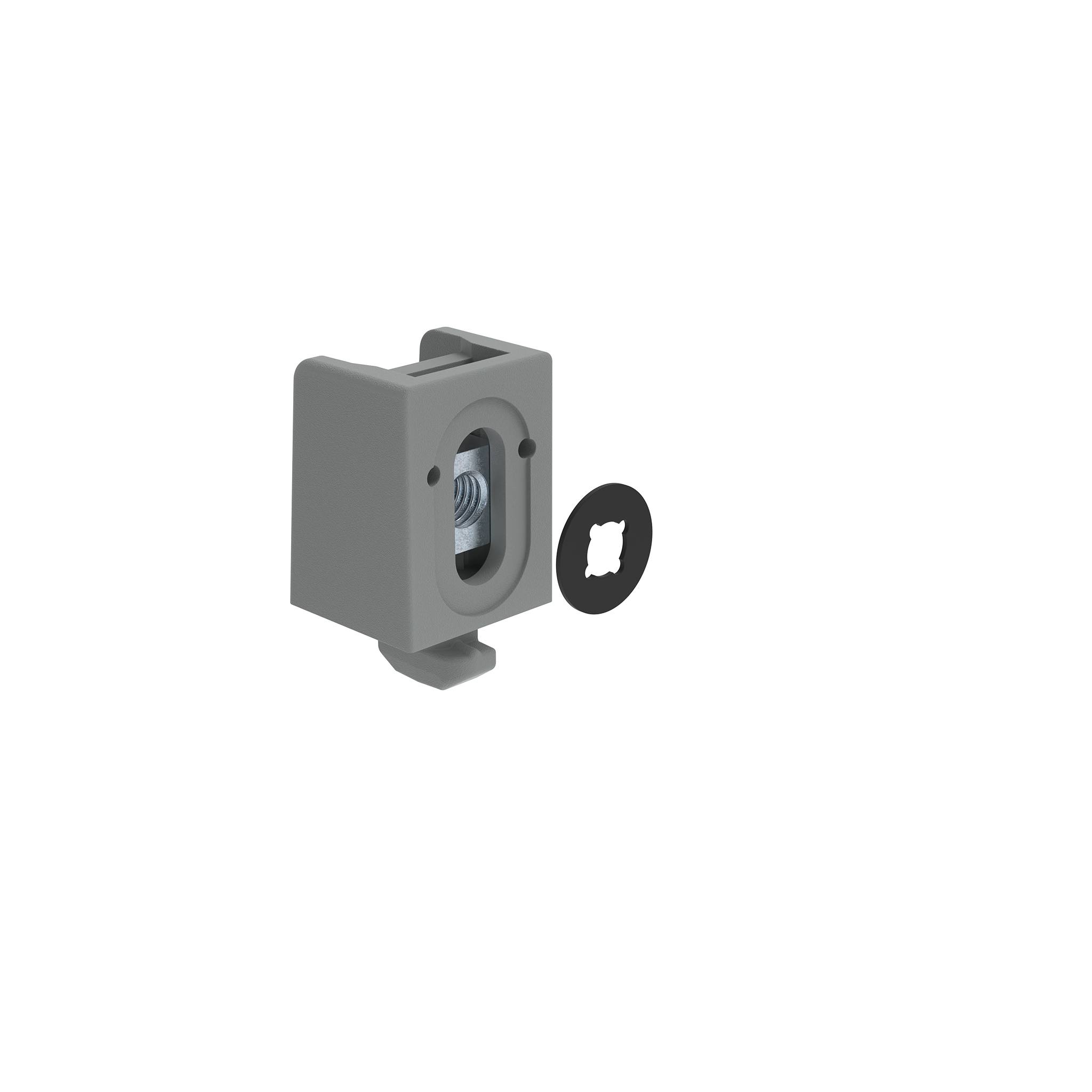

Uni Block 18 CS, Gray
Número de producto:
094100CSM6S01
Información sobre el producto "Uni Block 18 CS, Gray"
Color:
PA, gris
Países de Entrega:
En todo el mundo
Description:

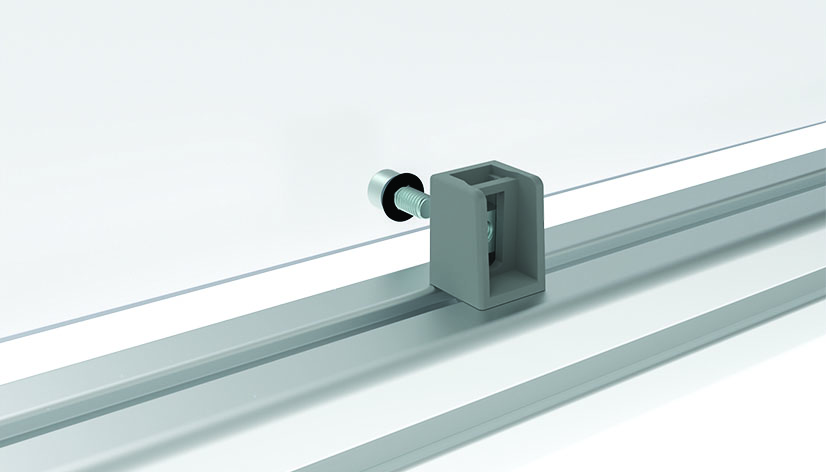

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
Specials:
Customized hammer, other colors on request
Tip:
Compatible Spacer see 094102CSS03
Zolltarifnummer:
39269097900
PA, gris
Países de Entrega:
En todo el mundo
Description:
To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
Specials:
Customized hammer, other colors on request
Tip:
Compatible Spacer see 094102CSS03
Zolltarifnummer:
39269097900
(ECLASS 6.0): | 23369290 |
---|---|
(ECLASS 7.0): | 23369290 |
(ECLASS 8.0): | 23369290 |
(ECLASS 9.0): | 23369290 |
(ECLASS 10.0): | 23369290 |
(ECLASS 11.0): | 23360492 |
(ECLASS 12.0): | 23360492 |
(ECLASS 13.0): | 23360492 |
Cantidad por Paquete: | 100 piezas |
Cantidad por Paquete (1): | 25 |
Model: | With screw retainer |
Peso (g): | 9.0 |
Variantes

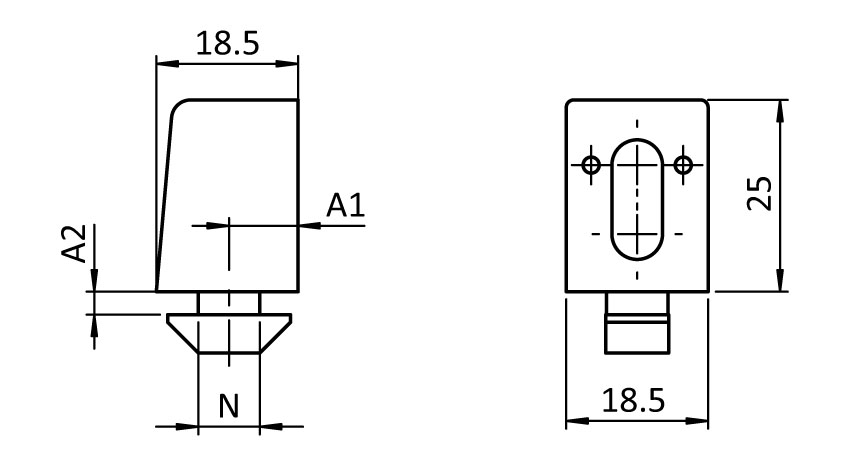

ID de producto | Color | Profile | M | Fig. | D (mm) | Ranura N (mm) | A1 (mm) | A2 (Profile) (mm) |
---|---|---|---|---|---|---|---|---|
094002CSM6S01 | Gris ≈ RAL 7004 | B | M6 | 8 | 7.0 | 1.9 (2.2) | ||
094100CSM6S01 | Gris ≈ RAL 7042 | I | M6 | 6 | 7.0 | 2.7 (3.0) | ||
094102CSS03 | Gris ≈ RAL 7042 | ① | *2.0 | |||||
094102CSS10 | Gris ≈ RAL 7004 | ② | *2.0 | |||||
094103CSS04 | Gris ≈ RAL 7042 | ① | 3.0 | |||||
094103CSS12 | Gris ≈ RAL 7004 | ② | 3.0 | |||||
094105CSS03 | Gris ≈ RAL 7042 | ① | 5.0 | |||||
094105CSS12 | Gris ≈ RAL 7004 | ② | 5.0 |
