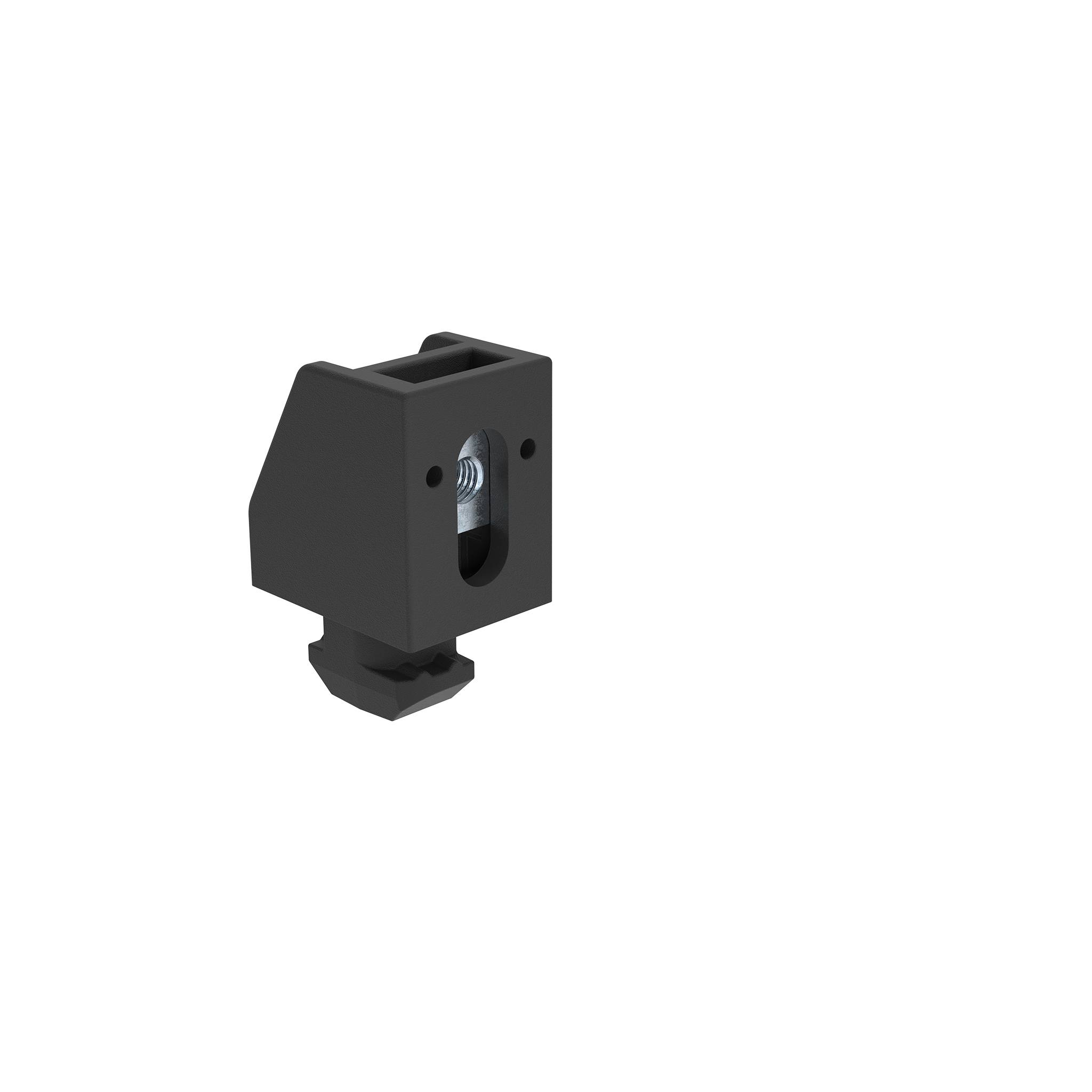

Uni Block 25, Black
Número de producto:
094005M5
Información sobre el producto "Uni Block 25, Black"
Color:
Negro
Países de Entrega:
En todo el mundo
Description:
To attach panels easily to aluminum profiles
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
Specials:
Customized hammer, other colors on request
Tip:
Compatible Spacer see 094102CS
Negro
Países de Entrega:
En todo el mundo
Description:
To attach panels easily to aluminum profiles
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
Specials:
Customized hammer, other colors on request
Tip:
Compatible Spacer see 094102CS
| (ECLASS 6.0): | 23369290 |
|---|---|
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360492 |
| (ECLASS 12.0): | 23360492 |
| (ECLASS 13.0): | 23360492 |
| Cantidad por Paquete: | 100 piezas |
| Model: | Plastic PA, Slot 8, 10 |
| Numero de ERP: | 101181 |
| Número de Arancel Aduanero de Exportación: | 39269097 |
| Peso (g): | 10.3 |
| Zolltarifnummer: | 39269097900 |
Variantes
| ID de producto | Color | Profile | D (mm) | Ranura N (mm) | M | A2 (Profile) (mm) | A1 (mm) |
|---|---|---|---|---|---|---|---|
| 094003M4 | I | 8 | M4 | 4.35 (4.5) | 7.9 | ||
| 094003M5 | I | 8 | M5 | 4.35 (4.5) | 7.9 | ||
| 094003M6 | I | 8 | M6 | 4.35 (4.5) | 7.9 | ||
| 094004M4 | B | 10 | M4 | 5.6 (6.0) | 9.5 | ||
| 094004M5 | B | 10 | M5 | 5.6 (6.0) | 9.5 | ||
| 094004M6 | B | 10 | M6 | 5.6 (6.0) | 9.5 | ||
| 094005M4 | B | 10 | M4 | 6.0 (6.0) | 14.0 | ||
| 094005M5 | B | 10 | M5 | 6.0 (6.0) | 14.0 | ||
| 094005M6 | B | 10 | M6 | 6.0 (6.0) | 14.0 | ||
| 094008M4 | B | 10 | M4 | 5.7 (6.0) | 8.5 | ||
| 094008M5 | B | 10 | M5 | 5.7 (6.0) | 8.5 | ||
| 094008M6 | B | 10 | M6 | 5.7 (6.0) | 8.5 | ||
| 094020M4 | I | 8 | M4 | 4.4 (4.5) | 12.0 | ||
| 094020M5 | I | 8 | M5 | 4.4 (4.5) | 12.0 | ||
| 094020M6 | I | 8 | M6 | 4.4 (4.5) | 12.0 | ||
| 094080M4 | I | 8 | M4 | 4.6 (4.5) | 14.0 | ||
| 094080M5 | I | 8 | M5 | 4.6 (4.5) | 14.0 | ||
| 094080M6 | I | 8 | M6 | 4.6 (4.5) | 14.0 |
