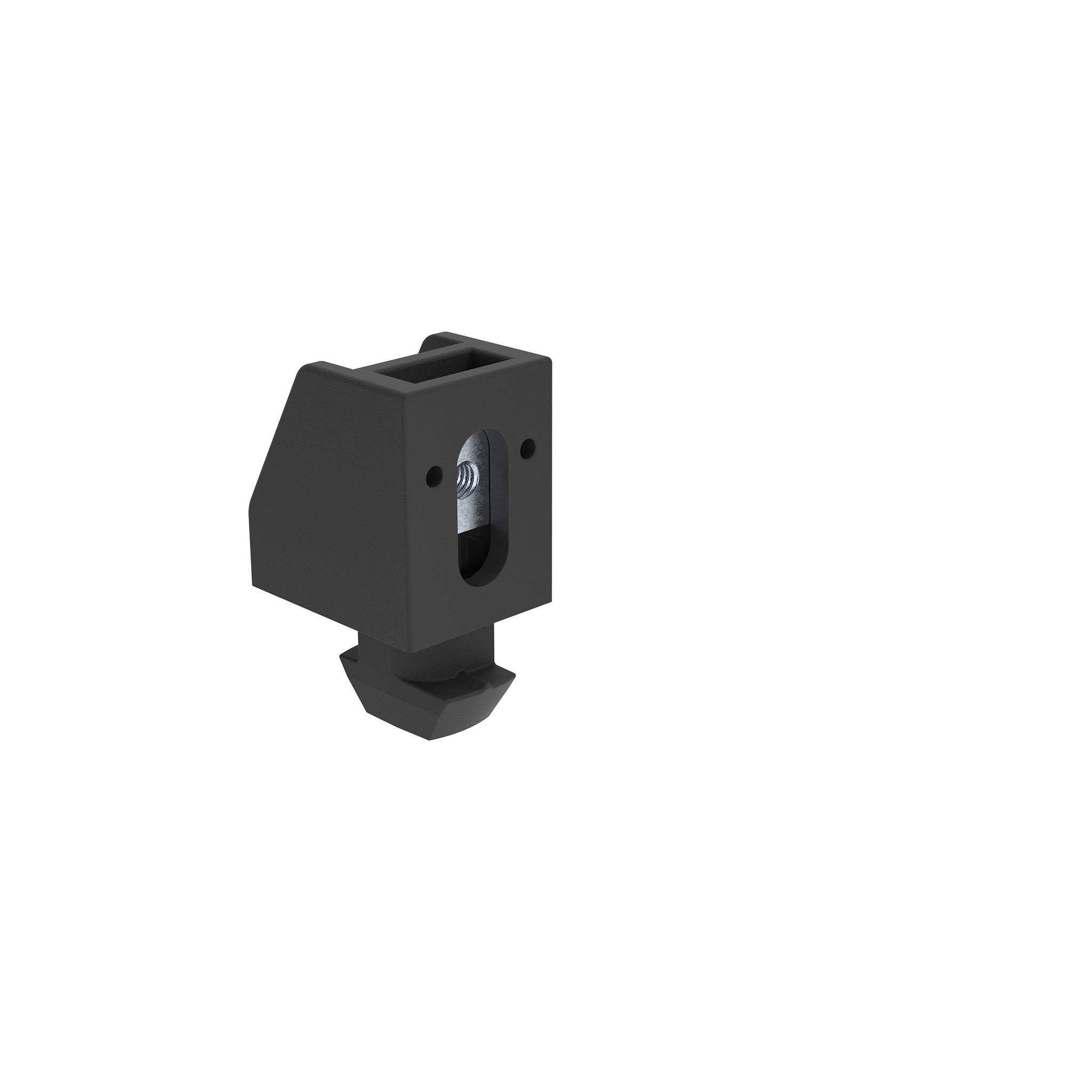

Uni Block 25, Black

Descripción:
To attach panels easily to aluminum profiles

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Color:
Negro

Tip:
Compatible Spacer see 094102CS

Specials:
Customized hammer, other colors on request

Países de Entrega:
En todo el mundo

Cantidad por paquete:	100 piezas
Model:	Plastic PA, Slot 8, 10
Peso (g):	10.6
Numero de ERP:	128877

Variantes

Número de producto	Material	Profile	M	Ranura N (mm)	A2 (Profile) (mm)	A1 (mm)
094003M4	-	I	M4	8	4.35 (4.5)	7.9
094003M5	-	I	M5	8	4.35 (4.5)	7.9
094003M6	-	I	M6	8	4.35 (4.5)	7.9
094020M4	-	I	M4	8	4.4 (4.5)	12.0
094020M5	-	I	M5	8	4.4 (4.5)	12.0
094020M6	-	I	M6	8	4.4 (4.5)	12.0
094080M4	-	I	M4	8	4.6 (4.5)	14.0
094080M5	-	I	M5	8	4.6 (4.5)	14.0
094080M6	-	I	M6	8	4.6 (4.5)	14.0
094008M4	-	B	M4	10	5.7 (6.0)	8.5
094008M5	-	B	M5	10	5.7 (6.0)	8.5
094008M6	-	B	M6	10	5.7 (6.0)	8.5
094004M4	-	B	M4	10	5.6 (6.0)	9.5
094004M5	-	B	M5	10	5.6 (6.0)	9.5
094004M6	-	B	M6	10	5.6 (6.0)	9.5
094005M4	-	B	M4	10	6.0 (6.0)	14.0
094005M5	-	B	M5	10	6.0 (6.0)	14.0
094005M6	Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steel	B	M6	10	6.0 (6.0)	14.0

Clasificación

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Número de Arancel Aduanero de Exportación: 39269097

Certificados

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Profile Form	T-slot Profiles
