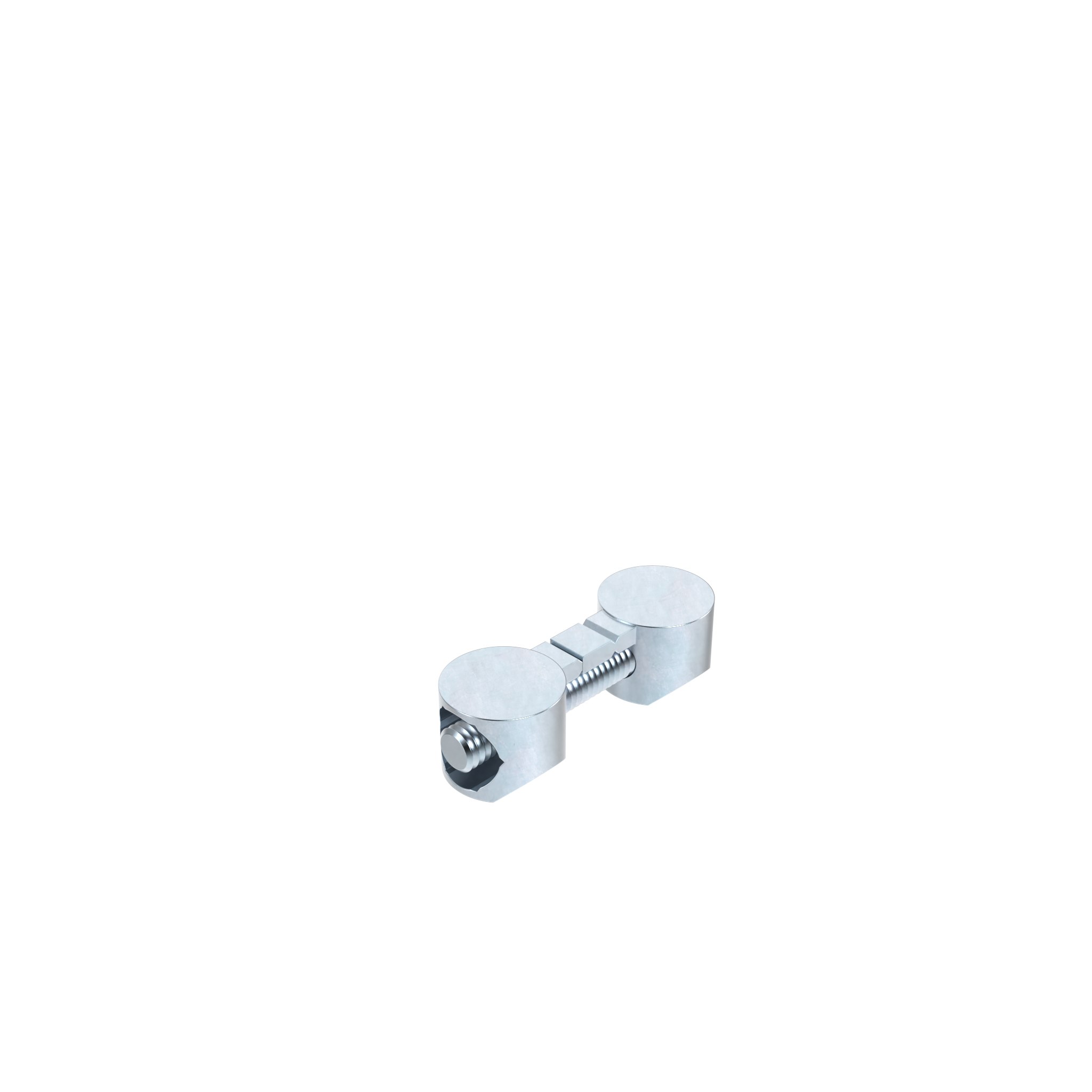

Universal Butt Connector I

Descripción:
End-to-end connection of two aluminum profiles
Of the same type; assembly set included
Material:
Zinc fundido a presión

Superficie:
Galvanizado

Tip:
*Without nut, thread integrated

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: Zinc fundido a presión
Peso (g): 28.2
Numero de ERP: 105219

Variantes

Número de producto D (mm) H (mm) A (mm) L (mm) K (mm) Ranura N (mm) Consejo Tornillo CAD
11.8 8.5 32.0 5.4 - 5 - M4
15.7 12.5 46.0 9.3 3.3 6 - M6
19.7 16.0 60.0 9.0 - 8 * M8

Clasificación

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
Zolltarifnummer
79070000900
Número de Arancel Aduanero de Exportación
79070000

Certificados

Tags

Profile Type Profile Type I
Slot Size Slot size 6
Product Feature ESD
Profile Form T-slot Profiles
