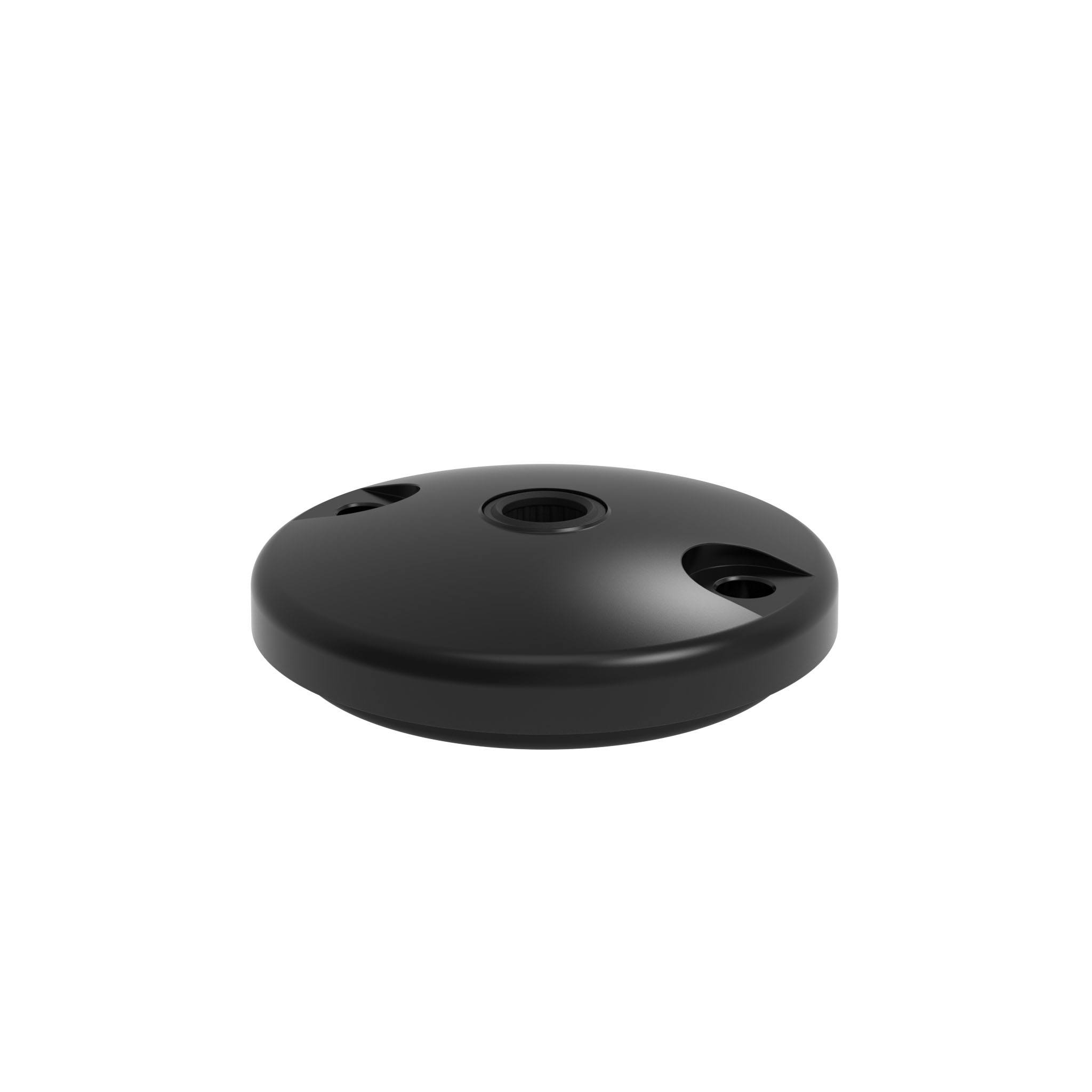

Base ZN BDH pour pieds à rotule, rotule 15

Informations sur le produit "Base ZN BDH pour pieds à rotule, rotule 15"

Couleur:
Noir

Pays de livraison:
Monde entier

Description:
Un pied à rotule qui peut être spité au sol

Matériau:
Fonderie zamac

Options:
Autres tailles, autres surfaces, autres couleurs, vised ou patin anti-glisse collé sur demande;
As assemblé en usine pied de nivellement sur demande

Etat de surface:
Peint. poudre

Information:
Tige filetée compatible voir 098DM08025M et suivant,
Écrou compatible voir 4DIN439BM5M et suivant,
Patin anti-glisse compatible voir 098DG030
Modèle: Fonderie Zamac, avec trous de spitage
Conditionnement: 10 pièces
Code douanier exportation: 79070000
Poids (g): 414.0
Code ERP: 103993
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 79070000900

Variantes

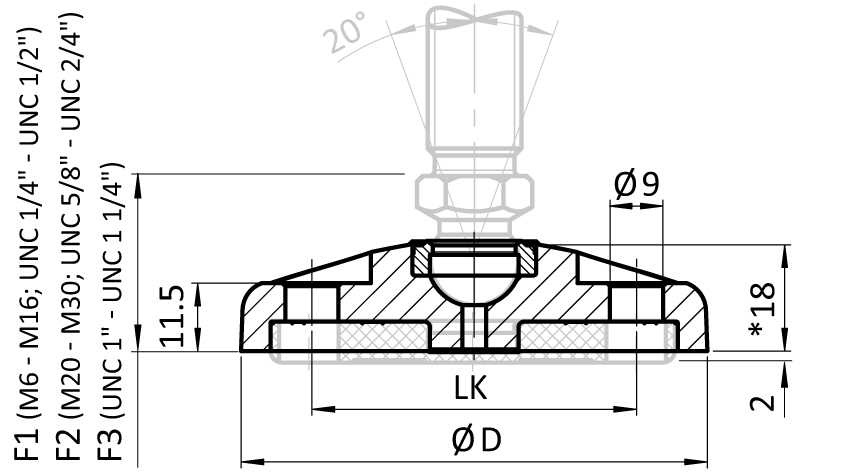

Réf. produit Version Embase Fmax (N) LK (mm) D (mm) F1 (mm) F2 (mm) F3 (mm)
098D060ZBS Sans Patin anti-glisse 60 29400 40 59 29.5 32.5 33.5
098D060ZBSG Avec Patin anti-glisse 60 29400 40 59 29.5 32.5 33.5
098D080ZBS Sans Patin anti-glisse 80 29400 55 79 29.5 32.5 33.5
098D080ZBSG Avec Patin anti-glisse 80 29400 55 79 29.5 32.5 33.5
098D100ZBS Sans Patin anti-glisse 100 34300 74 99 29.5 32.5 33.5
098D100ZBSG Avec Patin anti-glisse 100 34300 74 99 29.5 32.5 33.5
098D120ZBS Sans Patin anti-glisse 120 34300 94 119 29.5 32.5 33.5
098D120ZBSG Avec Patin anti-glisse 120 34300 94 119 29.5 32.5 33.5
