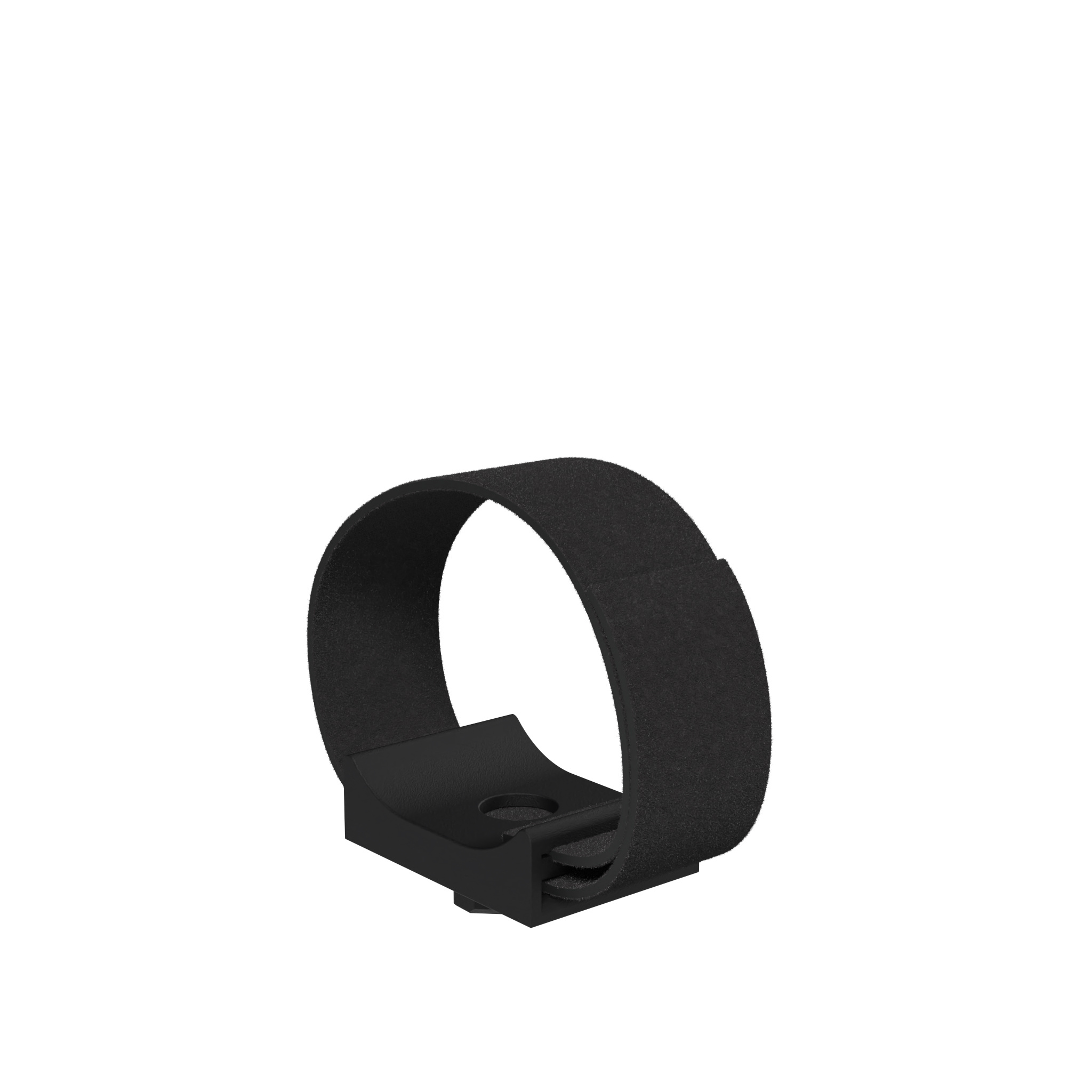

Bloc crochet et boucle

Informations sur le produit "Bloc crochet et boucle"

Color:
Cable binding block: Black
Hook-and-loop strap: Black

Pays de livraison:
Monde entier

Description:

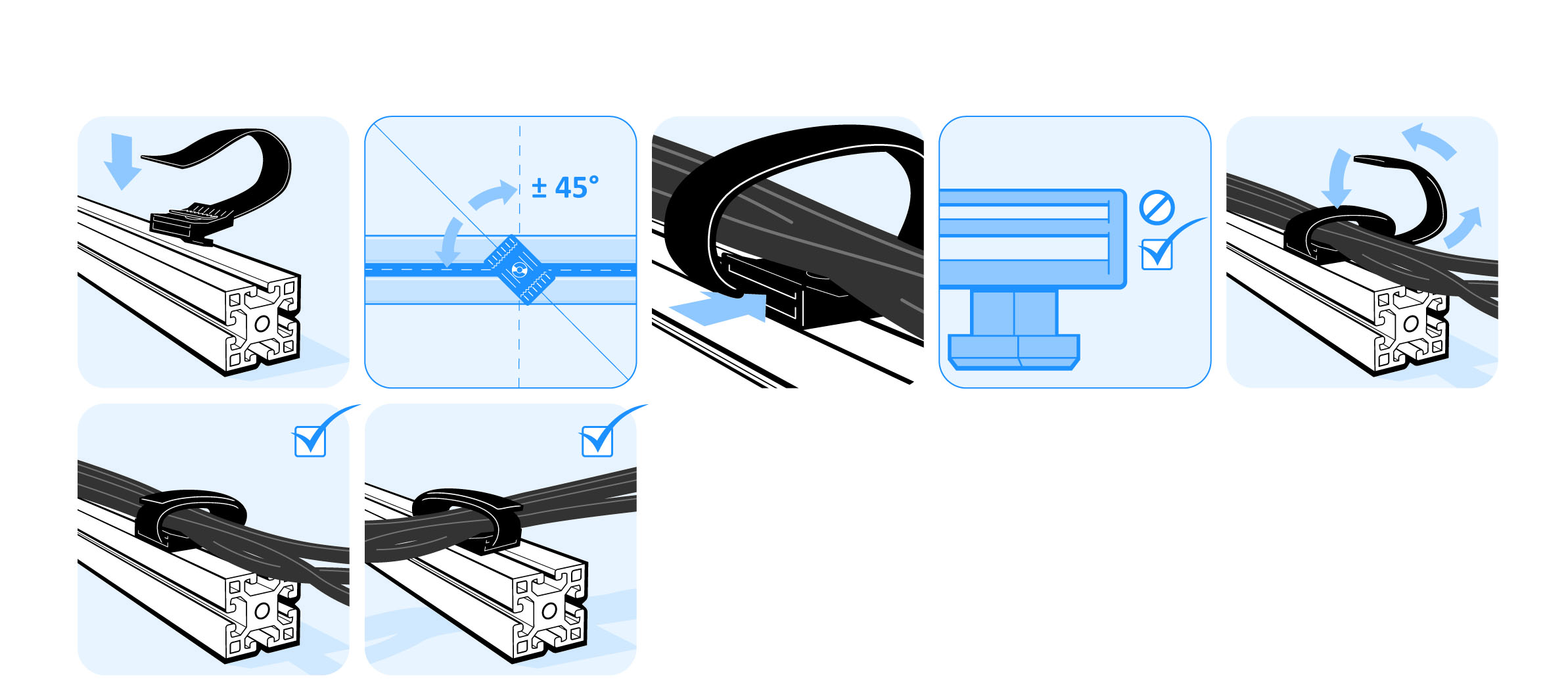

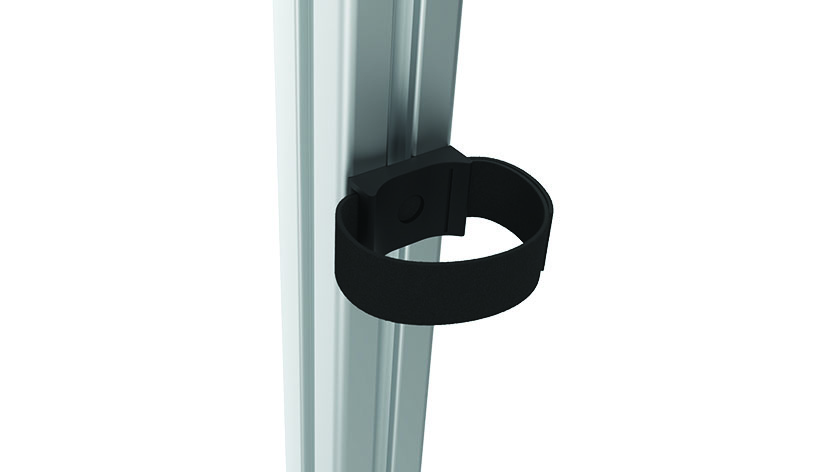

To fix cables to aluminum profiles in two directions without the need for cable ties, can be opened and closed again; can be mounted into the slot by an eight of a turn

Material:
Cable binding block: Plastic PA, glass fiber reinforced
Hook-and-loop strap: Plastic PP (UL94-V2)

Zolltarifnummer:
39269097900
(ECLASS 6.0): 27140701
(ECLASS 7.0): 27140701
(ECLASS 8.0): 27140701
(ECLASS 9.0): 27140701
(ECLASS 10.0): 27140701
(ECLASS 11.0): 27140701
(ECLASS 12.0): 27140701
(ECLASS 13.0): 27140701
Conditionnement: 10 pièces
Modèle: Plastique PA, R8, 10
Poids (g): 10.0

Variantes

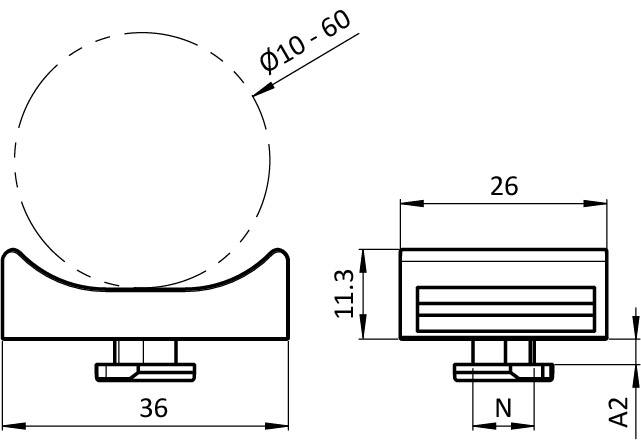

ID de produit ØD (mm) Profilé A2 (profil) (mm) Rainure N (mm)
093803N08S01 10 - 60 I 4.6 (4.5) 8
093809N10S01 10 - 60 B 5.8 (6.0) 10
