Bras pour clavier I40L 370 (Kit)

Informations sur le produit "Bras pour clavier I40L 370 (Kit)"

Color:
Keyboard holder: Alu color
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Cable binding blocks: Black

Pays de livraison:
Monde entier

Description:

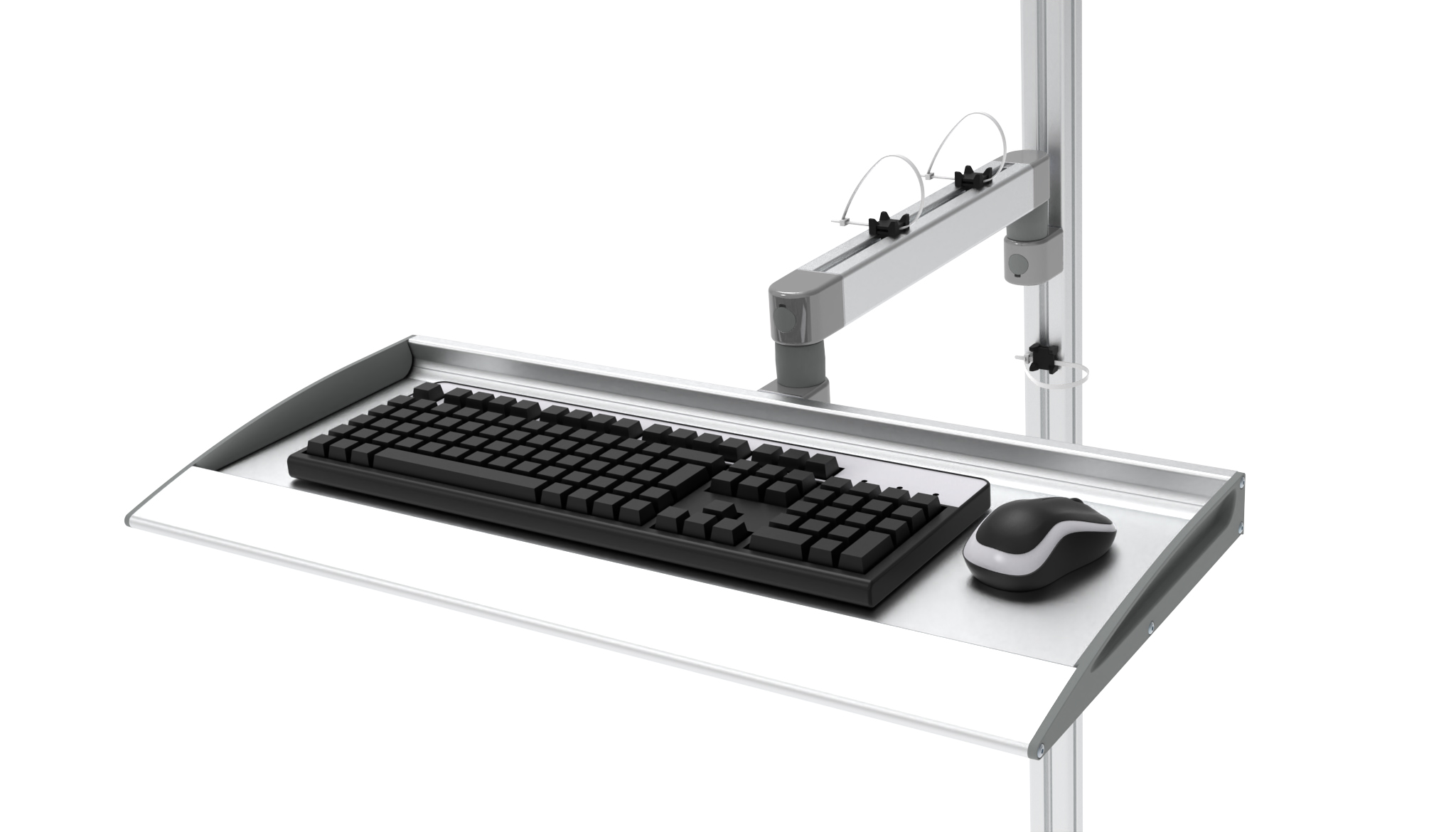

Stable keyboard arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled
For placing the keyboard and mouse, with wrist rest
Keyboard arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

Material:
Keyboard holder: Aluminum
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps keyboard holder: Plastic PA, glass ball reinforced
Cover caps arm: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Cable binding blocks: Plastic PA, glass fiber reinforced

Set:
1 system arm I40L 370 (Set) with friction joint,
1 keyboard holder AL, slot 8,
3 cross cable binder blocks, slot 8
3 cable binder T40R

Surface:
Keyboard holder: Anodized
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated

Zolltarifnummer:
76169990990
Conditionnement: 1 pièce
Modèle: Prémonté, profilé 40 et supérieur
Poids (g): 4600.2

Variantes

ID de produit Profilé Rainure N (mm)
6SKS40NLN08370 I 8
