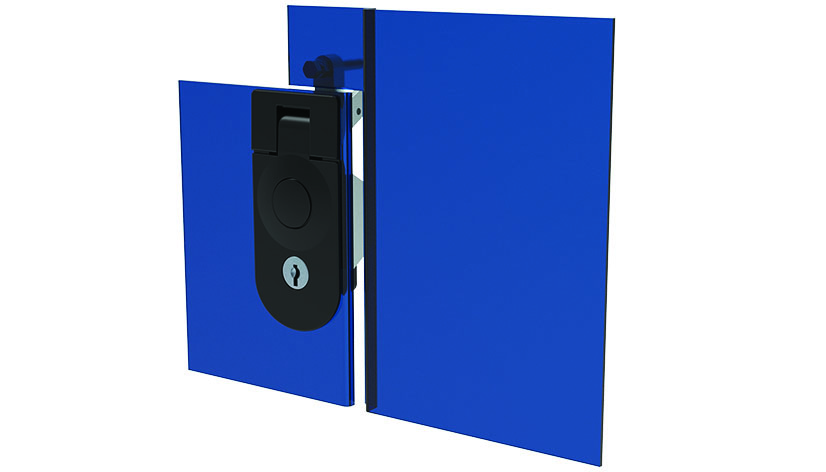

Compression Lever Latch 90 x 35, FH751 Key Locking with Shutter

Informations sur le produit "Compression Lever Latch 90 x 35, FH751 Key Locking with Shutter"

Color:
Handle: Black
Trigger: Black
Housing: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast
Trigger: Zinc die-cast
Housing: Zinc die-cast
Mounting bracket: Steel
Screws: Steel
Arm: Zinc die-cast
Nut: Steel

Surface:
Handle: Powder coated
Trigger: Powder coated
Housing: Powder coated
Mounting bracket: Zinc plated
Screws: Zinc plated
Arm: Zinc plated
Nut: Zinc plated

Conditionnement:	10 pièces
Poids (g):	442.5
ECLASS 6.0:	23199090
ECLASS 7.0:	23199090
ECLASS 8.0:	23199090
ECLASS 9.0:	23199090
ECLASS 10.0:	23199090
ECLASS 11.0:	23199090
ECLASS 12.0:	23199090
ECLASS 13.0:	23199090
Zolltarifnummer:	83014090000
Code douanier exportation:	83014090
Code ERP:	139356

Variantes

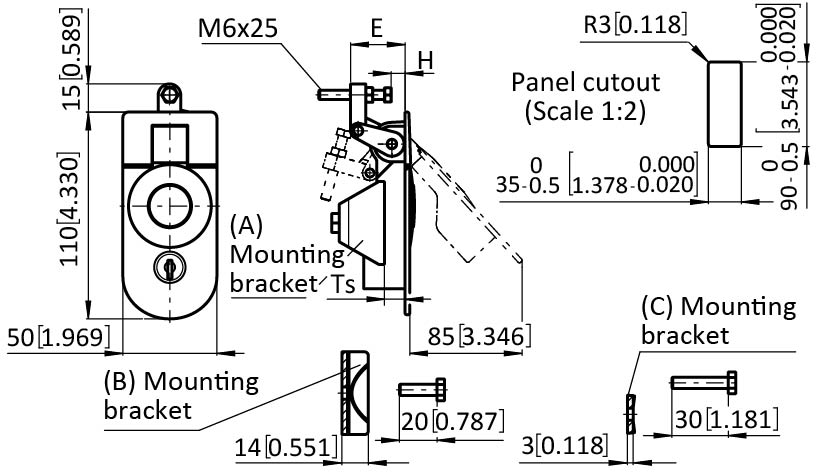

Réf. produit	H (mm)	E (mm)	Fixation	Ts (mm)
0813001	1 - 14	29.0	A	1 - 11
0813005	1 - 14	29.0	B	11 - 21
0813009	14 - 29	44.0	A	1 - 11
0813013	14 - 29	44.0	B	11 - 21
0813017	14 - 29	44.0	C	21 - 31
0813021	29 - 45	60.0	A	1 - 11
0813025	29 - 45	60.0	B	11 - 21
0813029	29 - 45	60.0	C	21 - 31
0813033	29 - 45	60.0	D	31 - 41
0813037	45 - 57	72.0	A	1 - 11
0813041	45 - 57	72.0	B	11 - 21
0813045	45 - 57	72.0	C	21 - 31
0813049	45 - 57	72.0	D	31 - 41
