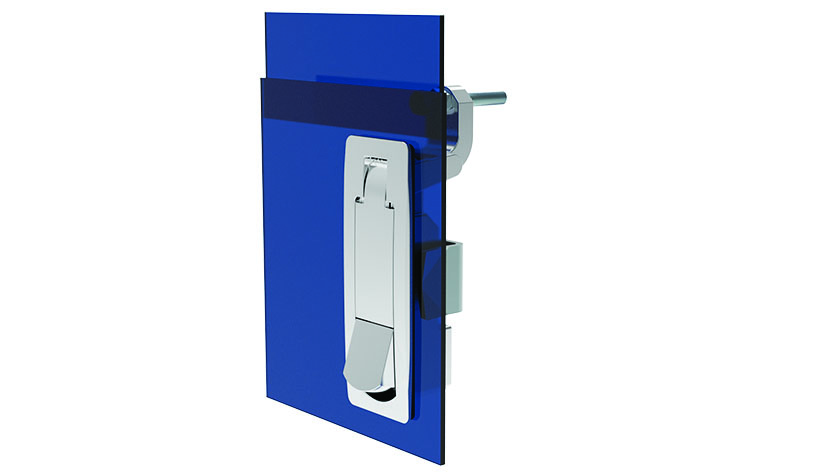

Compression Trigger Latch 86 x 25, Chrome

Informations sur le produit "Compression Trigger Latch 86 x 25, Chrome"

Color:
Handle: Chrome
Trigger: Chrome
Housing: Chrome
Seals: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast
Trigger: Zinc die-cast
Housing: Zinc die-cast
Mounting bracket: Steel
Screws: Steel
Arm: Zinc die-cast
Nut: Steel
Seals: Rubber NBR

Surface:
Handle: Chrome plated
Trigger: Chrome plated
Housing: Chrome plated
Mounting bracket: Zinc plated
Screws: Zinc plated
Arm: Zinc plated
Nut: Zinc plated

Conditionnement:	10 pièces
Poids (g):	224.5
ECLASS 6.0:	23199090
ECLASS 7.0:	23199090
ECLASS 8.0:	23199090
ECLASS 9.0:	23199090
ECLASS 10.0:	23199090
ECLASS 11.0:	23199090
ECLASS 12.0:	23199090
ECLASS 13.0:	23199090
Code douanier exportation:	83014090
Code ERP:	121626

Variantes

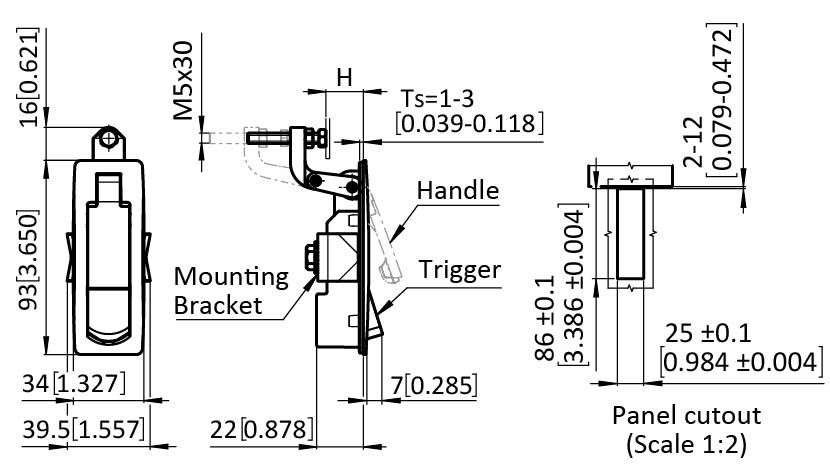

Réf. produit	H (mm)	Insert type	Trigger	Arm
0810060	1 - 24	Non-locking	Raised	Short
0810061	1 - 24	Non-locking	Flush	Short
0810062	1 - 24	Key locking (Keyed FH751)	Raised	Short
0810063	1 - 24	Key locking (Keyed FH751) with shutter	Raised	Short
0810068	23 - 46	Non-locking	Raised	Long
0810069	23 - 46	Non-locking	Flush	Long
0810070	23 - 46	Key locking (Keyed FH751)	Raised	Long
0810071	23 - 46	Key locking (Keyed FH751) with shutter	Raised	Long
0811076	1 - 24	Phillips Insert	Raised	Short
0811077	1 - 24	Female hexagon 4.5 mm	Raised	Short
0811080	23 - 46	Phillips Insert	Raised	Long
0811081	23 - 46	Female hexagon 4.5 mm	Raised	Long
