Connecteur d'angle 40, 3D avec passage de câbles (Kit)

Informations sur le produit "Connecteur d'angle 40, 3D avec passage de câbles (Kit)"

Couleur:
Cache : gris ≈ RAL 7042

Pays de livraison:
Monde entier

Description:

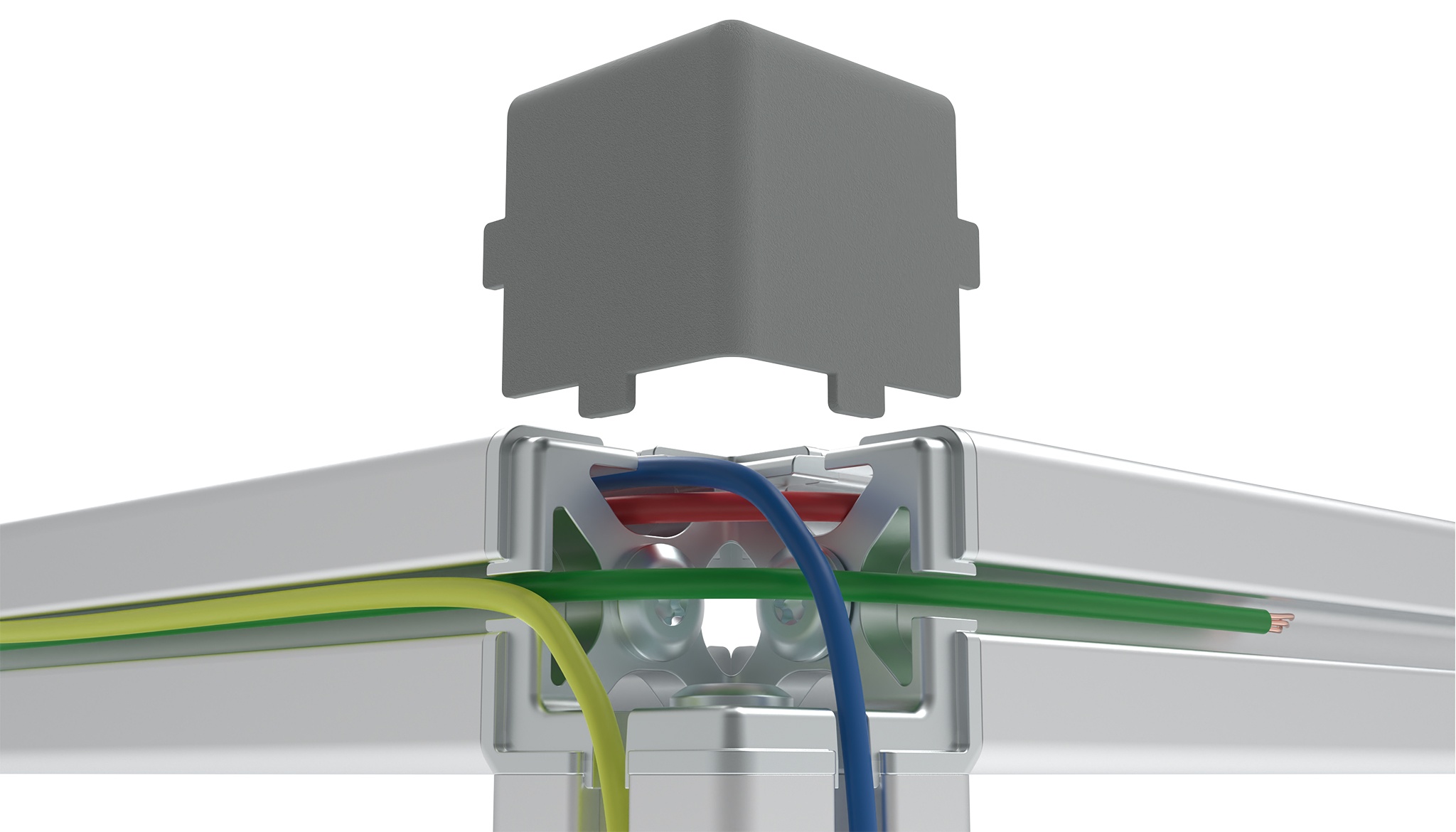

To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables;
With cover cap to cover the open side of the corner connector

Material:
Corner connector: Zinc die-cast
Cover cap: Plastic PA, glass ball reinforced
Self forming screw: Steel

Set:
1 corner connector 40, 3D with cable passage
1 cover cap
3 self forming screws - S7 x 22

Options:
Autres matières, autres surfaces, autres couleurs sur demande

Surface:
Corner connector: Zinc plated
Self forming screw: Zinc plated

Tip:

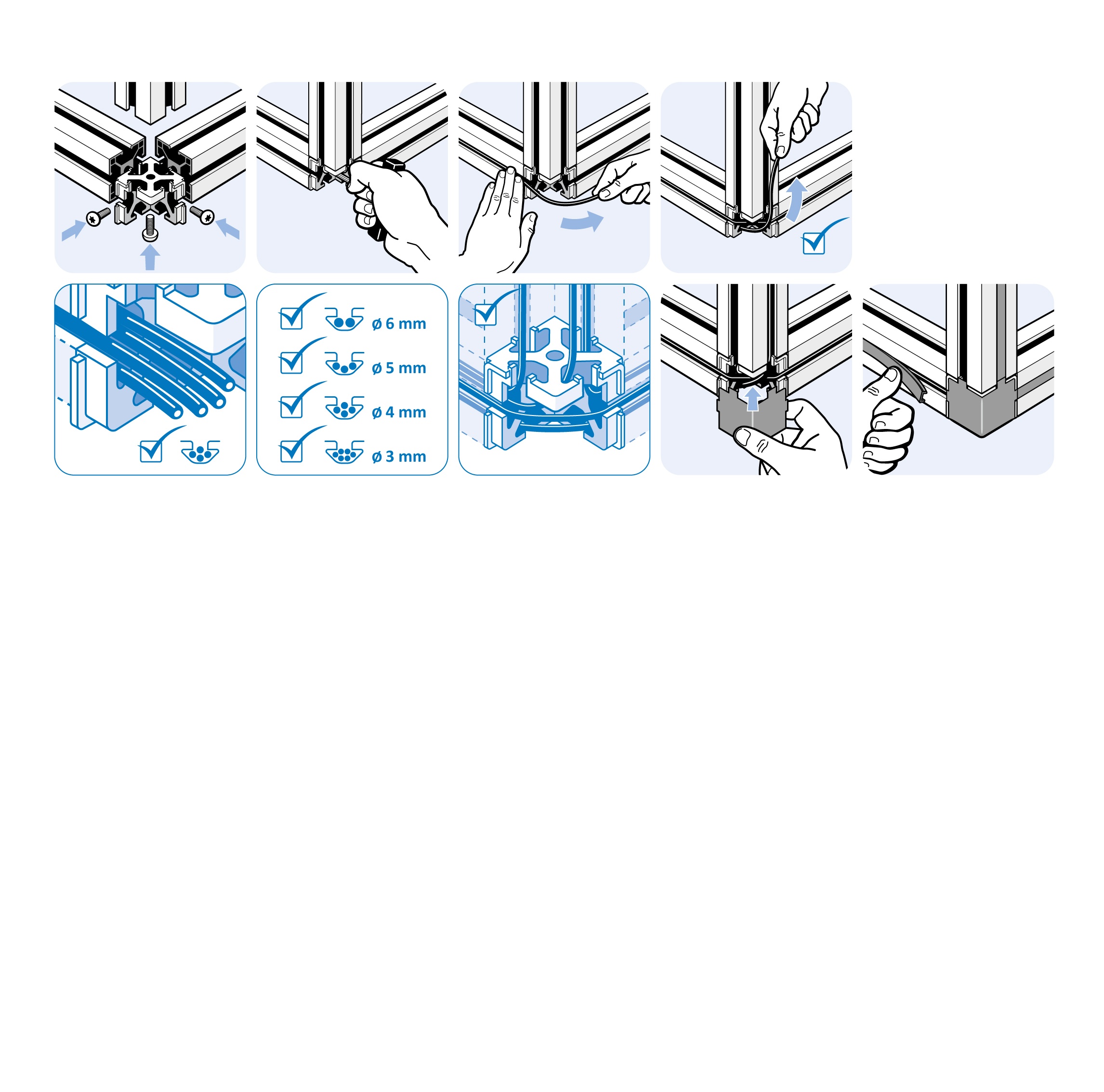

The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter:
Max. 6 cabels with an outer diameter of 3 mm
Max. 4 cabels with an outer diameter of 4 mm
Max. 3 cabels with an outer diameter of 5 mm
Max. 2 cabels with an outer diameter of 6 mm

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Conditionnement: 1 Kit

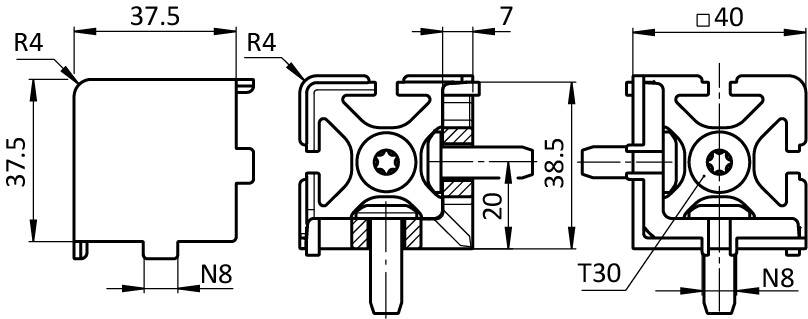

Modèle: Fonderie zamac, profile 40
Poids (g): 121.5

Variantes

ID de produit Profilé Rainure N (mm)
093WC407N08VS01 I 8
