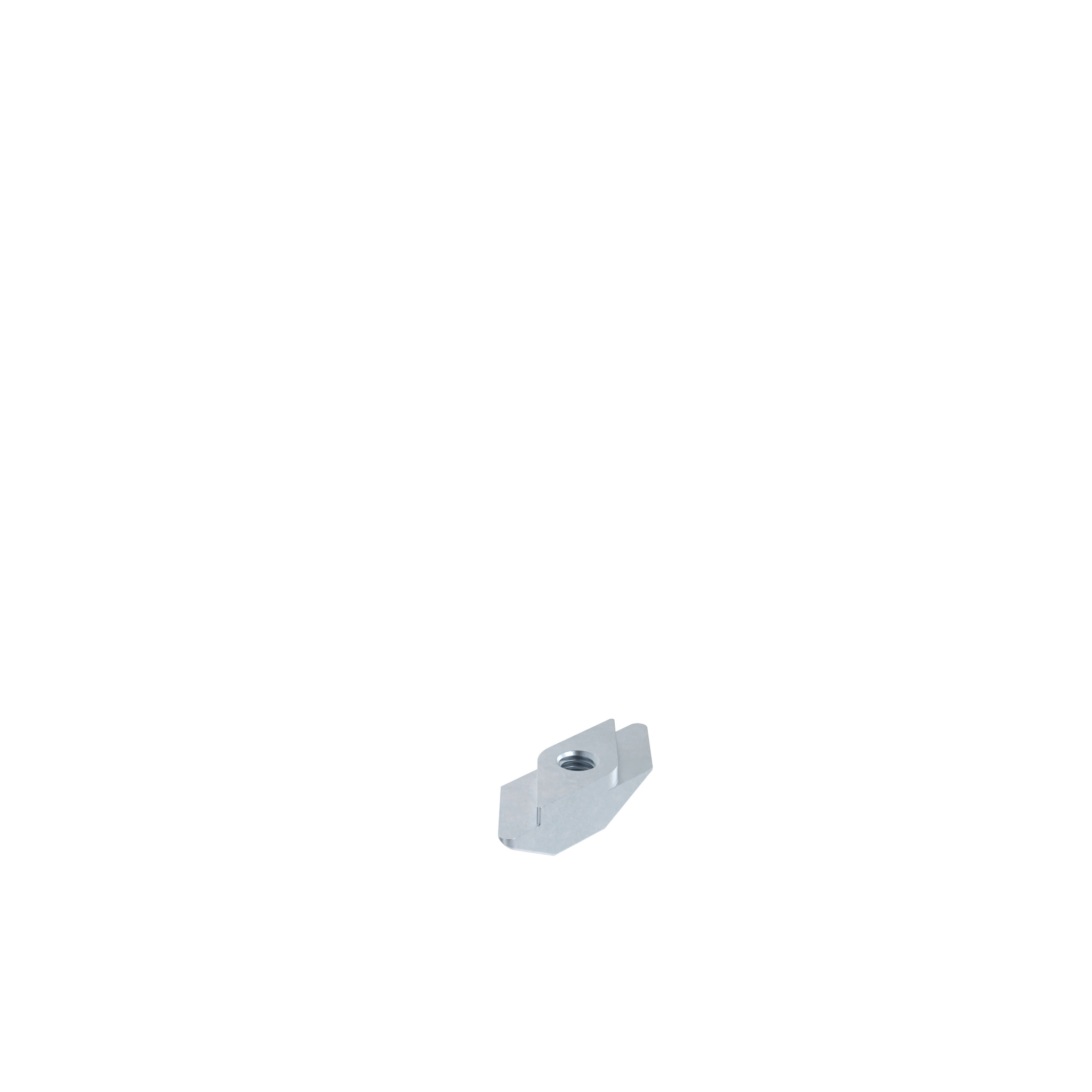

Ecrou losange

Informations sur le produit "Ecrou losange"

Pays de livraison:
Monde entier

Description:
Pour fixer un composant sur un profilé, facile à insérer, reste mobile dans la rainure

Matériau:
Fonderie zamac

Etat de surface:
Brute
Conditionnement: 100 pièces
Modèle: R8, fonderie Zamac
Poids (g): 4.0
ECLASS 6.0: 23110890
ECLASS 7.0: 23110810
ECLASS 8.0: 23110810
ECLASS 9.0: 23110810
ECLASS 10.0: 23110810
ECLASS 11.0: 23110716
ECLASS 12.0: 23110716
ECLASS 13.0: 23110716
Zolltarifnummer: 79070000900
Code douanier exportation: 79070000
Code ERP: 103307

Variantes

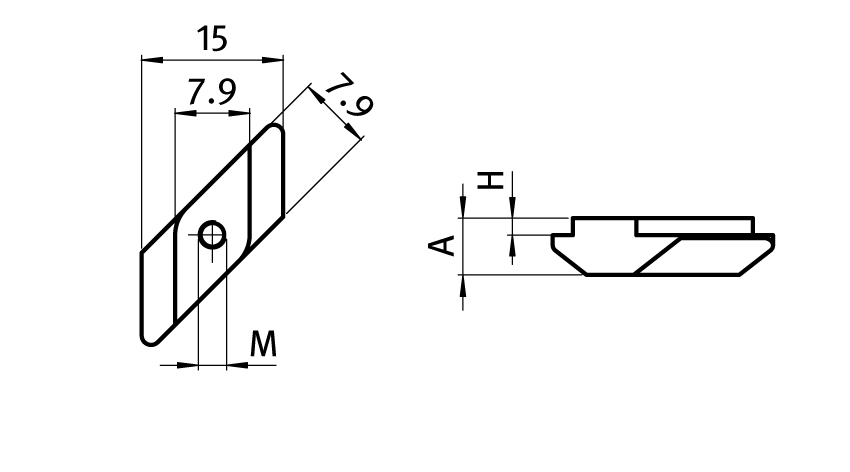

Réf. produit H (mm) Profilé A (mm) M
096R080318Z 1.8 B 6.0 M3
096R080330Z 3.0 I 7.7 M3
096R080418Z 1.8 B 6.0 M4
096R080430Z 3.0 I 7.7 M4
096R080518Z 1.8 B 6.0 M5
096R080530Z 3.0 I 7.7 M5

Téléchargements CAD

Certificats
