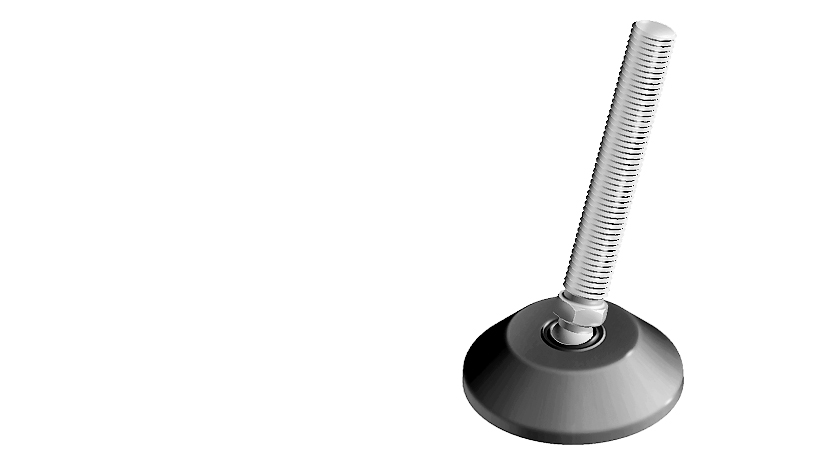

Embase trapézoïdale pour pieds à rotule, rotule 15

Informations sur le produit "Embase trapézoïdale pour pieds à rotule, rotule 15"

Couleur:
Noir

Pays de livraison:
Monde entier

Description:
Un pied à rotule pour positionnement robuste sur sols inégaux

Matériau:
Fonderie zamac

Options:
Autres surfaces, autres tailles, autres couleurs, patin anti-glisse collé ou vissé sur demande;
Pied assemblé en usine sur demande

Etat de surface:
Peint. poudre

Information:
Tige filetée compatible voir 098DM08025M et suivant,
Écrou compatible voir 4DIN439BM5M et suivant,
Patin anti-glisse compatible voir 098DG030,
Fixation au sol compatible voir 098BI060ZS
Modèle: Fonderie zamac
Conditionnement: 10 pièces
Code douanier exportation: 79070000
Poids (g): 109.0
Code ERP: 104066
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 79070000900

Variantes

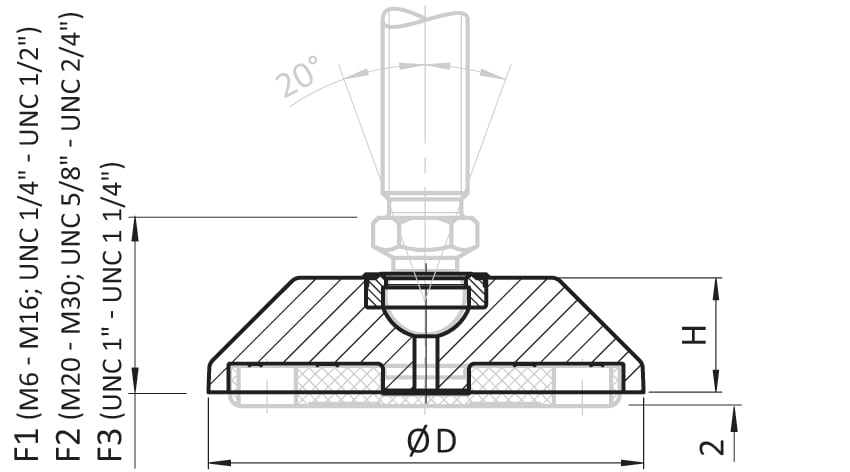

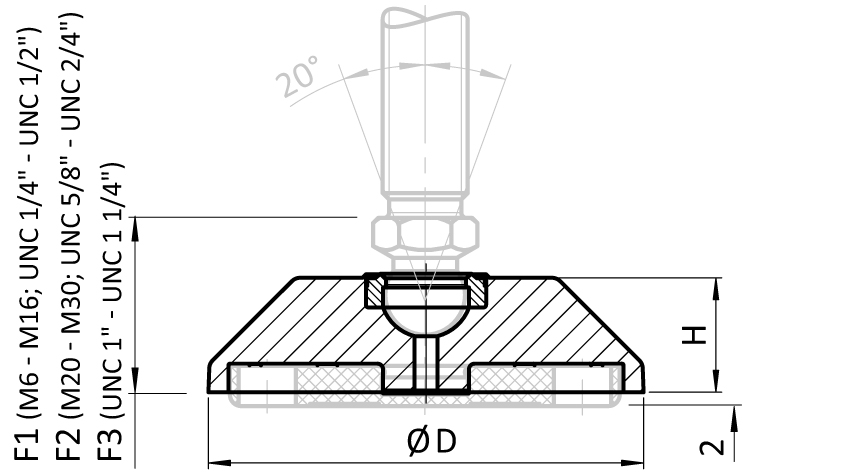

Réf. produit Version Embase Fmax (N) D (mm) F1 (mm) F2 (mm) F3 (mm) H (mm)
098DI060ZS Sans Patin anti-glisse 60 24500 59 29.5 32.5 33.5 18
098DI060ZSG Avec Patin anti-glisse 60 24500 59 29.5 32.5 33.5 18
098DI080ZS Sans Patin anti-glisse 80 29400 76 29.5 32.5 33.5 20
098DI080ZSG Avec Patin anti-glisse 80 29400 76 29.5 32.5 33.5 20
