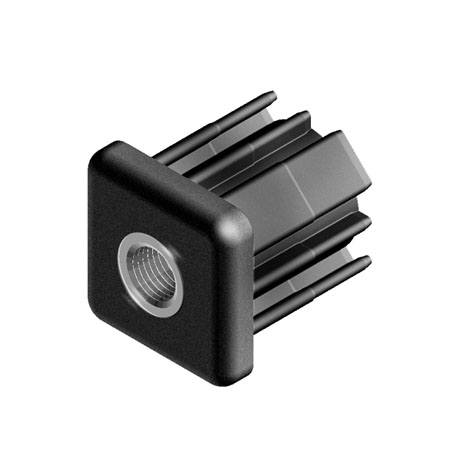

Embout avec insert taraudé pour tubes carrés 30 x 30

Informations sur le produit "Embout avec insert taraudé pour tubes carrés 30 x 30"

Couleur:
Noir

Pays de livraison:
Monde entier

Description:

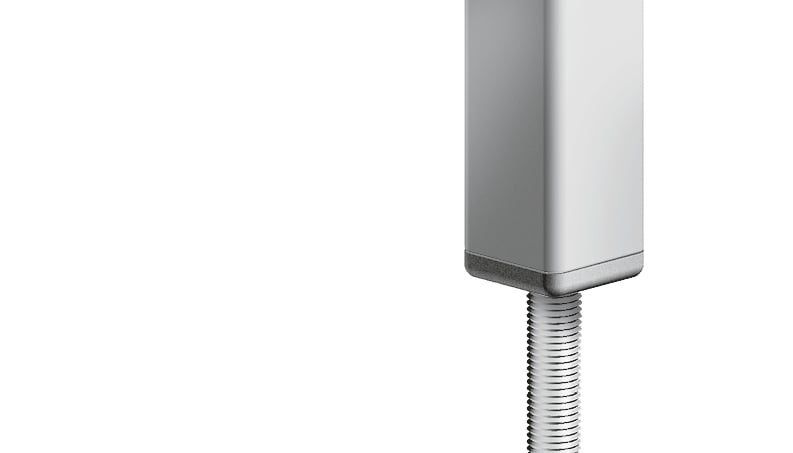

Pour associer un pied de nivellement à un profilé carré

Matériau:
Bague : plastique PA, renforcé fibre de verre
Insert fileté : laiton nickelé

Options:
Décharges électrostatiques ESD, autres tailles, autres couleurs sur demande

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23111190
(ECLASS 7.0): 23111190
(ECLASS 8.0): 23111190
(ECLASS 9.0): 23111190
(ECLASS 10.0): 23111190
(ECLASS 11.0): 23111190
(ECLASS 12.0): 23111190
(ECLASS 13.0): 23111190
Conditionnement: 10 pièces
Modèle: Plastique PA, avec brass insert fileté
Poids (g): 69.0

Variantes

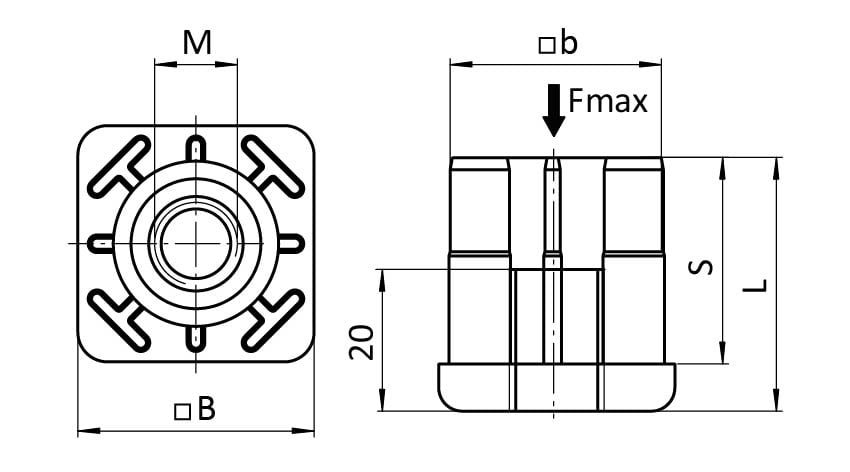

ID de produit Version S (mm) Fmax (N) L (mm) B (mm) b (mm) Tube Carré (mm) M
098V301508 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5
098V301510 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M10
098V301512 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M12
098V301514 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M14
098V301516 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M16
098V302008 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0
098V302010 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M10
098V302012 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M12
098V302014 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M14
098V302016 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M16
