Extended Housing Quarter Turn Lock 22.5 / 18, ZN Black

Informations sur le produit "Extended Housing Quarter Turn Lock 22.5 / 18, ZN Black"

Color:
Insert: Black
Housing: Black
Seals: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:

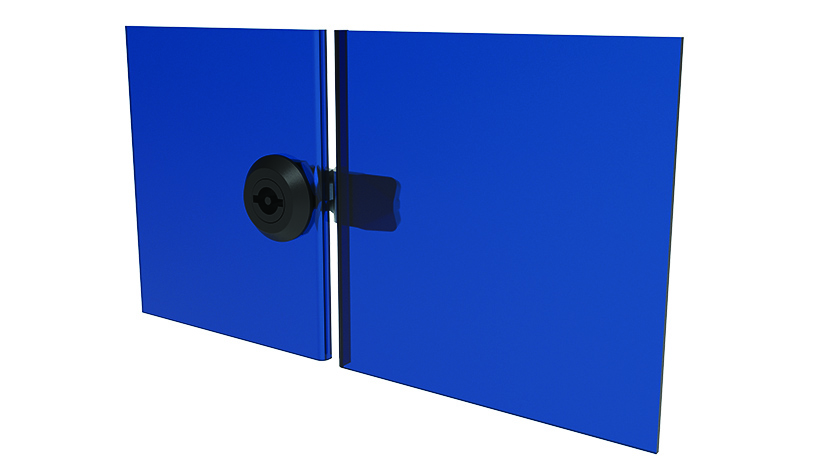

For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated
Housing: Powder coated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Conditionnement:	10 pièces
Code douanier exportation:	83014090
Modèle de porte:	Droite, gauche
Poids (g):	68.1
Code ERP:	139092
ECLASS 6.0:	23199090
ECLASS 7.0:	23199090
ECLASS 8.0:	23199090
ECLASS 9.0:	23199090
ECLASS 10.0:	23199090
ECLASS 11.0:	23199090
ECLASS 12.0:	23199090
ECLASS 13.0:	23199090
Zolltarifnummer:	83014090000

Variantes

Réf. produit	Insert type
0810729	Double bit 3.0 mm
0810737	Double bit 4.0 mm
0810745	Double bit 5.0 mm
0810753	Slotted recess 2 x 4
0810761	Slotted recess 2 x 4 coin proof
0810769	Triangular 7.0 mm
0810777	Triangular 8.0 mm
0810785	Square 7.0 mm
0810793	Square 8.0 mm
0810801	Square 7.0 mm with slotted recess
0810809	Square 8.0 mm with slotted recess
0810817	Square 8.0 mm female
0810825	Female hexagon 8.0 mm
0810833	Female hexagon 9.0 mm
0810841	Female hexagon 8.0 mm with 3 mm pin
0810849	Male hexagon 10.0 mm
0810857	Triangular 10.0 mm with M5 screw hole
