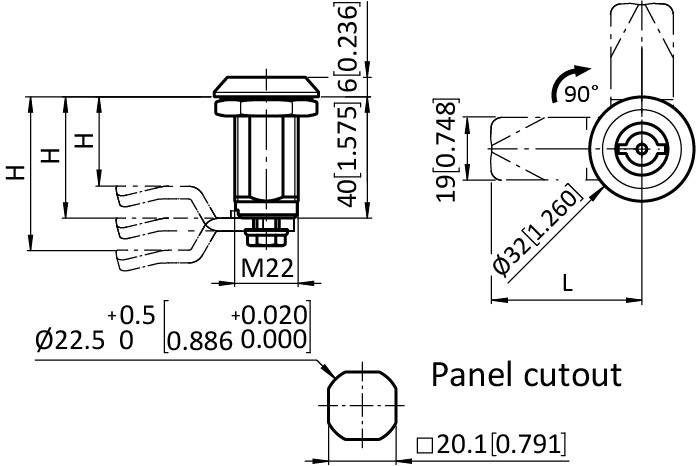

Extended Housing Quarter Turn Lock 22.5 / 40, SS

Informations sur le produit "Extended Housing Quarter Turn Lock 22.5 / 40, SS"

Couleur:
Joints : Noir

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:
For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes

Material:
Insert: Stainless steel SS316
Housing: Stainless steel SS316
Seals: Rubber NBR
Extender: Stainless steel SS316
Nut: Stainless steel SS316
Screw: Stainless steel SS316

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Conditionnement: 10 pièces
Modèle de porte: Droite, gauche
Poids (g): 127.8

Variantes

ID de produit Insert type
08101000 Triangular 10.0 mm with M5 screw hole
0810872 Double bit 3.0 mm
0810880 Double bit 4.0 mm
0810888 Double bit 5.0 mm
0810896 Slotted recess 2 x 4
0810904 Slotted recess 2 x 4 coin proof
0810912 Triangular 7.0 mm
0810920 Triangular 8.0 mm
0810928 Square 7.0 mm
0810936 Square 8.0 mm
0810944 Square 7.0 mm with slotted recess
0810952 Square 8.0 mm with slotted recess
0810960 Square 8.0 mm female
0810968 Female hexagon 8.0 mm
0810976 Female hexagon 9.0 mm
0810984 Female hexagon 8.0 mm with 3 mm pin
0810992 Male hexagon 10.0 mm
