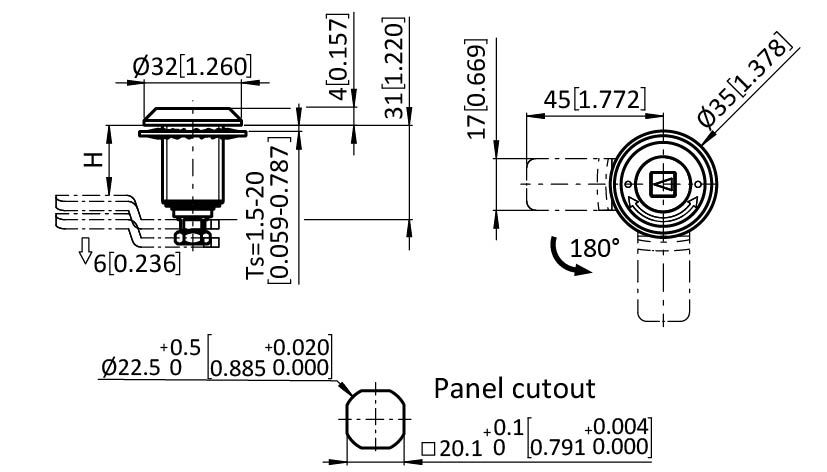

Large Compression Latch, 22.5 / 31, SS, Arrowhead with Indicator
Réf. produit :
0813130
Informations sur le produit "Large Compression Latch, 22.5 / 31, SS, Arrowhead with Indicator"
Couleur:
Joint : Noir
Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie
Description:

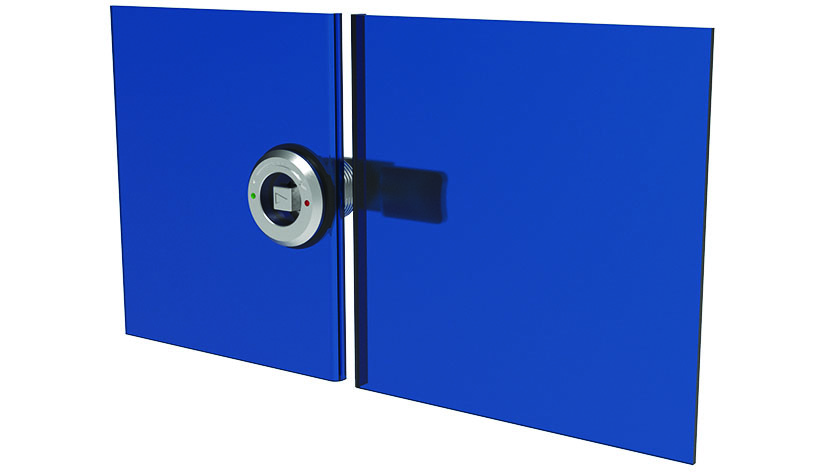

For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
Material:
Insert: Stainless steel SS316
Shaft: Stainless steel SS316
Retaining spring: Stainless steel SS440
Housing: Stainless steel SS316
Seal: Rubber NBR
Washer: Steel
Nut: Stainless steel SS316
Screw: Steel
Options:
IP65 / NEMA 4 sur demande
Surface:
Washer: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Joint : Noir
Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie
Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
Material:
Insert: Stainless steel SS316
Shaft: Stainless steel SS316
Retaining spring: Stainless steel SS440
Housing: Stainless steel SS316
Seal: Rubber NBR
Washer: Steel
Nut: Stainless steel SS316
Screw: Steel
Options:
IP65 / NEMA 4 sur demande
Surface:
Washer: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| (ECLASS 6.0): | 23199090 |
|---|---|
| (ECLASS 7.0): | 23199090 |
| (ECLASS 8.0): | 23199090 |
| (ECLASS 9.0): | 23199090 |
| (ECLASS 10.0): | 23199090 |
| (ECLASS 11.0): | 23199090 |
| (ECLASS 12.0): | 23199090 |
| (ECLASS 13.0): | 23199090 |
| Code ERP: | 139467 |
| Code douanier exportation: | 83014090 |
| Conditionnement: | 10 pièces |
| Poids (g): | 97.2 |
| Zolltarifnummer: | 83014090000 |
