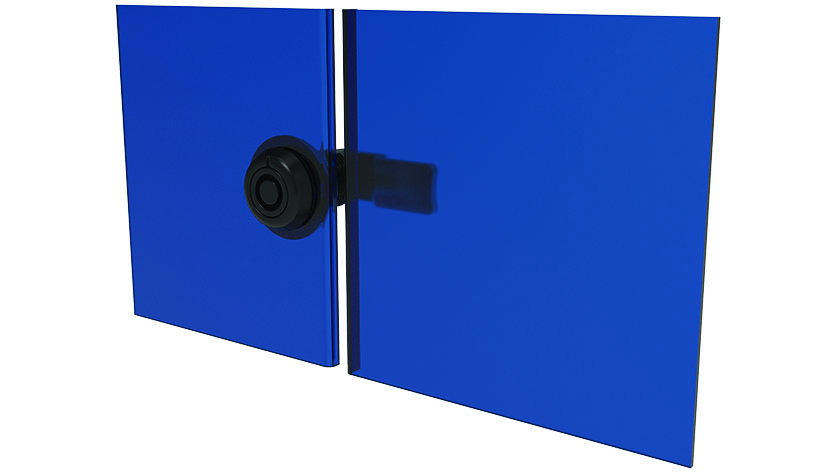

Large Compression Latch 22.5 / 32, ZN Black

Informations sur le produit "Large Compression Latch 22.5 / 32, ZN Black"

Color:
Insert: Black
Housing: Black
Seals: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Seals: Rubber NBR
Washer: Steel
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Washer: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Conditionnement: 10 pièces
Modèle de porte: Droite, gauche
Poids (g): 86.5

Variantes

ID de produit Insert type
0810488 Tubular
0810489 Double bit 4.0 mm
0810490 Triangular 7.0 mm
0810491 Triangular 8.0 mm
0810492 Square 7.0 mm
0810493 Square 8.0 mm
0810494 Slotted recess
0810495 Female hexagon 8.0 mm
0810496 Male hexagon 10.0 mm
0810497 Wing knob
