Guides de porte coulissantes

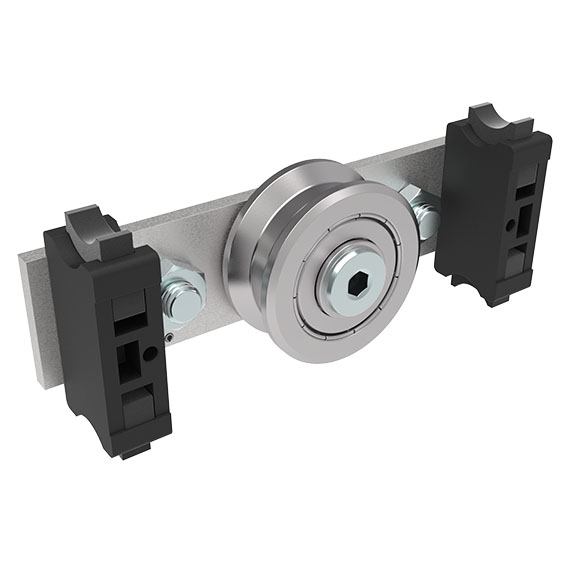

Bearing Kit 1 Roller Shaft Ø 14 for C-slide Profile I (Set)
Color:Wiper and lubricators: BlackPays de livraison:Monde entierDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA128S01

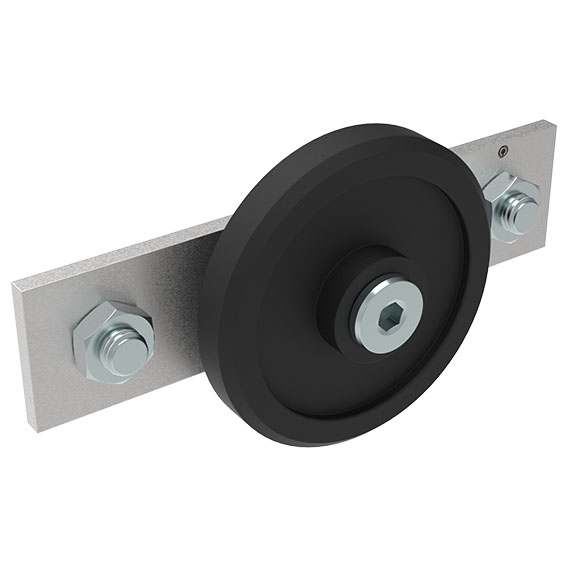

Bearing Kit PA 1 Roller Slot Ø 14 for C-slide Profile I (Set)
Couleur:Galet : noirPays de livraison:Monde entierDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pinSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14 see 093CAU081A128S01

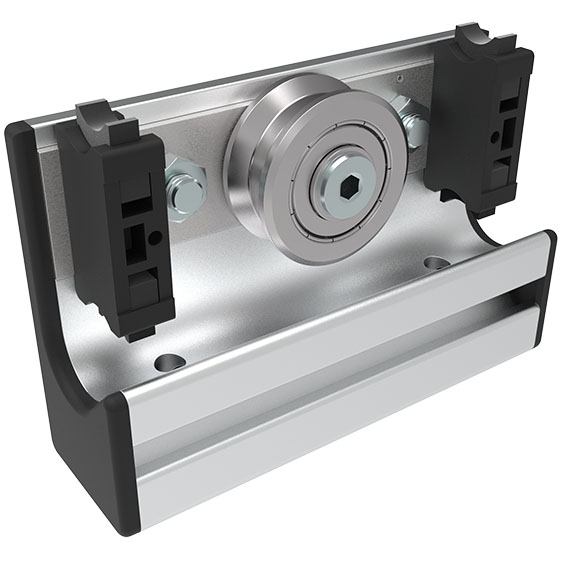

Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I
Color:Wiper and lubricators: Black Cover caps: BlackPays de livraison:Monde entierDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc plated Profile: Anodized

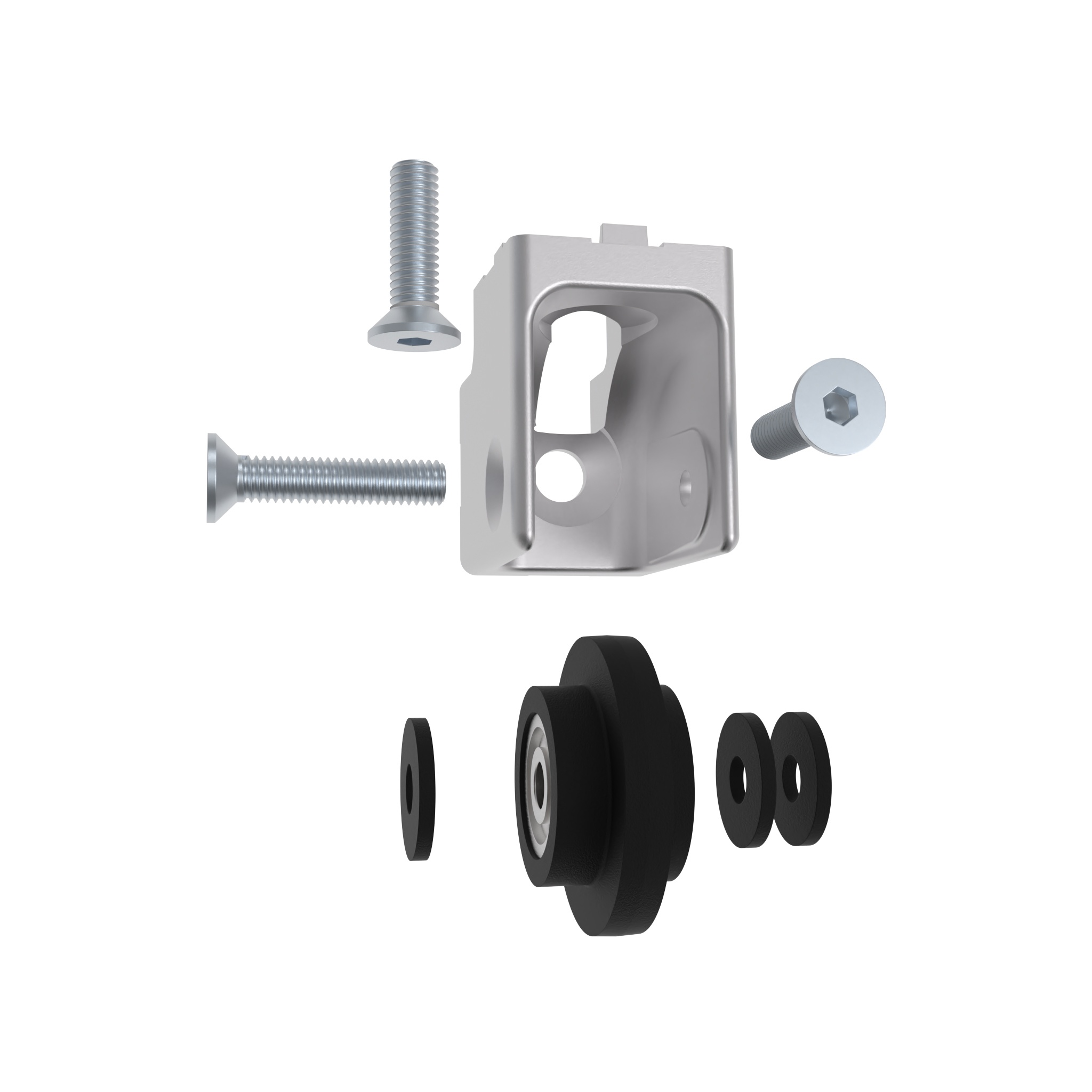

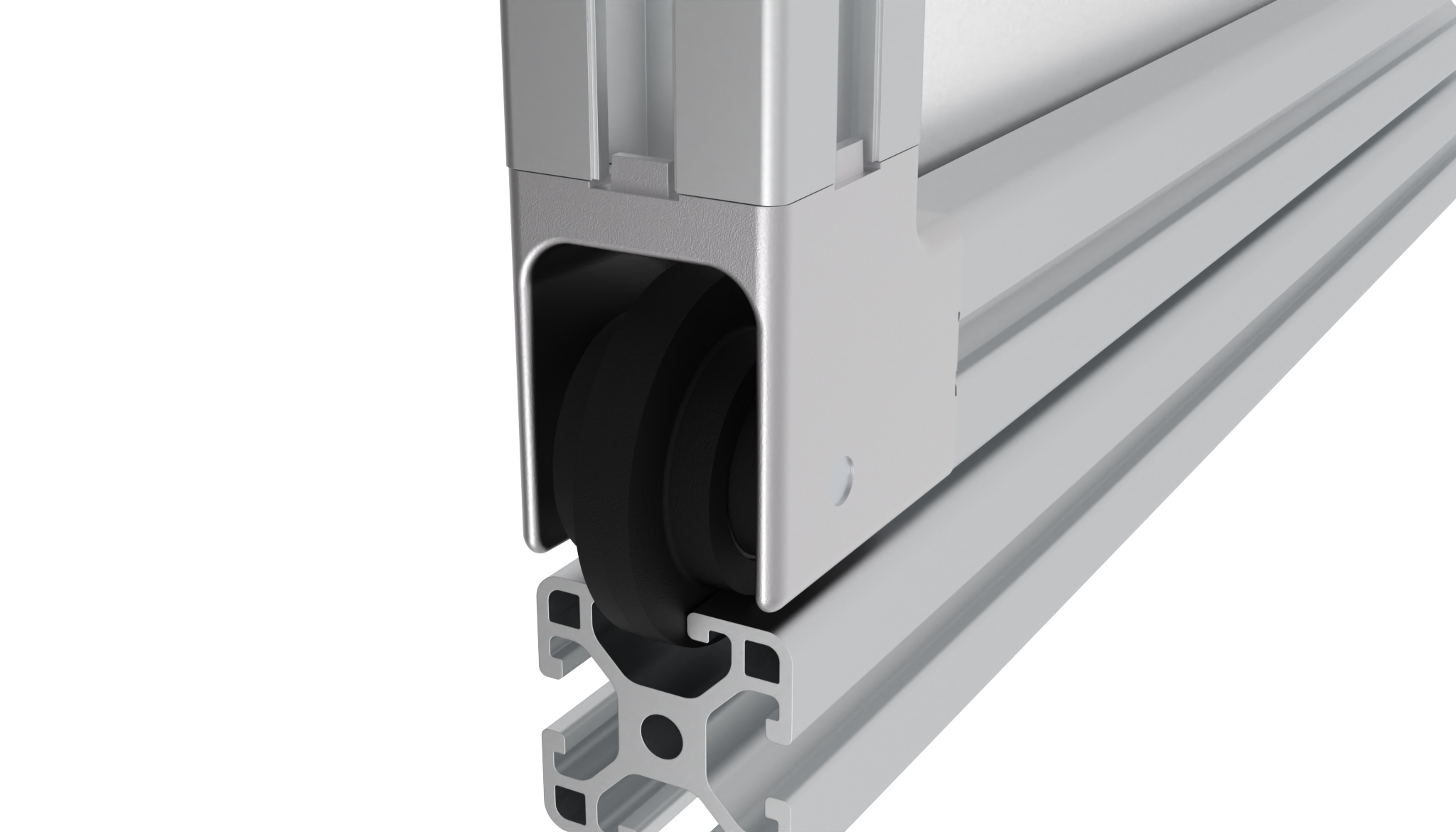

Kit de guides de porte coulissante 30
Couleur:Galet : noir Entretoise : naturelPays de livraison:Monde entierDescription:Pour connecter deux profilés aluminium à angle droit et pour guider une porte coulissante hor. ou vert. dans la rainure d'un profilé aluminium, avec roulement à billes ; les entretoises peuvent être changées de position : pour un jeu de 2 mm à 4mm entre les portes (jusqu'à 3) en enfiladeMatériau:Boîtier : fonderie d'aluminium Galet : plastique PA, renforcé de billes de verre Entretoise : plastique PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 20 (for profile) 3 spacersEtat de surface:Boîtier : brute

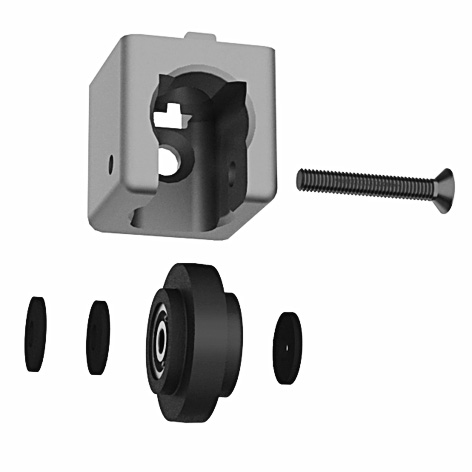

Kit de guides de porte coulissante 40 / 45
Couleur:Galet : noir Entretoise : naturelPays de livraison:Monde entierDescription:Pour connecter deux profilés aluminium à angle droit et pour guider une porte coulissante hor. ou vert. dans la rainure d'un profilé aluminium, avec roulement à billes ; les entretoises peuvent être changées de position : pour un jeu de 2 mm à 4mm entre les portes (jusqu'à 3) en enfiladeMatériau:Boîtier : fonderie d'aluminium Galet : plastique PA, renforcé de billes de verre Entretoise : plastique PASet 1:1 casing, 1 roller, 1 screw as axle, 3 spacersSet 2:1 casing, 1 roller, 1 screw as axle, 4 spacersSet 3:1 casing, 1 roller, 1 screw as axle, 4 spacers 2 self-forming screws S12 x 30 - hexalobular socket T50Etat de surface:Boîtier : brute
Sliding Door Guide for Clamp Profile
Pays de livraison:Monde entierDescription:Pour montage de portes coulissantesMatériau:Guide de porte coulissante : plastique POM Mécanisme : acier zinguéSet:2 Sliding door guides left 2 Sliding door guides rightEtat de surface:Mécanisme : zinguéInformation:Ressort clip voir 092090

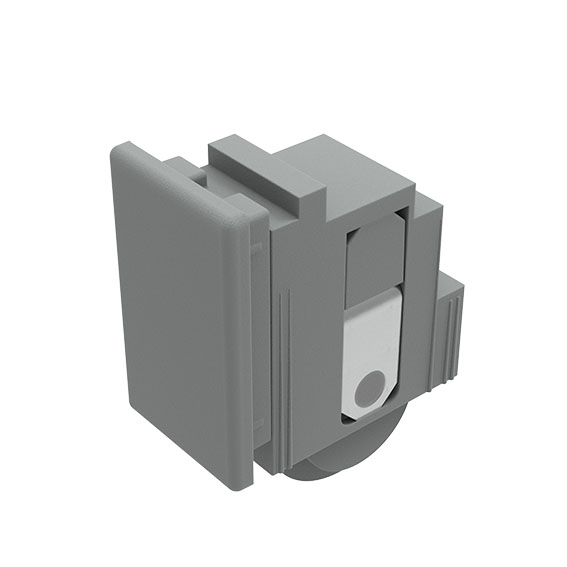

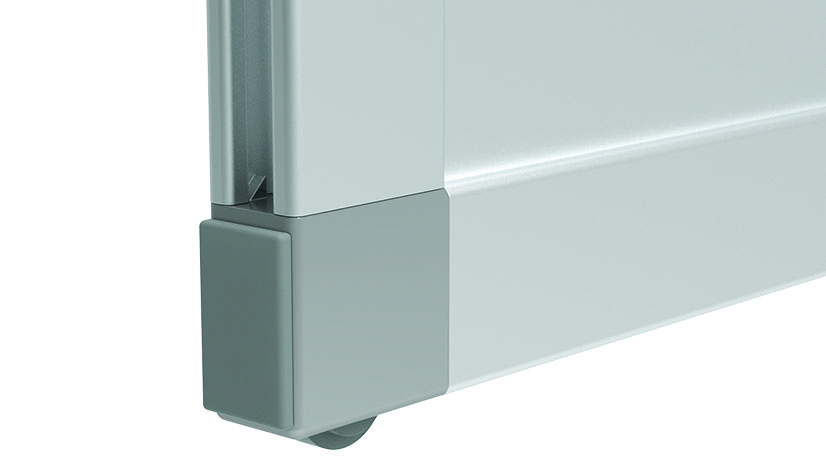

Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set)
Color:Guide insert: Gray ≈ RAL 7042Pays de livraison:Monde entierDescription:To guide lift or sliding doors in the slot of an aluminum profile, to insert in the frame corner connector 18 x 32 for clamp profileMaterial:Guide insert: Plastic PA, glass fiber reinforcedSet:1 guide insert, 1 cover cap, 1 stopperTip:Compatible Frame Corner Connector 18 x 32 for Clamp Profile (Set) see 093WWC18321N08S01

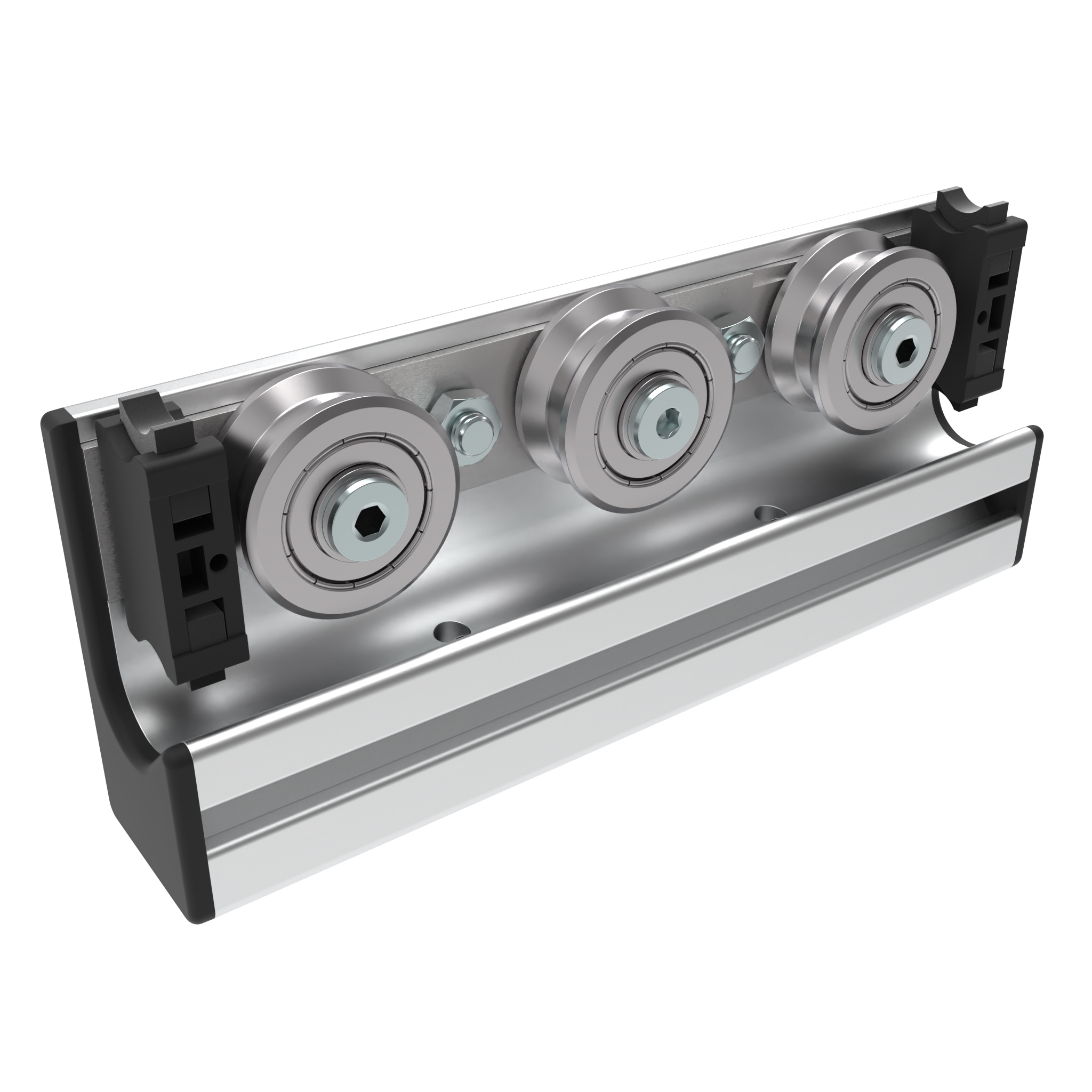

Unité de roulement 3 galets acier pour colonne Ø 14 pour profilé I rail-C
Color:Wiper and lubricators: Black Cover caps: BlackPays de livraison:Monde entierDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Wood screws: Zinc plated Profile: Anodized

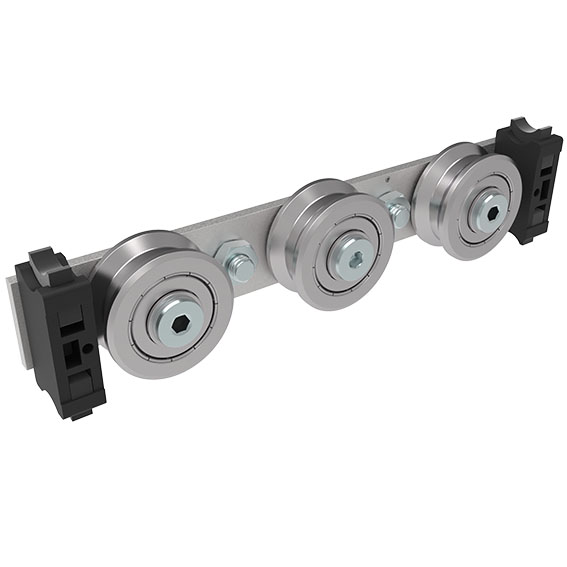

Unité de roulement 3 galets acier pour colonne Ø 14 profilé I glissière-C (Kit)
Color:Wiper and lubricators: BlackPays de livraison:Monde entierDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel rollers with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:3 rollers 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 2 threaded sleeve - M8 2 press nuts - M8 1 excentric screw M8 1 adjusting washer - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA208S01

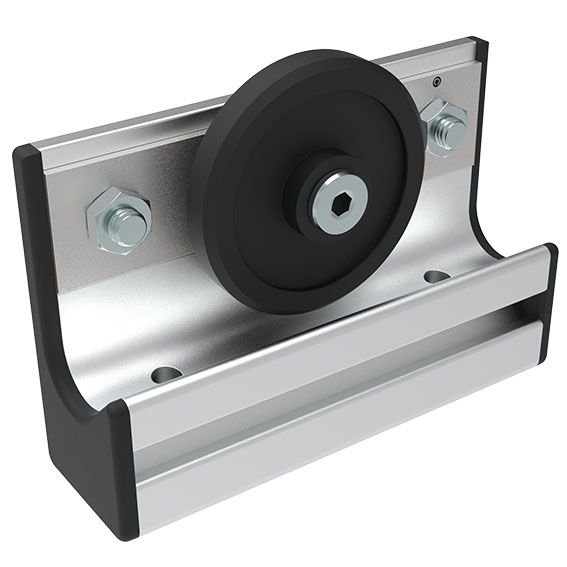

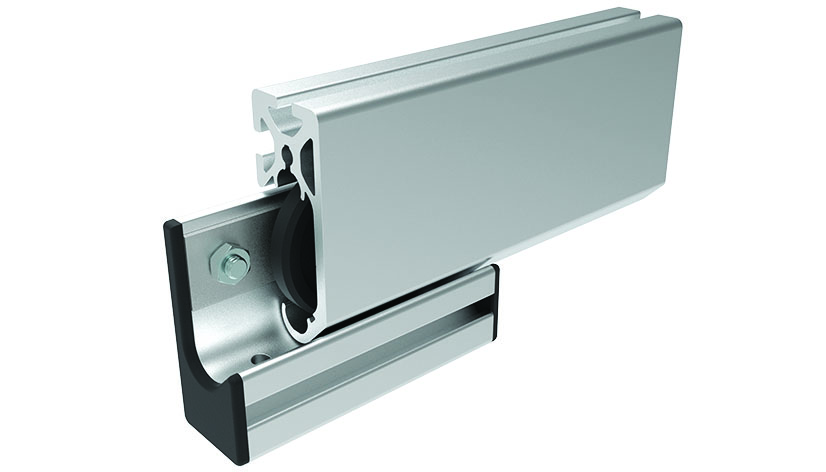

Unité de roulement PA 1 Galet pour profilé I rail-C rainure Ø 14
Color:Roller: Black Cover caps: BlackPays de livraison:Monde entierDescription:To build sliding doors To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Profile: Anodized
