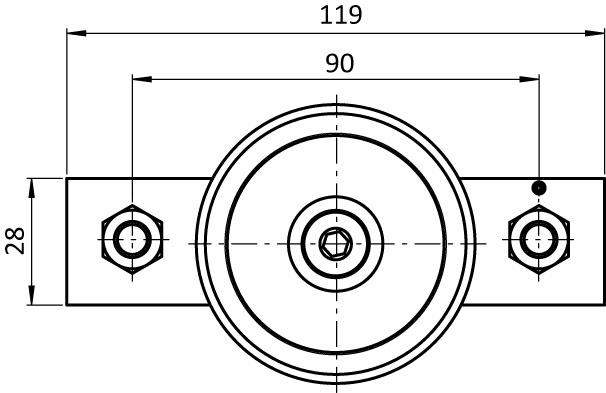

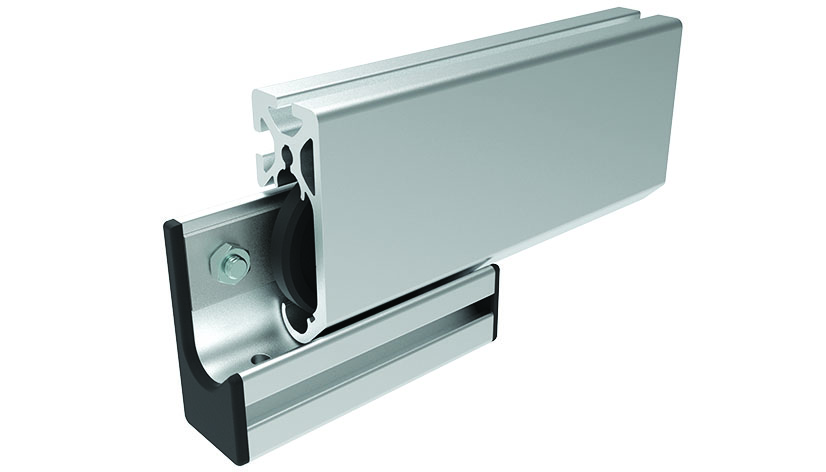

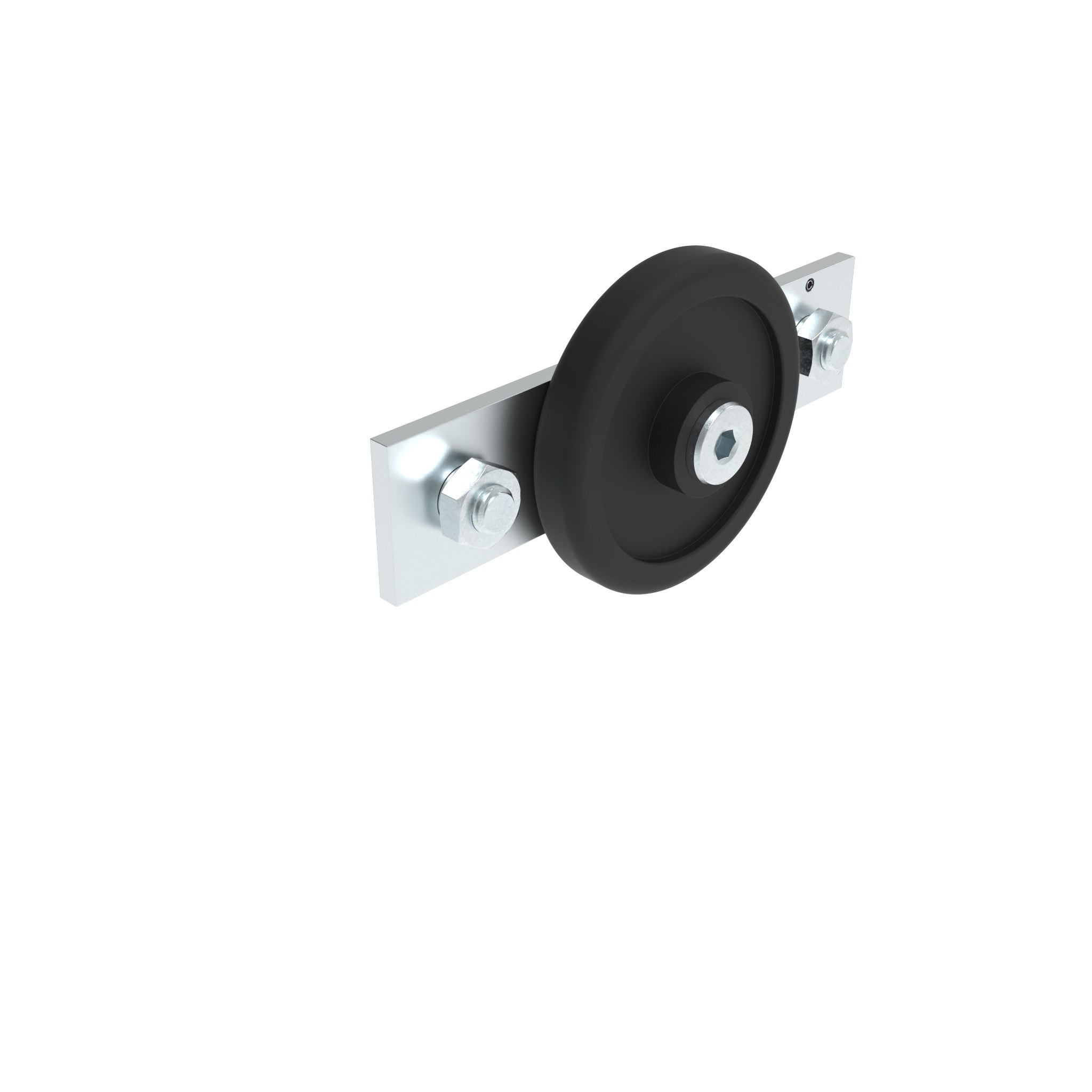

Bearing Kit PA 1 Roller Slot Ø 14 for C-slide Profile I (Set)
0,00 €
For the construction of bearing units, assembly with machining to C-slide profile I
To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mm
Roller: Plastic PA
Carrier plate: Steel
Screws: Steel
Threaded sleeve: Steel
Press nuts: Steel
Tension pin: Steel
Surface:
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeve: Zinc plated
Press nuts: Zinc plated
Couleur:
Galet : noir
Set:
1 roller
1 carrier plate
3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16
1 threaded sleeve - M8
2 press nuts - M8
1 tension pin
Tip:
Compatible Cover Cap for C-slide Profile I (Set) see 091401S01
Ready Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14 see 093CAU081A128S01
Pays de livraison:
Monde entier
| Conditionnement: | 1 pièce |
|---|---|
| Modèle: | Pré-assemblé, plastique PA |
| Poids (g): | 171.7 |
| Code ERP: | 146943 |
Portraits de produits
Classification
- Zolltarifnummer
- 84832000000
- Code douanier exportation
- 84832000
