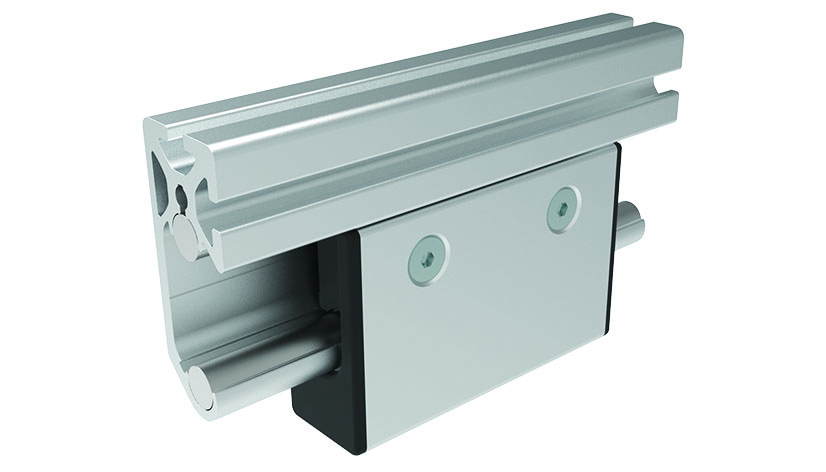

Bearing Kit 1 Roller Shaft Ø 14 for C-slide Profile I (Set)
0,00 €
For the construction of bearing units, assembly with machining to C-slide profile I
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm
Roller: Steel
Carrier plate: Steel
Screws: Steel
Threaded sleeve: Steel
Press nuts: Steel
Tension pin: Steel
Wiper and lubricators: Plastic PA / felt / spring steel
Wood screws: Steel
Surface:
Roller: Zinc plated
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeve: Zinc plated
Press nuts: Zinc plated
Tension pin: Zinc plated
Wood screws: Zinc plated
Color:
Wiper and lubricators: Black
Set:
1 roller
1 carrier plate
3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16
1 threaded sleeve - M8
2 press nuts - M8
1 tension pin
2 wiper and lubricators
2 wood screws - 3.5 x 20
Tip:
Compatible Cover Cap for C-slide Profile I (Set) see 091401S01
Ready Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA128S01
Pays de livraison:
Monde entier
| Conditionnement: | 1 pièce |
|---|---|
| Modèle: | Pré-assemblé, acier |
| Poids (g): | 155.6 |
| Code ERP: | 146942 |
