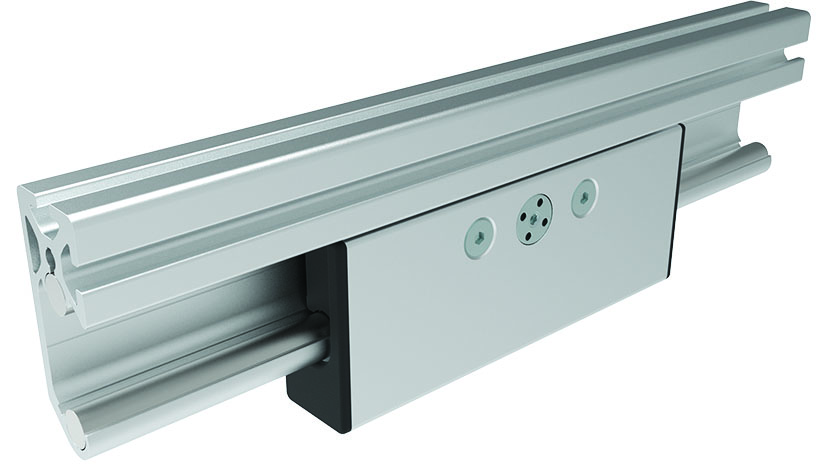

Unité de roulement 3 galets acier pour colonne Ø 14 pour profilé I rail-C
Prix régulier :
0,00 €
Réf. produit :
093CIUD141SA208S01
Conditionnement:
1 pièce
Description:
To build sliding doors
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm

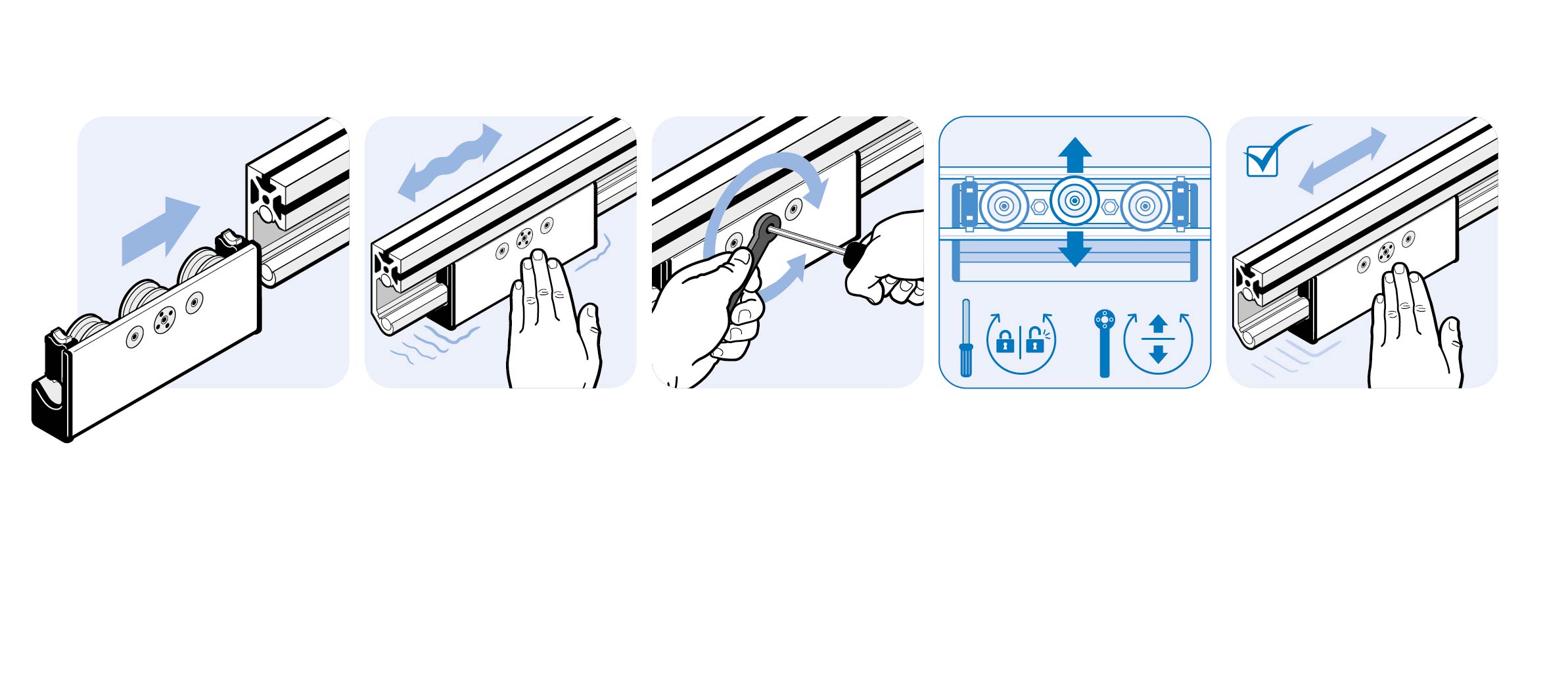

To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer
To build sliding doors
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm
To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer
Material:
Rollers: Steel
Carrier plate: Steel
Screws: Steel
Threaded sleeves: Steel
Press nuts: Steel
Excentric screw: Steel
Adjusting washer: Steel
Wiper and lubricators: Plastic PA / felt / spring steel
Wood screws: Steel
Profile: Aluminum
Cover caps: Plastic PA, glass fiber reinforced
Surface:
Rollers: Zinc plated
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeves: Zinc plated
Press nuts: Zinc plated
Excentric screw: Zinc plated
Adjusting washer: Zinc plated
Wood screws: Zinc plated
Profile: Anodized
Color:
Wiper and lubricators: Black
Cover caps: Black
Pays de livraison:
Monde entier
Rollers: Steel
Carrier plate: Steel
Screws: Steel
Threaded sleeves: Steel
Press nuts: Steel
Excentric screw: Steel
Adjusting washer: Steel
Wiper and lubricators: Plastic PA / felt / spring steel
Wood screws: Steel
Profile: Aluminum
Cover caps: Plastic PA, glass fiber reinforced
Surface:
Rollers: Zinc plated
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeves: Zinc plated
Press nuts: Zinc plated
Excentric screw: Zinc plated
Adjusting washer: Zinc plated
Wood screws: Zinc plated
Profile: Anodized
Color:
Wiper and lubricators: Black
Cover caps: Black
Pays de livraison:
Monde entier
| Conditionnement: | 1 pièce |
|---|---|
| Modèle: | Pré-assemblé, acier |
| Poids (g): | 801.0 |
| Code ERP: | 147275 |
Portraits de produits
Classification
- Zolltarifnummer
- 84832000000
- Code douanier exportation
- 84832000
Certificats
