Unité de roulement 3 galets acier pour colonne Ø 14 profilé I glissière-C (Kit)
0,00 €

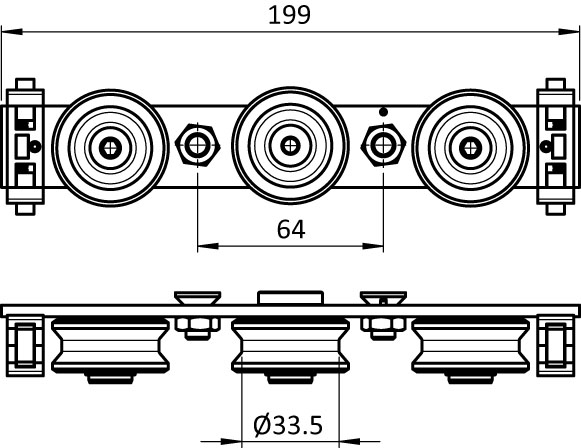

For the construction of bearing units, assembly with machining to C-slide profile I
To linearly guide loads, steel rollers with ball bearings runs directly on shaft Ø 14 mm

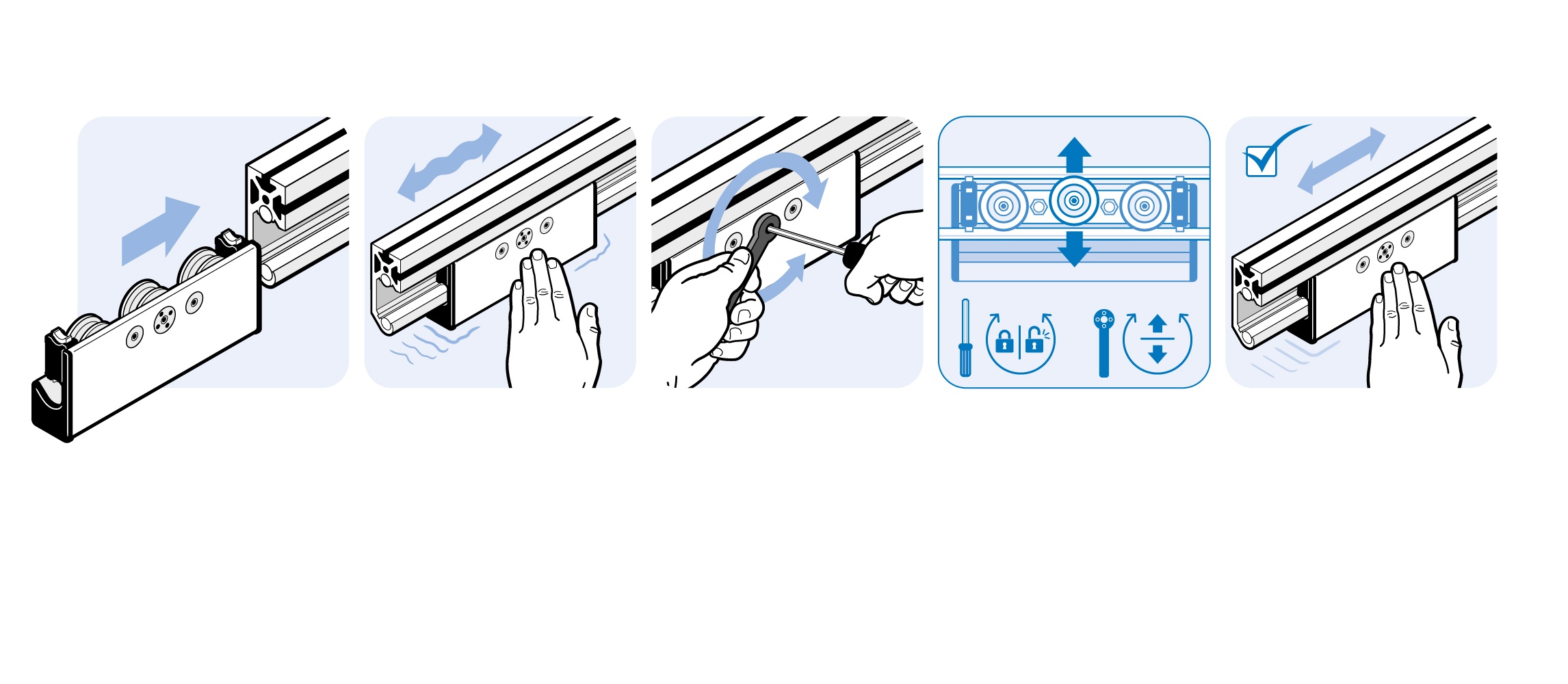

To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer
Rollers: Steel
Carrier plate: Steel
Screws: Steel
Threaded sleeves: Steel
Press nuts: Steel
Excentric screw: Steel
Adjusting washer: Steel
Tension pin: Steel
Wiper and lubricators: Plastic PA / felt / spring steel
Wood screws: Steel
Surface:
Rollers: Zinc plated
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeves: Zinc plated
Press nuts: Zinc plated
Excentric screw: Zinc plated
Adjusting washer: Zinc plated
Tension pin: Zinc plated
Wood screws: Zinc plated
Color:
Wiper and lubricators: Black
Set:
3 rollers
1 carrier plate
3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16
2 threaded sleeve - M8
2 press nuts - M8
1 excentric screw M8
1 adjusting washer - M8
1 tension pin
2 wiper and lubricators
2 wood screws - 3.5 x 20
Tip:
Compatible Cover Cap for C-slide Profile I (Set) see 091401S01
Ready Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA208S01
Pays de livraison:
Monde entier
| Conditionnement: | 1 pièce |
|---|---|
| Modèle: | Pré-assemblé, acier |
| Poids (g): | 274.2 |
| Code ERP: | 146939 |
