Monorail connecteur à 45° pour jambes de force du poteau (Kit)
0,00 €
Pour le montage de jambes de force pour poteaux portique sur pan 45° des monorails FIFO 40
Aluminum

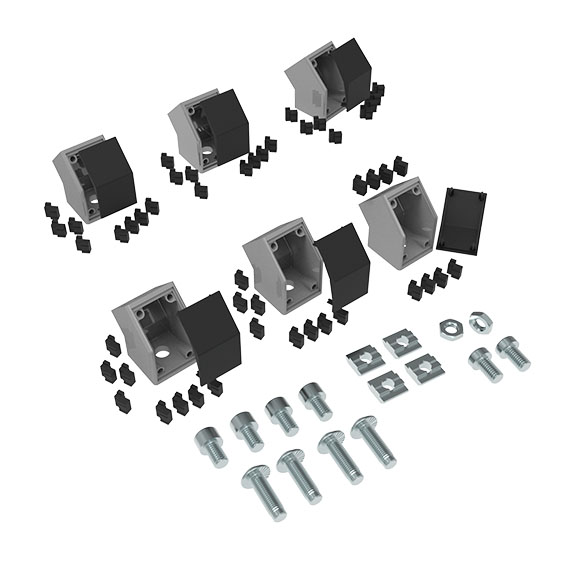

Kit:

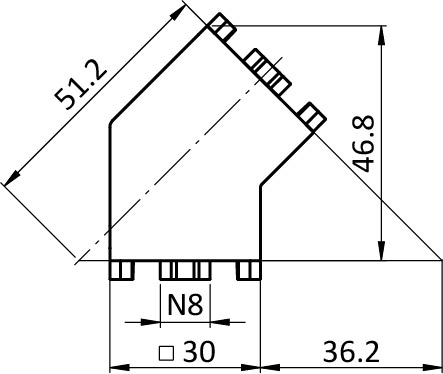

6 jonctions angulaires 45° 30 x 30,
4 vis DIN EN ISO 4762 (DIN 912) - M8 x 12,
4 écrous pour rainure en T M8,
4 vis autotaraudeuses – S8 x 25,
2 vis DIN EN ISO 4762 (DIN 912) - M8 x 14,
2 écrous hexagonaux DIN EN ISO 4035 (DIN 439) - M8
Information:
Rail monorail FIFO compatible, voir 02082PO.1200
Pays de livraison:
Monde entier
| Conditionnement: | 1 pièce |
|---|---|
| Modèle: | Pour monorail FIFO 40 |
| Poids (g): | 365.0 |
| Code ERP: | 161417 |
Classification
- ECLASS 6.0
- 21070390
- ECLASS 7.0
- 21079290
- ECLASS 8.0
- 21079290
- ECLASS 9.0
- 21070392
- ECLASS 10.0
- 21070392
- ECLASS 11.0
- 21070492
- ECLASS 12.0
- 21070492
- ECLASS 13.0
- 21070492
- Zolltarifnummer
- 76169990990
- Code douanier exportation
- 76169990
Certificats
Accessoires adaptés

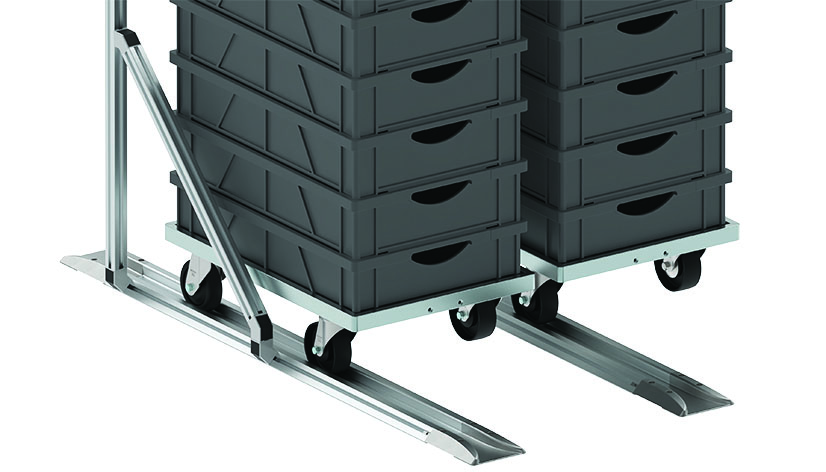

Description:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMatériau:AluminumEtat de surface:AnodiséTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBPays de livraison:Monde entier
