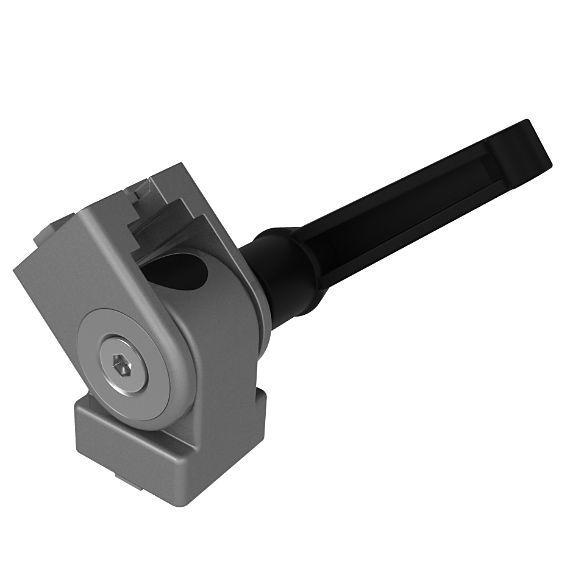

Pivot Joint B 20 with Locking Lever
Prix régulier :
0,00 €
Réf. produit :
093GABF20AN06
Conditionnement:
10 pièces
Informations sur le produit "Pivot Joint B 20 with Locking Lever"
Couleur:
Couleur alu
Pays de livraison:
Monde entier
Description:

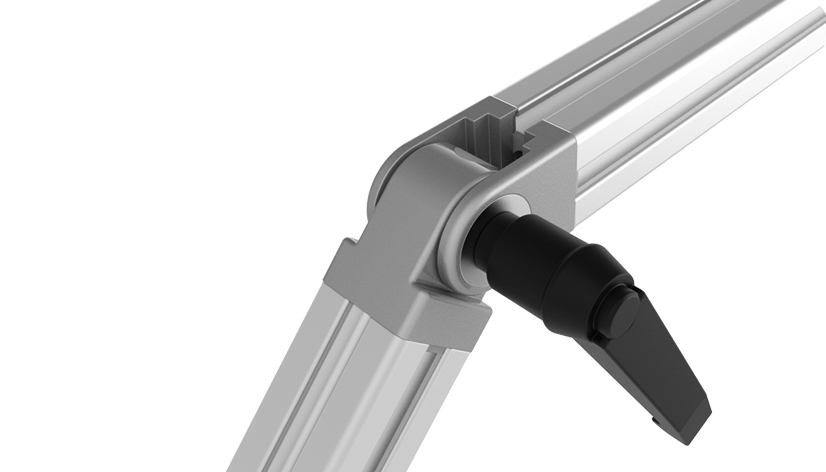

For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
Matériau:
Joint : fonderie d'aluminium
KIPP-Levier de serrage : plastique PA, renforcé fibre de verre
Options:
Autres surfaces, autres couleurs sur demande
Etat de surface:
Peint. poudre
Tip:

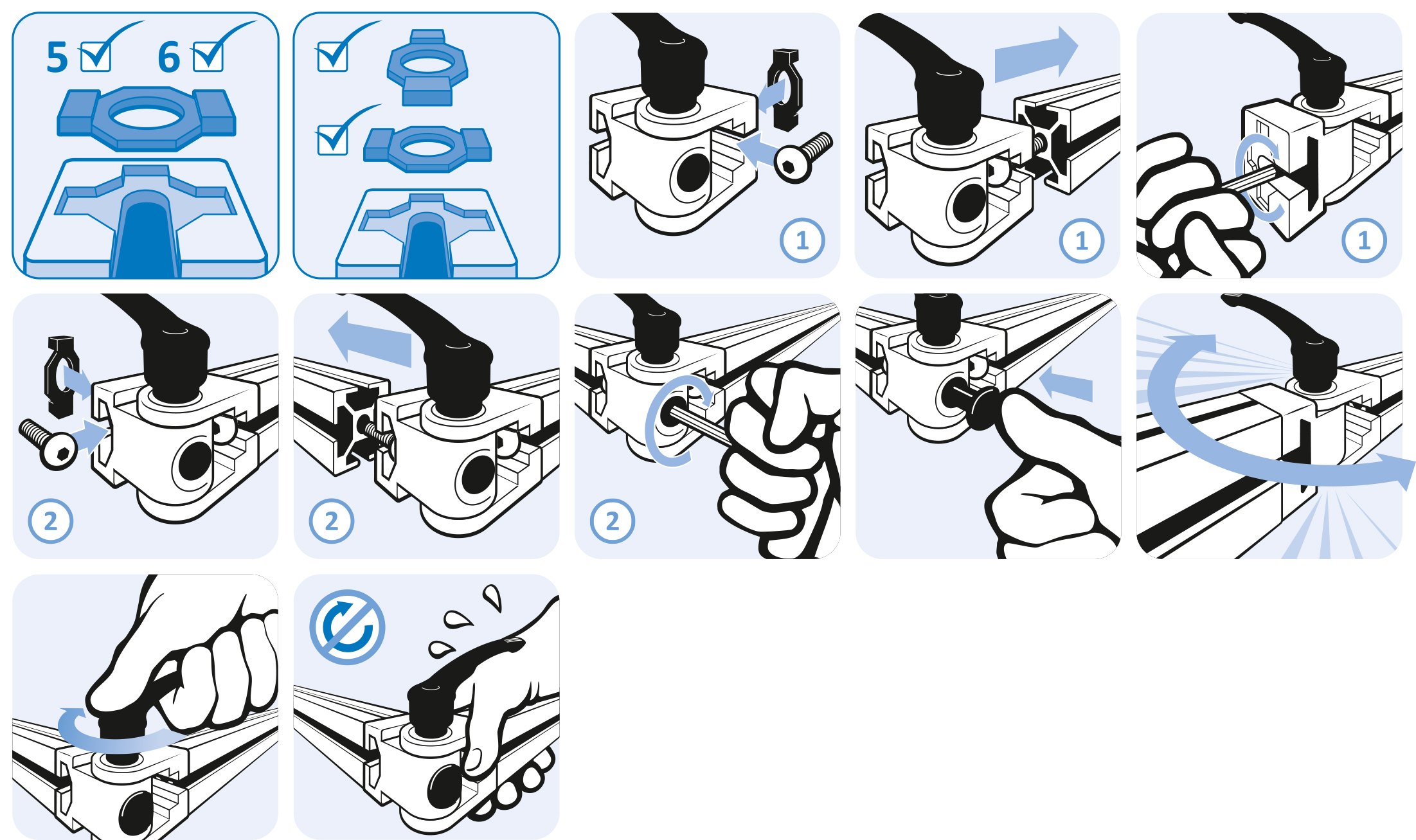

Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.
Couleur alu
Pays de livraison:
Monde entier
Description:
For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
Matériau:
Joint : fonderie d'aluminium
KIPP-Levier de serrage : plastique PA, renforcé fibre de verre
Options:
Autres surfaces, autres couleurs sur demande
Etat de surface:
Peint. poudre
Tip:
Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.
| Type de profilé: | Type de profilé B |
|---|---|
| Taille de rainure: | Rainure 6 |
| Conditionnement: | 10 pièces |
| Modèle: | Bearing block, with adjustable friction, aluminum die-cast |
| Poids (g): | 47.0 |
| Code ERP: | 138312 |
Classification
- ECLASS 6.0
- 23360301
- ECLASS 7.0
- 23360301
- ECLASS 8.0
- 23360301
- ECLASS 9.0
- 23360301
- ECLASS 10.0
- 23360301
- ECLASS 11.0
- 23360301
- ECLASS 12.0
- 23360301
- ECLASS 13.0
- 23360301
- Zolltarifnummer
- 76169910990
- Code douanier exportation
- 76169910
Certificats
