Small Compression Latch 16 / 22, Slotted Recess, incl. Cam (Set)

Informations sur le produit "Small Compression Latch 16 / 22, Slotted Recess, incl. Cam (Set)"

Color:
Insert: Black
Housing: Black
Seals: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:

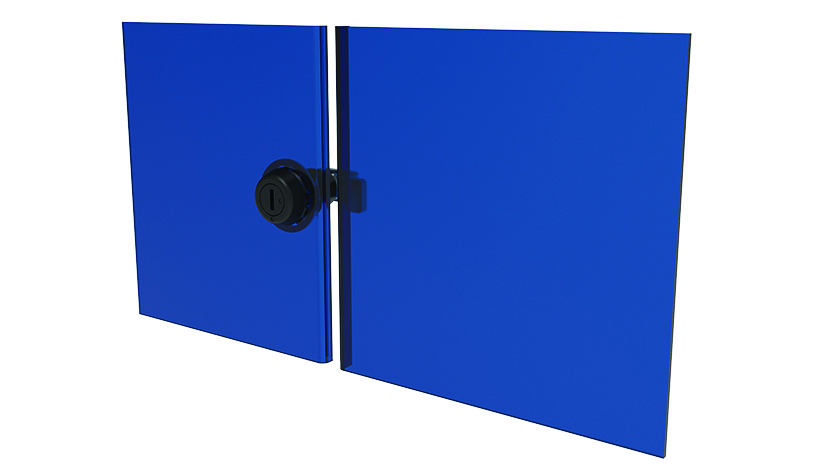

For easy, secure and compressive latching and locking of doors and flaps

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Steel
Assembly material: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Cam: Zinc plated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

Tip:
Compatible Dust Cap see 0890037

Zolltarifnummer:
83015000000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Conditionnement: 10 pièces
IP Rating: IP65 / NEMA 4
Modèle de porte: Droite, gauche
Poids (g): 47.2

Variantes

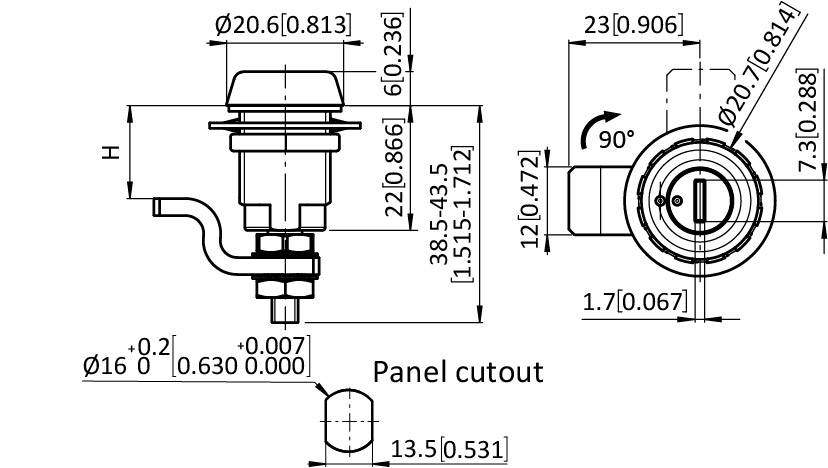

ID de produit H (mm)
0810203 3.2 - 6.4
0810204 6.4 - 9.5
0810205 9.5 - 12.7
0810206 12.7 - 15.9
0810207 15.9 - 19.0
0810208 19.0 - 22.2
0810209 22.2 - 25.4
0810210 25.4 -28.6
