Small Wing Knob Quarter Turn Lock 16.3 / 13.5, incl. Cam (Set)

Informations sur le produit "Small Wing Knob Quarter Turn Lock 16.3 / 13.5, incl. Cam (Set)"

Color:
Wing knob insert: Black / chrome
Housing: Black / chrome
Seal: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:

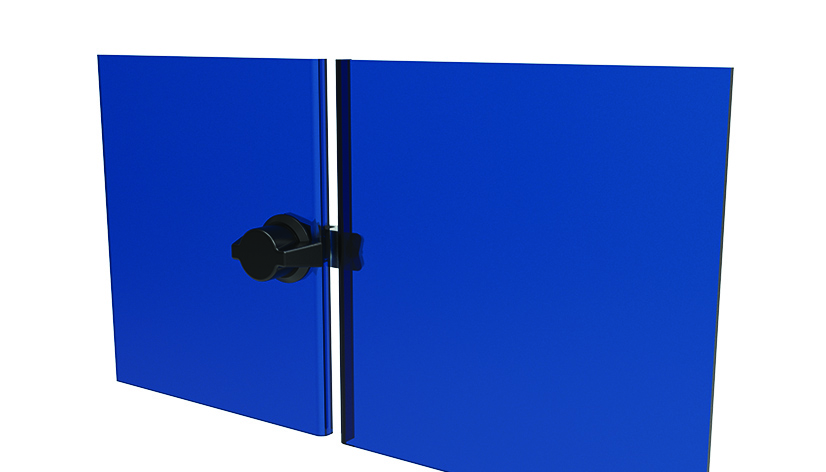

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Wing knob insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seal: Rubber NBR
Nut: Steel
Screw: Steel

Surface:
Wing knob insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Conditionnement: 10 pièces
IP Rating: IP65 / NEMA 4
Modèle de porte: Droite, gauche
Poids (g): 52.1

Variantes

ID de produit Couleur Matériel Etat de surface H (mm) Insert type
0810174 Chrome Fonderie zamac Chromé 13.5 Key locking
0810174S01 Chrome Fonderie zamac Chromé 7.5 Key locking
0810174S02 Chrome Fonderie zamac Chromé 19.5 Key locking
0810175 Chrome Fonderie zamac Chromé 13.5 Non-locking
0810175S01 Chrome Fonderie zamac Chromé 7.5 Non-locking
0810175S02 Chrome Fonderie zamac Chromé 19.5 Non-locking
0810176 Noir Fonderie zamac Peint. poudre 13.5 Key locking
0810176S05 Noir Fonderie zamac Peint. poudre 7.5 Key locking
0810176S06 Noir Fonderie zamac Peint. poudre 19.5 Key locking
0810177 Noir Fonderie zamac Peint. poudre 13.5 Non-locking
0810177S03 Noir Fonderie zamac Peint. poudre 7.5 Non-locking
0810177S04 Noir Fonderie zamac Peint. poudre 19.5 Non-locking
