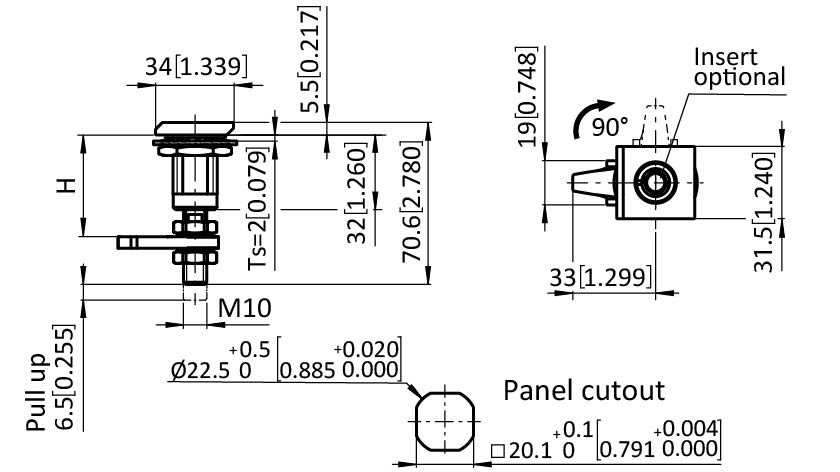

Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Straight (Set)

Informations sur le produit "Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Straight (Set)"

Color:
Insert: Black
Housing: Black
Seals: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:

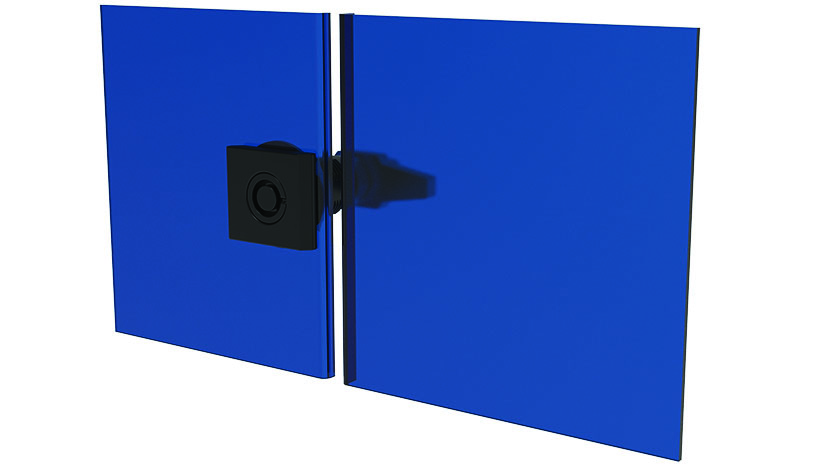

For easy, secure and compressive latching and locking of doors and flaps

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Steel
Assembly material: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Retaining spring: Zinc plated
Housing: Powder coated
Cam: Zinc plated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

Conditionnement:	10 pièces
Poids (g):	164.2
IP Rating:	IP65 / NEMA 4
Modèle de porte:	Droite, gauche
Code ERP:	139444

Variantes

Réf. produit	H (mm)	Insert type
0813090	38.9 - 54.6	Tubular
0813091	38.9 - 54.6	Double bit 3.0 mm
0813092	38.9 - 54.6	Triangular 7.0 mm
0813093	38.9 - 54.6	Triangular 8.0 mm
0813094	38.9 - 54.6	Square 7.0 mm
0813095	38.9 - 54.6	Square 8.0 mm
0813096	38.9 - 54.6	Slotted recess
0813097	38.9 - 54.6	Female hexagon 8.0 mm
0813098	38.9 - 54.6	Male hexagon 10.0 mm
