Support écran fixe

Informations sur le produit "Support écran fixe"

Color:
Monitor mounting plate: Black

Pays de livraison:
Monde entier

Description:

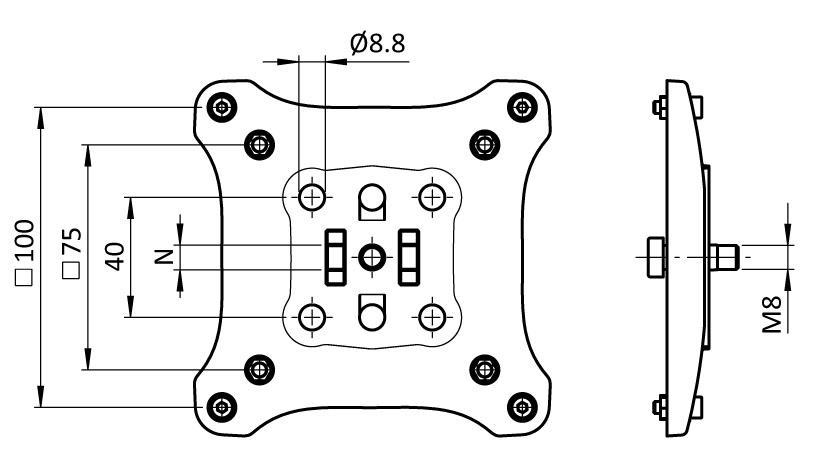

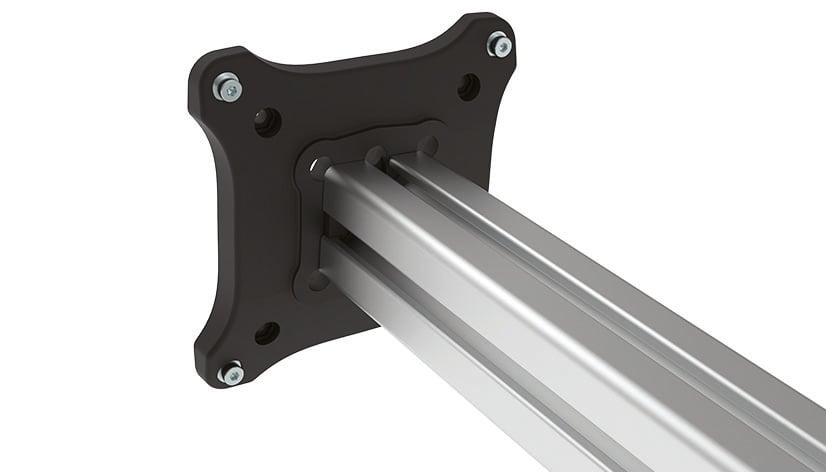

To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible; with separate locating pins for slot 8 and slot 10

Material:
Monitor mounting plate: Plastic PA, glass fiber reinforced

Set:
1 monitor mounting plate
1 assembly set for monitor: 4 cylinder head screws M4x12, 4 washers
assembly set for profile: M8x25 frontal and M8x16 slot side, 2 centering pieces

Options:
Autres couleurs sur demande

Information:
Insert fileté pour réduction du Ø 10.2mm central en M8 voir 09308801

Zolltarifnummer:
39269097900
(ECLASS 6.0): 19140390
(ECLASS 7.0): 19140390
(ECLASS 8.0): 19140390
(ECLASS 9.0): 19140390
(ECLASS 10.0): 19140390
(ECLASS 11.0): 19140392
(ECLASS 12.0): 19140392
(ECLASS 13.0): 19140392
Conditionnement: 1 Kit
Poids (g): 123.0

Variantes

ID de produit Rainure N (mm)
061SM751004045 8 / 10

Téléchargements CAD

Certificats
