T-handle Compression Latch, 22.5 / 32, Long Shaft, incl. Cam (Set)

0,00 €*

Prix HT, frais de livraison en sus

H (mm)

11.4 - 27.2 / 66.3 - 76.2

25.4 - 41.1 / 52.6 - 68.3

38.9 - 54.6

Insert type

Key locking (Keyed FH751)

Non-locking

Réf. produit : 0850149

Informations sur le produit "T-handle Compression Latch, 22.5 / 32, Long Shaft, incl. Cam (Set)"

Color:
T-handle Insert: Black
Housing: Black
Seals: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:

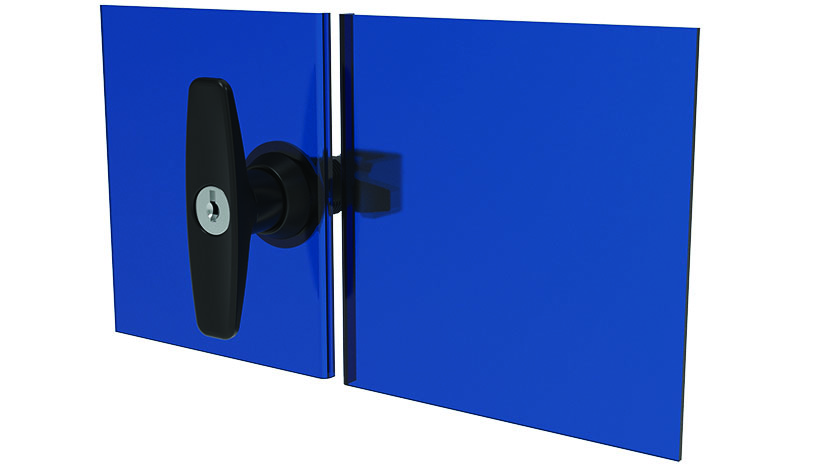

For easy, secure and compressive latching and locking of doors and flaps

Material:
T-handle insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Zinc die-cast
Assembly material: Steel

Surface:
T-handle insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

(ECLASS 6.0):	23199090
(ECLASS 7.0):	23199090
(ECLASS 8.0):	23199090
(ECLASS 9.0):	23199090
(ECLASS 10.0):	23199090
(ECLASS 11.0):	23199090
(ECLASS 12.0):	23199090
(ECLASS 13.0):	23199090
Code PA:	140712
Code douanier exportation:	83014090
Conditionnement:	10 pièces
Poids (g):	251.6
Zolltarifnummer:	83014090000

Variantes

ID de produit	Insert type	H (mm)
0850144	Key locking (Keyed FH751)	11.4 - 27.2 / 66.3 - 76.2
0850145	Key locking (Keyed FH751)	25.4 - 41.1 / 52.6 - 68.3
0850146	Key locking (Keyed FH751)	38.9 - 54.6
0850147	Non-locking	11.4 - 27.2 / 66.3 - 76.2
0850148	Non-locking	25.4 - 41.1 / 52.6 - 68.3
0850149	Non-locking	38.9 - 54.6
