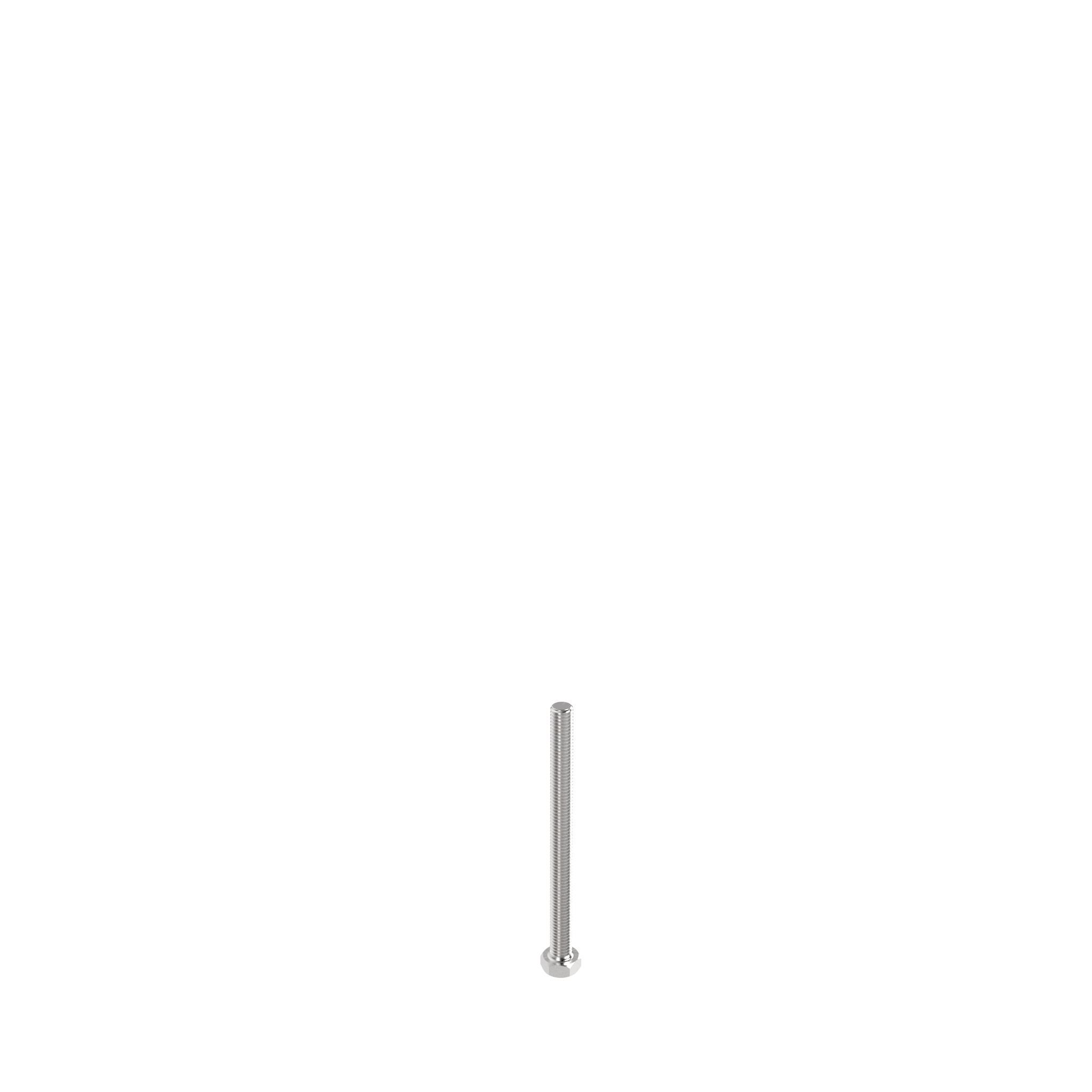

Tige filetée acier inox pour pieds ECO

Informations sur le produit "Tige filetée acier inox pour pieds ECO"

Pays de livraison:
Monde entier

Description:
Tige filetée pour pieds ECO

Matériau:
Acier inox 1.4302

Options:
Autres longueurs et tailles sur demande

Etat de surface:
Brute

Information:
Goupille de montage 098XEM incluse
(Pieds ECO sont fournis assemblés en usine)
Modèle: Acier inox
Conditionnement: 100 pièces
Code douanier exportation: 73181575
Liaison: Débattement angulaire ±5°
Poids (g): 35.0
(ECLASS 6.0): 90900103
(ECLASS 7.0): 90900103
(ECLASS 8.0): 90900103
(ECLASS 9.0): 90900103
(ECLASS 10.0): 90900103
(ECLASS 11.0): 90900103
(ECLASS 12.0): 90900103
(ECLASS 13.0): 90900103
(ECLASS 15.0): 90900103
(ECLASS 16.0): 23010705
Code ERP: 104584
ECLASS_V14.0: 90900103
Zolltarifnummer: 73181575900

Variantes

Réf. produit Fmax (N) K (mm) M x L (mm) Matériel SW (mm)
098EM08025E 3430 5.3 M8 x 25 Acier inox 13
098EM08040E 3430 5.3 - Acier inox 13
098EM08050E 3430 5.3 - Acier inox 13
098EM08070E 3430 5.3 M8 x 70 Acier inox 13
098EM08080E 3430 5.3 - Acier inox 13
098EM08100E 3430 5.3 - Acier inox 13
098EM08120E 3430 5.3 M8 x 120 Acier inox 13
098EM10025E 4600 6.4 M10 x 25 Acier inox 17
098EM10040E 4600 6.4 - Acier inox 17
098EM10050E 4600 6.4 M10 x 50 Acier inox 17
098EM10070E 4600 6.4 - Acier inox 17
098EM10080E 4600 6.4 - Acier inox 17
098EM10100E 4600 6.4 - Acier inox 17
098EM10120E 4600 6.4 M10 x 120 Acier inox 17
098EM12050E 7550 7.5 M12 x 50 Acier inox 19
098EM12070E 7550 7.5 M12 x 70 Acier inox 19
098EM12080E 7550 7.5 - Acier inox 19
098EM12100E 7550 7.5 M12 x 100 Acier inox 19
098EM12120E 7550 7.5 M12 x 120 Acier inox 19
098EM16050E 14200 10.0 M16 x 50 Acier inox 24
098EM16070E 14200 10.0 M16 x 70 Acier inox 24
098EM16100E 14200 10.0 M16 x 100 Acier inox 24
098EM16150E 14200 10.0 - Acier inox 24
