Wing Knob 40 Quarter Turn Lock 22.5 / 18

Informations sur le produit "Wing Knob 40 Quarter Turn Lock 22.5 / 18"

Color:
Wing knob insert: Black / chrome
Housing: Black / chrome
Seal: Black

Pays de livraison:
Amérique du Nord, Amérique centrale, Caraïbes, Amérique du Sud, Chine, Royaume-Uni, Irlande, Pays-Bas, Estonie, Lettonie, Lituanie, Pologne, Tchéquie, Slovaquie, Hongrie, Slovénie, Croatie, Serbie, Roumanie, Bulgarie

Description:

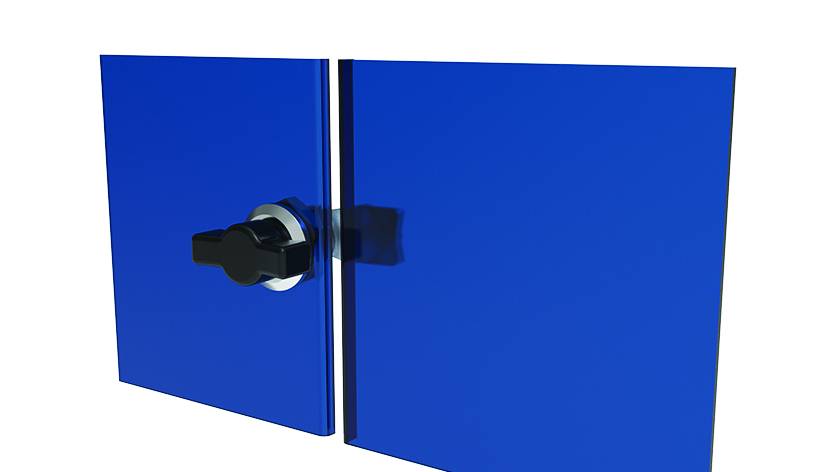

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Wing knob insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Specials:
Keyed different, FH751 key code on request

Surface:
Wing knob insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Conditionnement: 10 pièces
IP Rating: IP65 / NEMA 4
Modèle de porte: Droite, gauche
Poids (g): 99.5

Variantes

ID de produit Couleur Matériel Etat de surface
0810138 Chrome Fonderie zamac Chromé
0810156 Noir Fonderie zamac Peint. poudre
