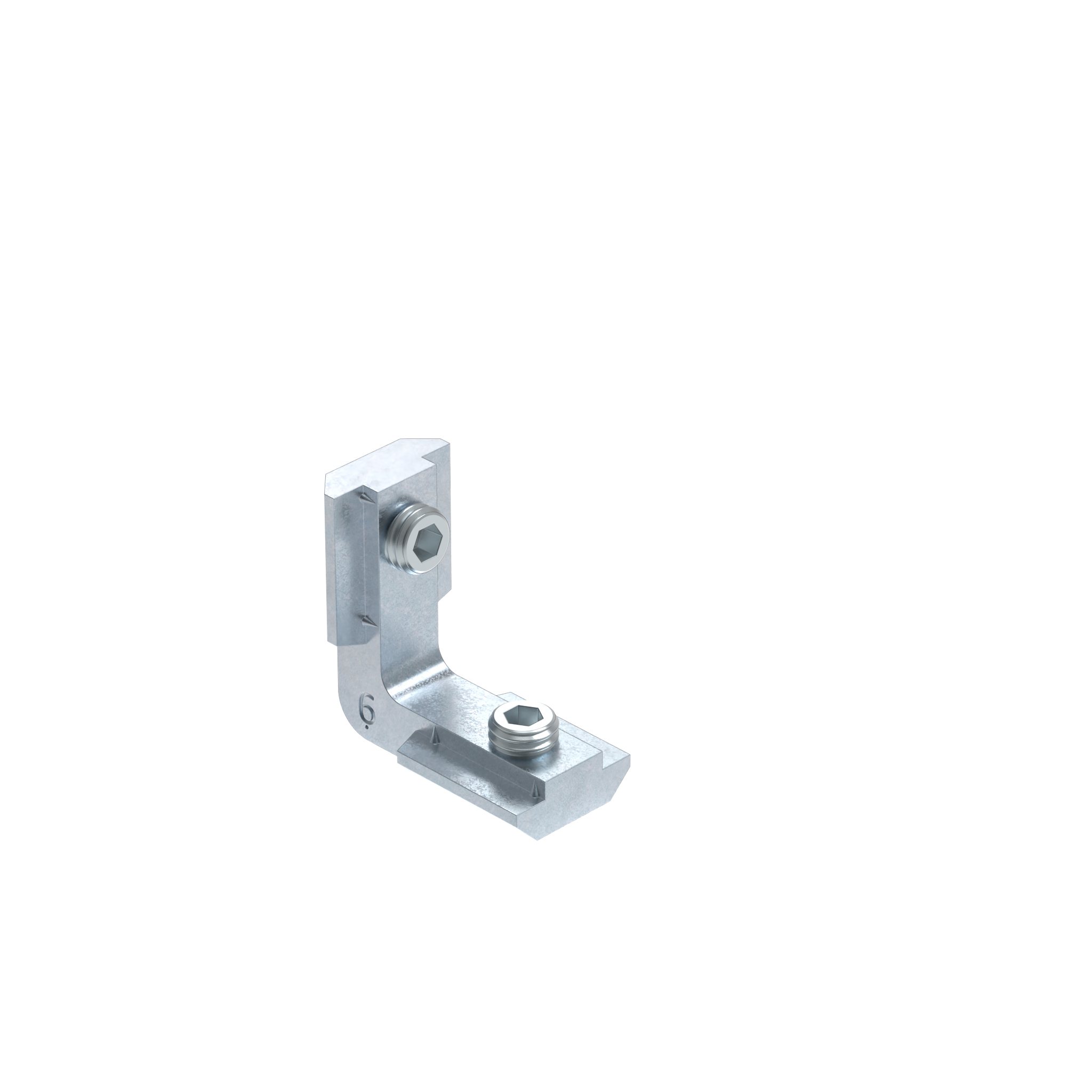

Innenwinkel R
Produktnummer:
099I90R06M
Produktinformationen "Innenwinkel R"
Lieferländer:
weltweit
Beschreibung:

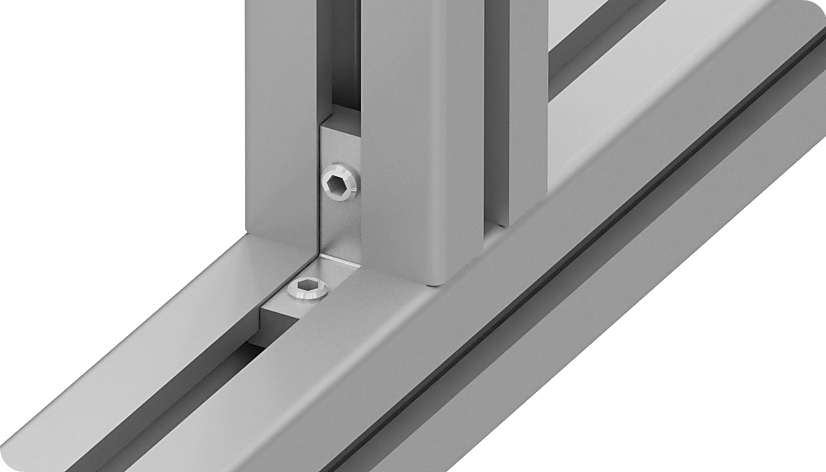

zur Verbindung von zwei Aluminiumprofilen, Montage ohne Profilbearbeitung
Material:
Innenwinkel Ausführung ST: Stahlguss, verzinkt
Innenverbinder Ausführung ZN: Zinkdruckguss, verzinkt
Gewindestifte: Stahl, verzinkt
weltweit
Beschreibung:
zur Verbindung von zwei Aluminiumprofilen, Montage ohne Profilbearbeitung
Material:
Innenwinkel Ausführung ST: Stahlguss, verzinkt
Innenverbinder Ausführung ZN: Zinkdruckguss, verzinkt
Gewindestifte: Stahl, verzinkt
Gewicht (g): | 9.8 |
---|---|
(ECLASS 6.0): | 23360290 |
(ECLASS 7.0): | 23360290 |
(ECLASS 8.0): | 23360290 |
(ECLASS 9.0): | 23360290 |
(ECLASS 10.0): | 23360290 |
(ECLASS 11.0): | 23360290 |
(ECLASS 12.0): | 23360290 |
(ECLASS 13.0): | 23360290 |
Liefereinheit: | 10 Stück |
Modell: | Stahlguss / Zinkdruckguss |
Varianten

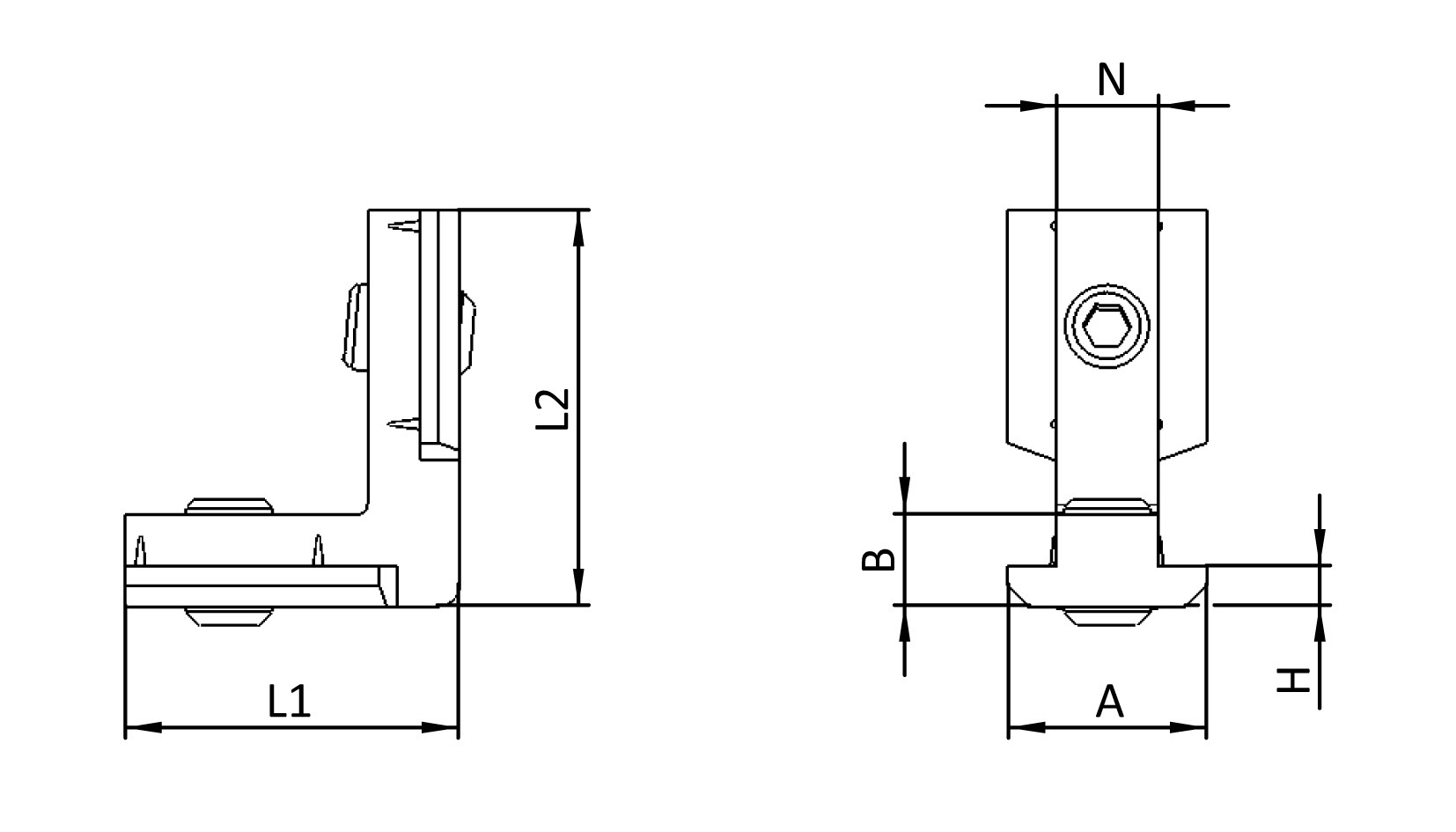

Produkt ID | Ausführung | Gewindestift | A (mm) | B (mm) | H (mm) | L1 (mm) | L2 (mm) | Nut N (mm) | Profil |
---|---|---|---|---|---|---|---|---|---|
099I90R06 | ZN Zinkdruckguss | M5 | 11.3 | 4.5 | 3.0 | 21.6 | 21.6 | 6 | B |
099I90R06M | ST Stahlguss | M5 | 11.3 | 4.5 | 3.0 | 21.6 | 21.6 | 6 | B |
099I90R08 | ZN Zinkdruckguss | M6 | 15.8 | 7.8 | 6.0 | 21.6 | 30.0 | 8 | B |
099I90R08M | ST Stahlguss | M6 | 15.8 | 7.8 | 6.0 | 21.6 | 30.0 | 8 | B |
099I90R10 | ZN Zinkdruckguss | M8 | 19.0 | 8.8 | 3.8 | 32.0 | 38.0 | 10 | B |
099I90R10M | ST Stahlguss | M8 | 19.0 | 8.8 | 3.8 | 32.0 | 38.0 | 10 | B |
