Verbindungstechnik

ØD (mm): 9.0 | ØD1 (mm): 13.5 | ØD2 (mm): 28.0 | B (mm): 36.0 | Raster: 40

ØD (mm): 7.0 | ØD1 (mm): - | ØD2 (mm): 22.0 | A (mm): 30.0 | B (mm): 57.0 | Raster: 30

für Schraube: M8 | Nut N (mm): 8

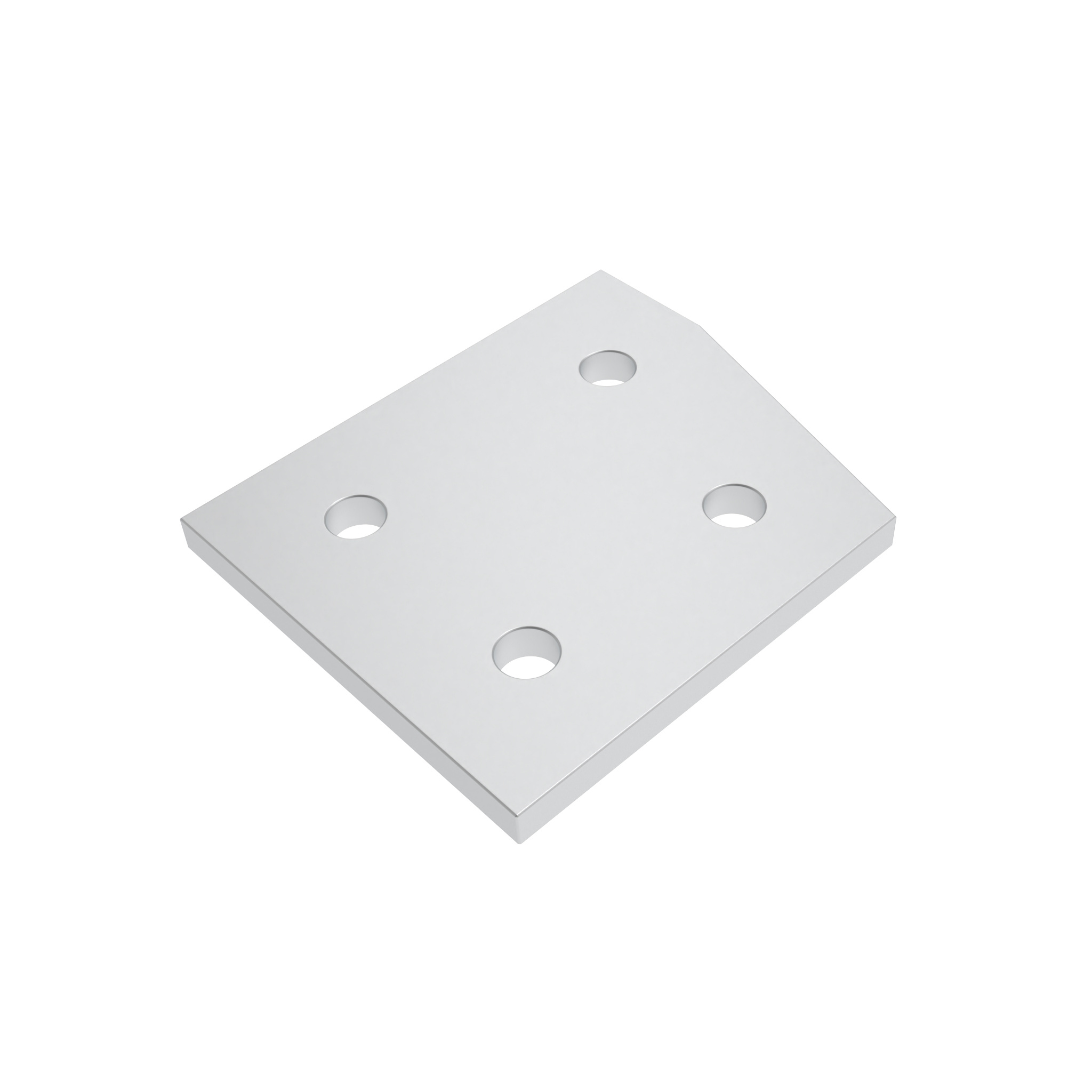

Ausführung: 76.2 / 88.9 - 3" / 3.5" | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | L (mm): 88.9 (3.5") | K (mm): 23.98 (0.94") | K (mm): 74.9 (2.94")

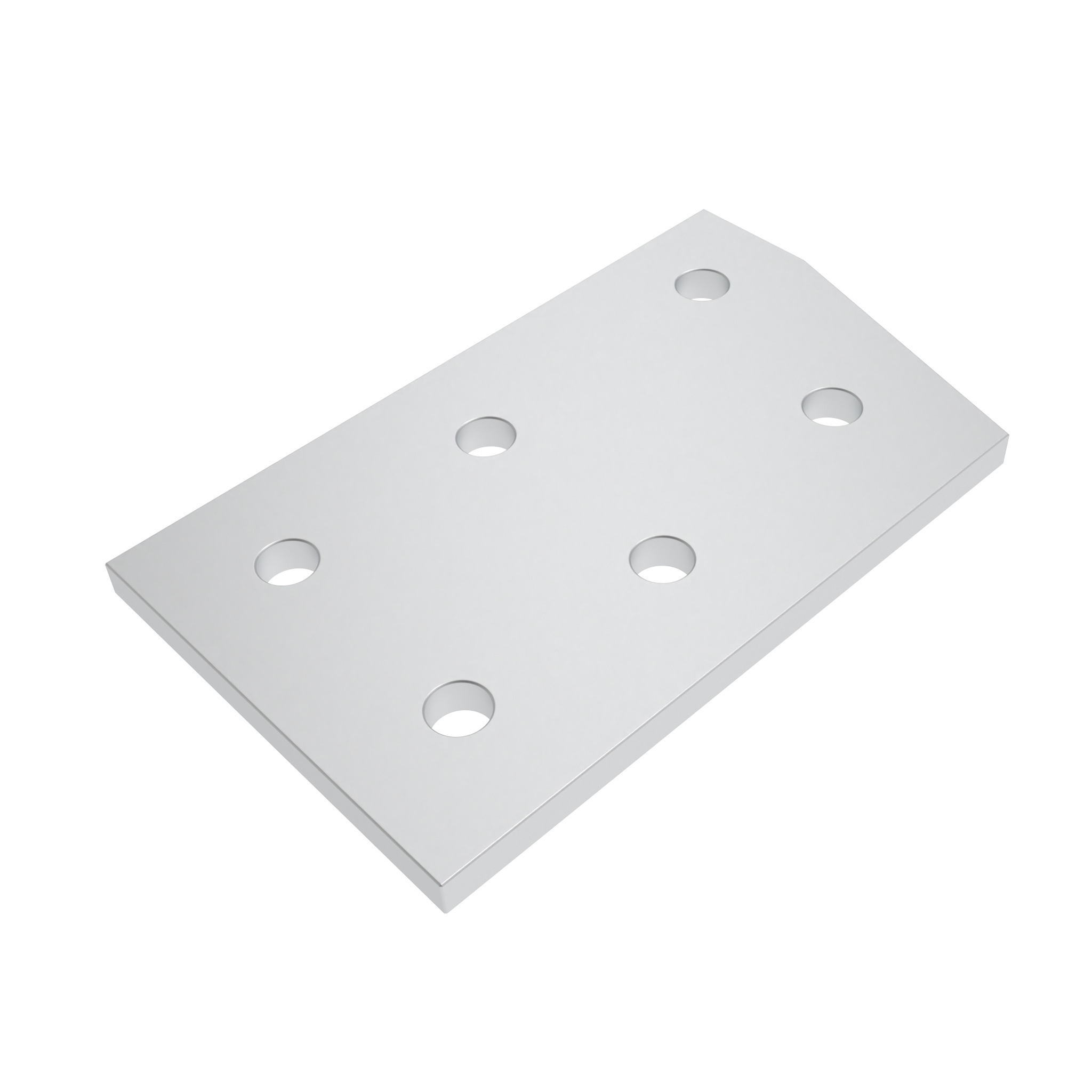

Ausführung: 76.2 / 127 - 3" / 5" | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | L (mm): 127 (5") | K (mm): 113.0 (4.44") | K (mm): 23.98 (0.94")

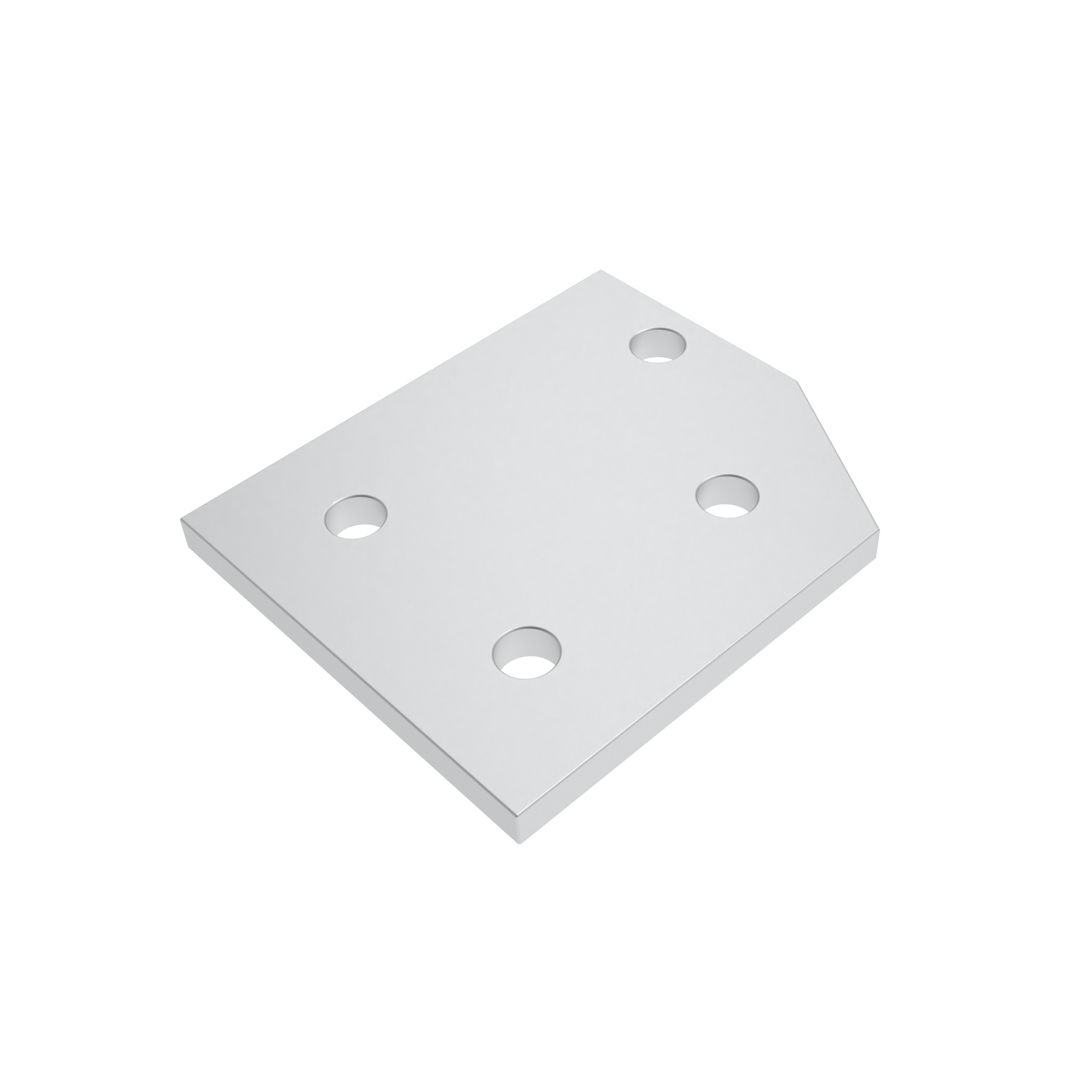

Ausführung: 76.2 / 88.9 - 3" / 3.5" | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.3 (0.25") | L (mm): 88.9 (3.5") | K (mm): 45.36 (1.78") | K (mm): 71.09 (2.79")

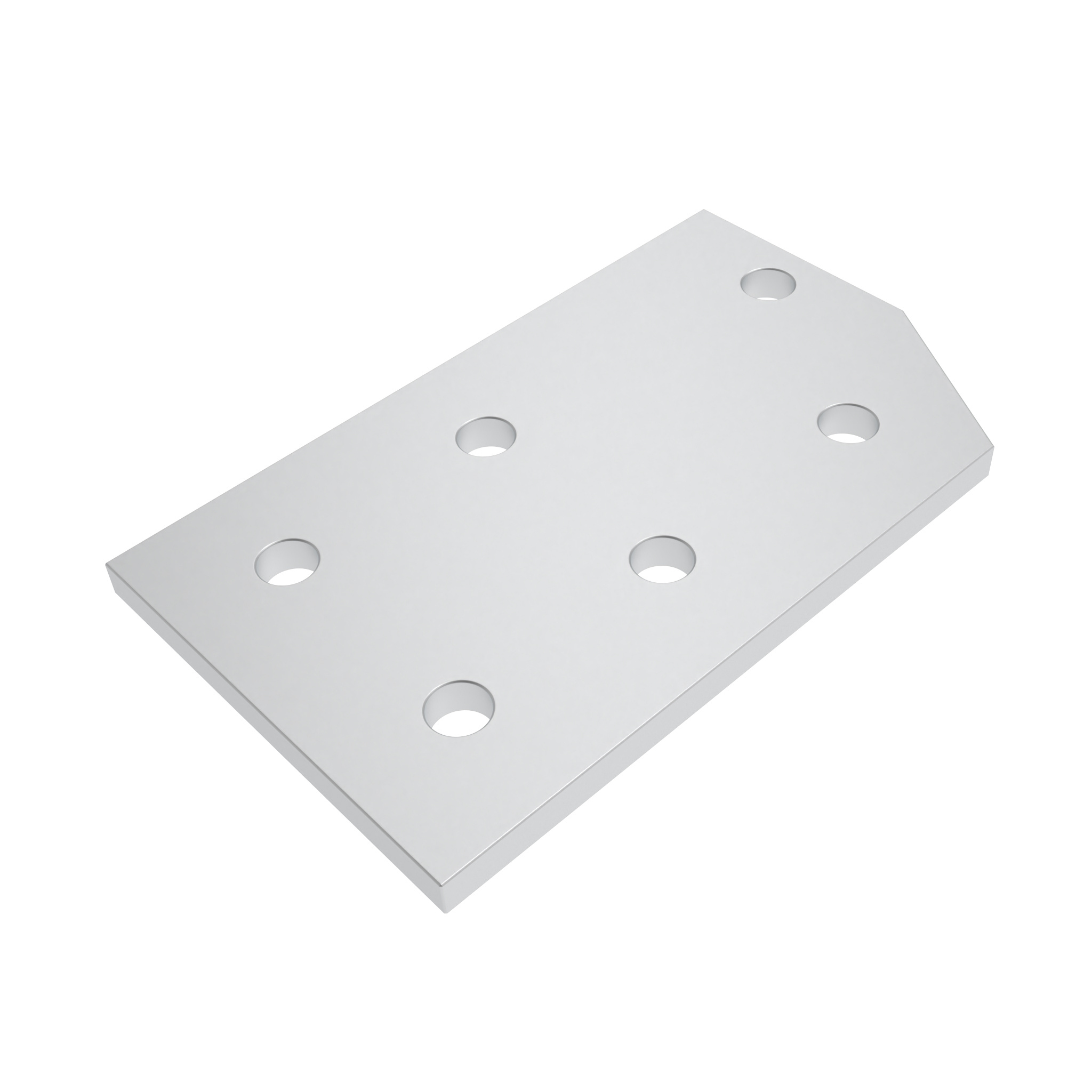

Ausführung: 76.2 / 127 - 3" / 5" | ØD (mm): 8.89 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | L (mm): 127 (5") | K (mm): 44.86 (1.76") | K (mm): 109.19 (4.29")

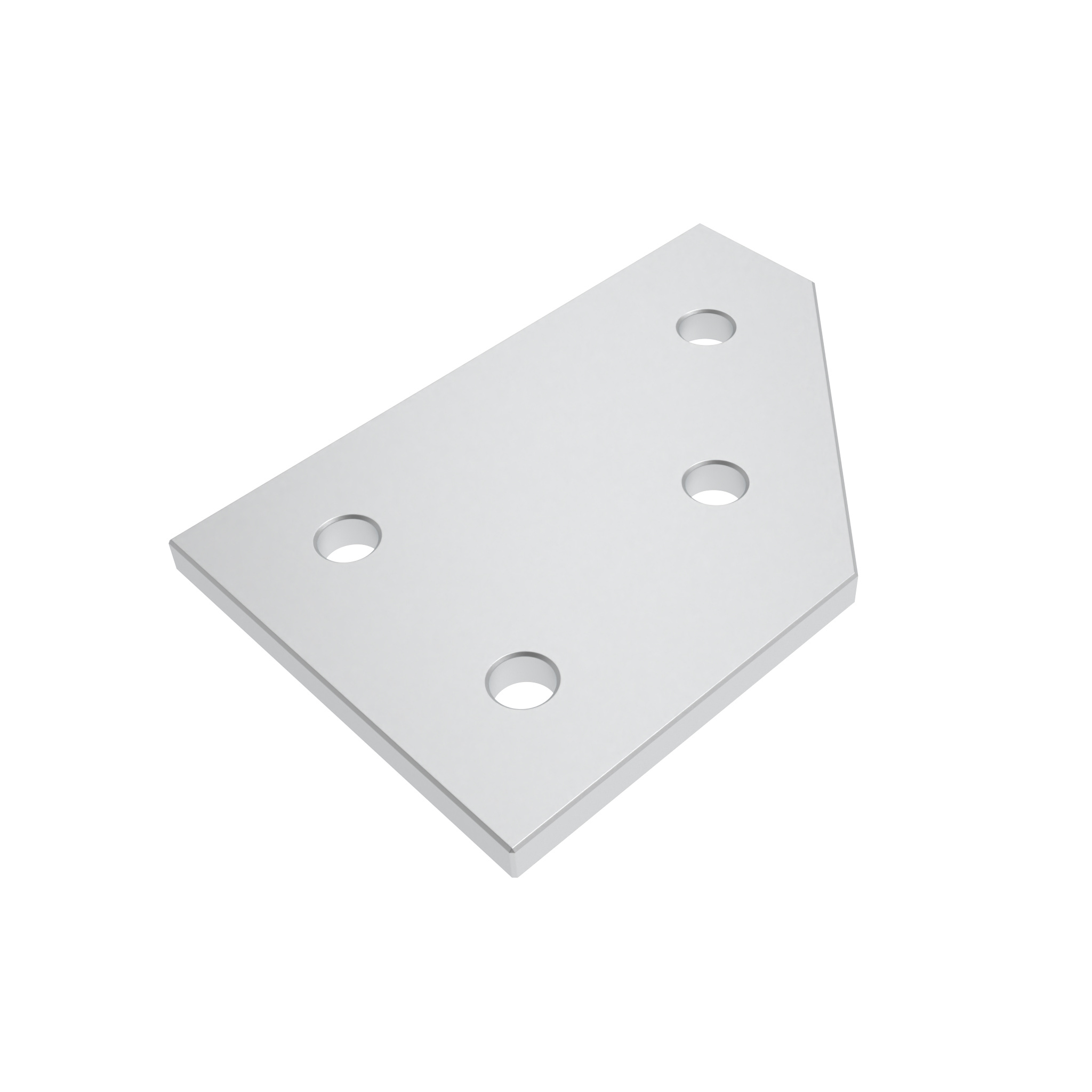

Ausführung: 76.2 / 114.3 - 3" / 4.5" | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.3 (0.25") | L (mm): 114.3 (4.5") | K (mm): 25.95 (1.06") | K (mm): 65.05 (2.56")

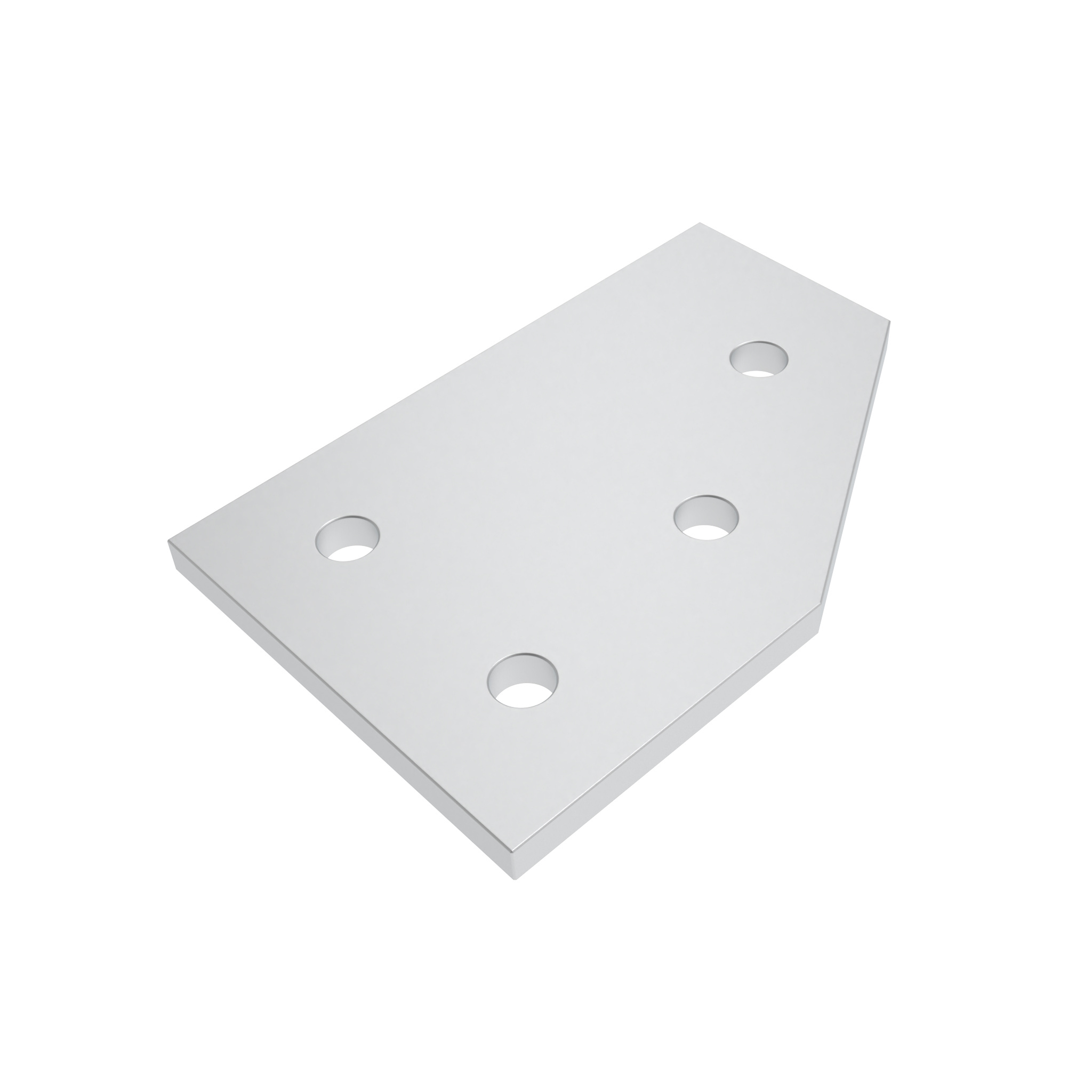

Ausführung: 76.2 / 114.3 - 3" / 4.5" | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | L (mm): 114.3 (4.5") | K (mm): 43.21 (1.7") | K (mm): 57.15 (2.25")

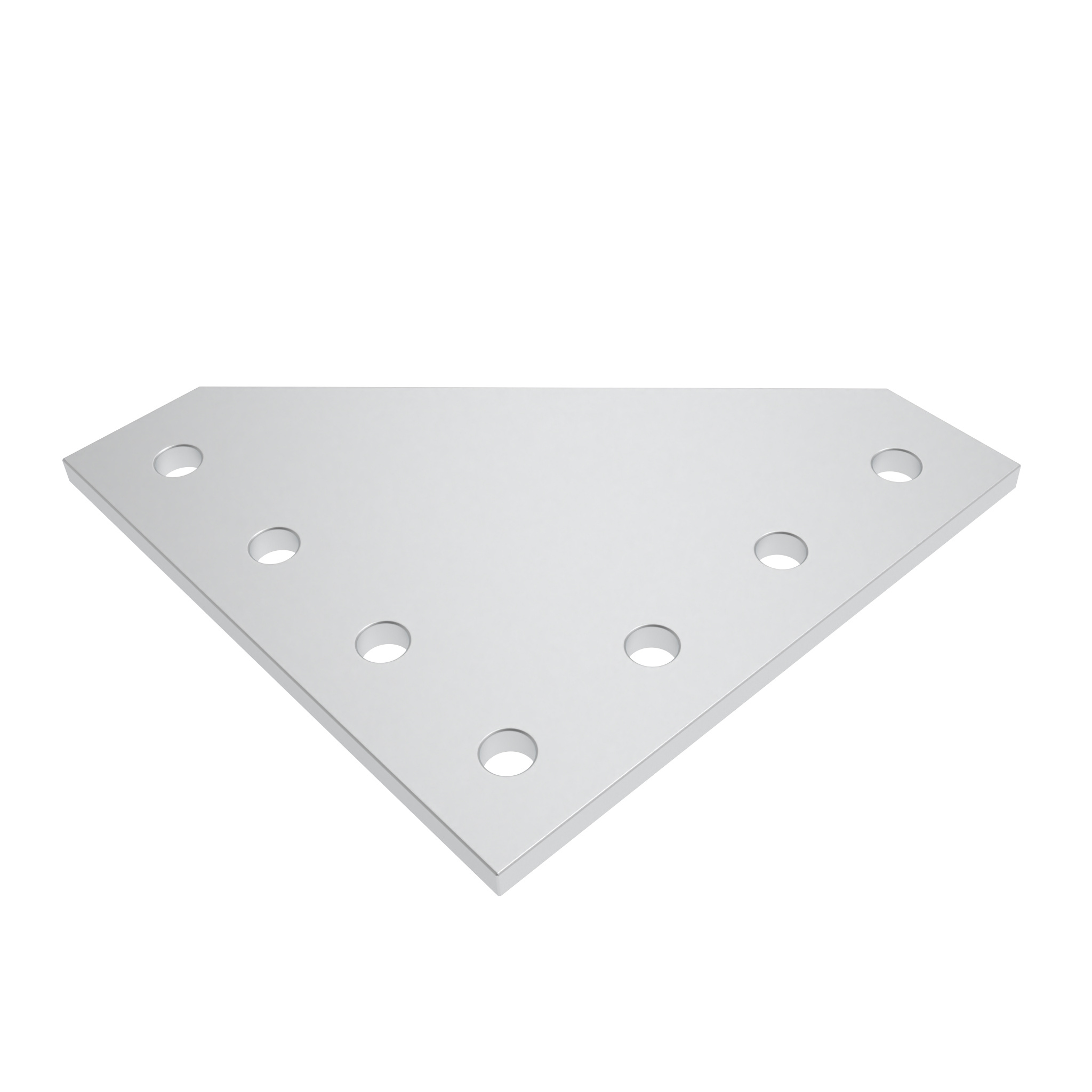

Ausführung: 102 / 102 - 4" / 4" | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 101.6 (4") | H (mm): 4.8 (0.19") | K (mm): 51.0 (2.00") | L (mm): 101.6 (4")

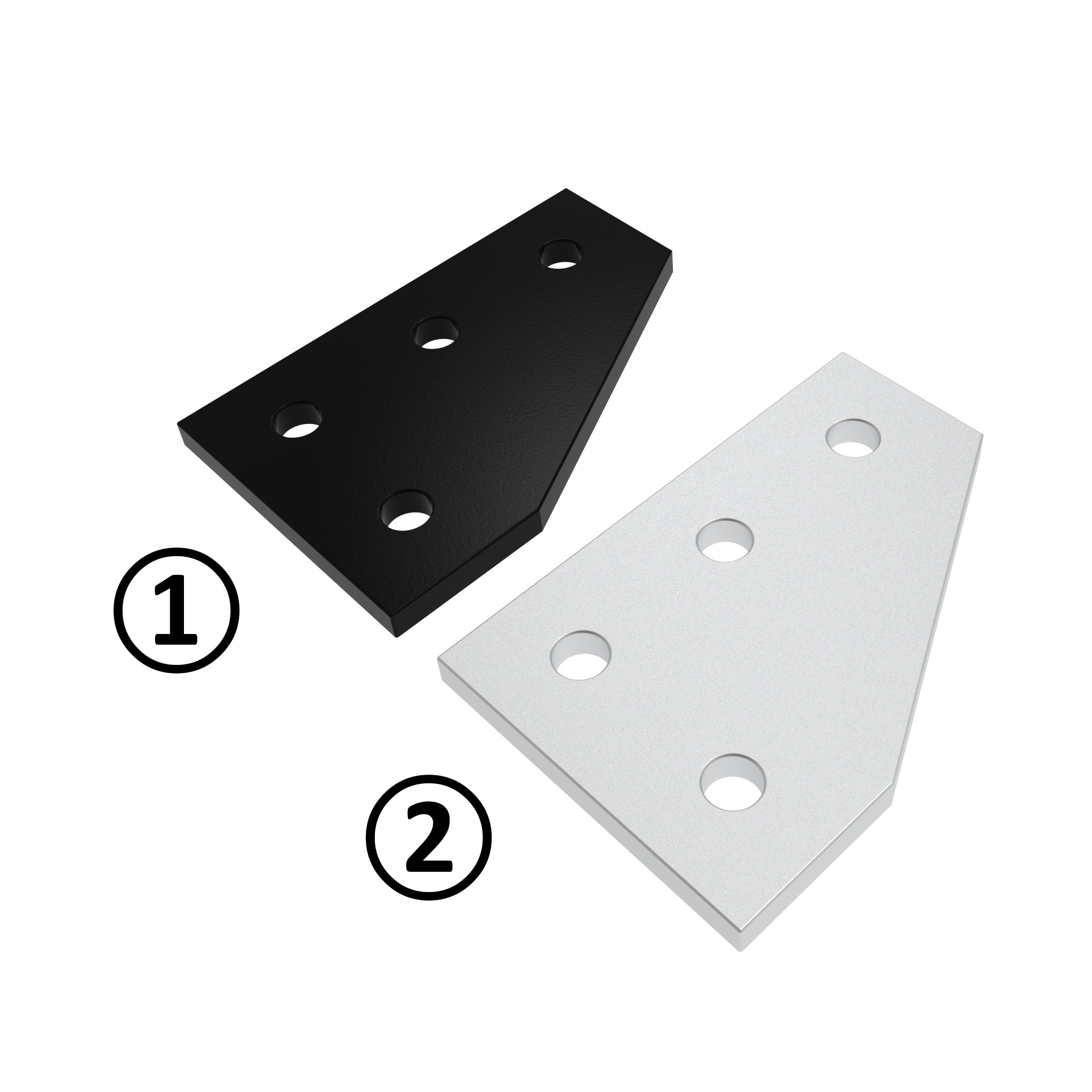

Abb.: ② | Ausführung: 76.2 / 114.3 - 3" / 4.5" | Farbe: - | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | K (mm): 38.0 (1.49") | L (mm): 114.3 (4.5") | Oberfläche: eloxiert

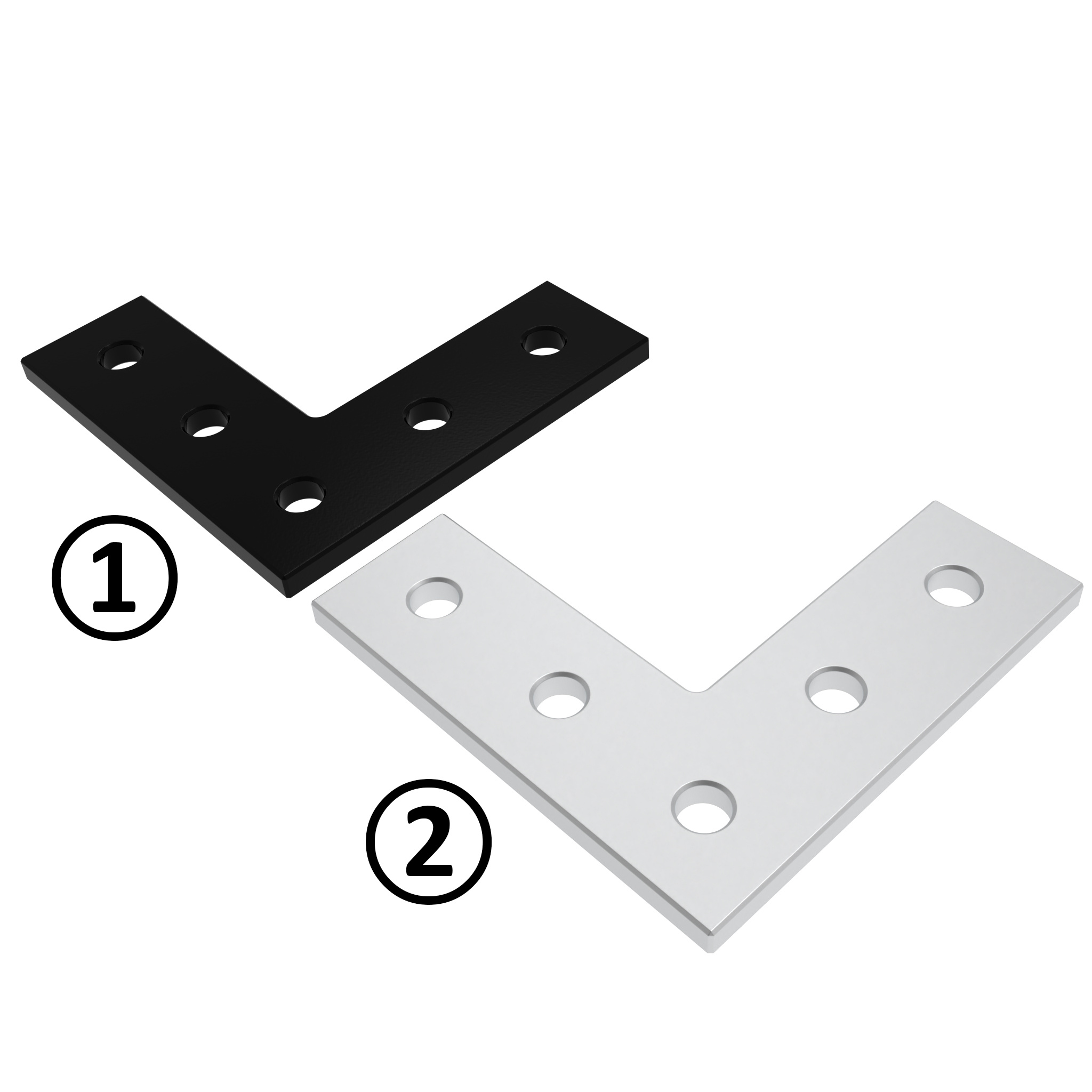

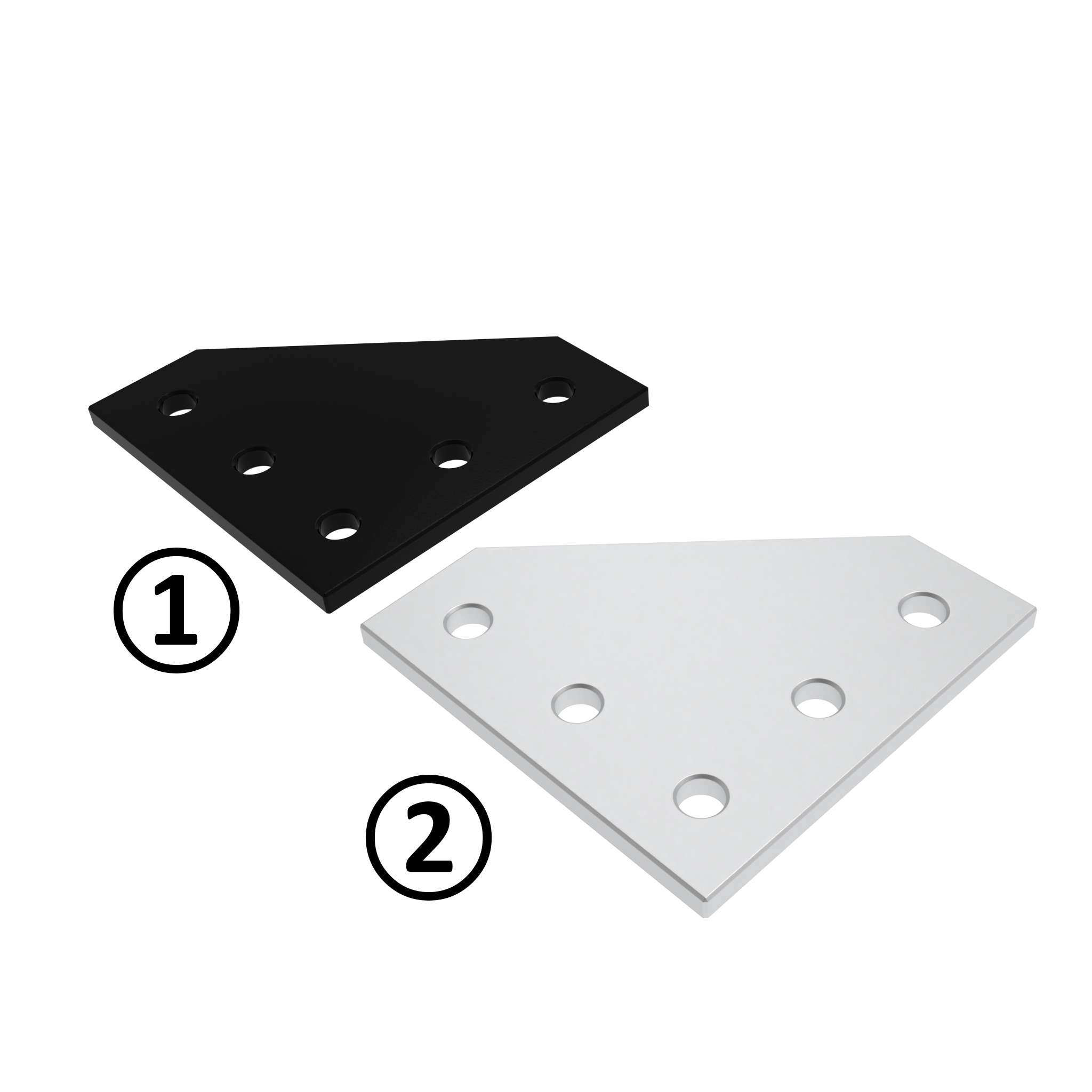

Abb.: ① | Ausführung: 76.2 / 76.2 - 3" / 3" | Farbe: schwarz | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | H (mm): 4.8 (0.19") | K (mm): 25.0 (0.98") | L (mm): 76.2 (3") | Oberfläche: pulverbeschichtet

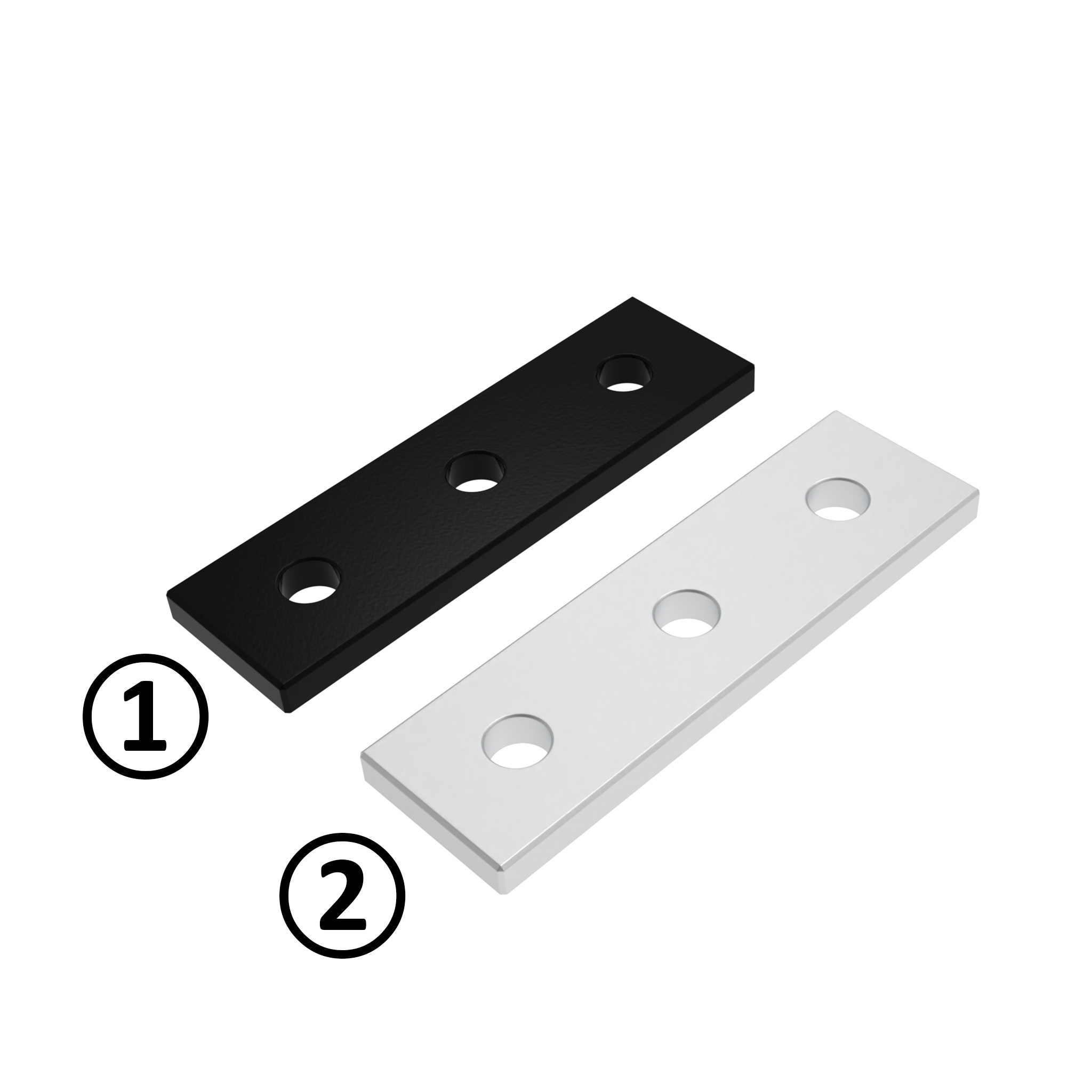

Abb.: ① | Ausführung: 76.2 / 76.2 - 3" / 3" | Farbe: schwarz | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | H (mm): 4.8 (0.19") | K (mm): 25.0 (0.98") | L (mm): 76.2 (3") | Oberfläche: pulverbeschichtet

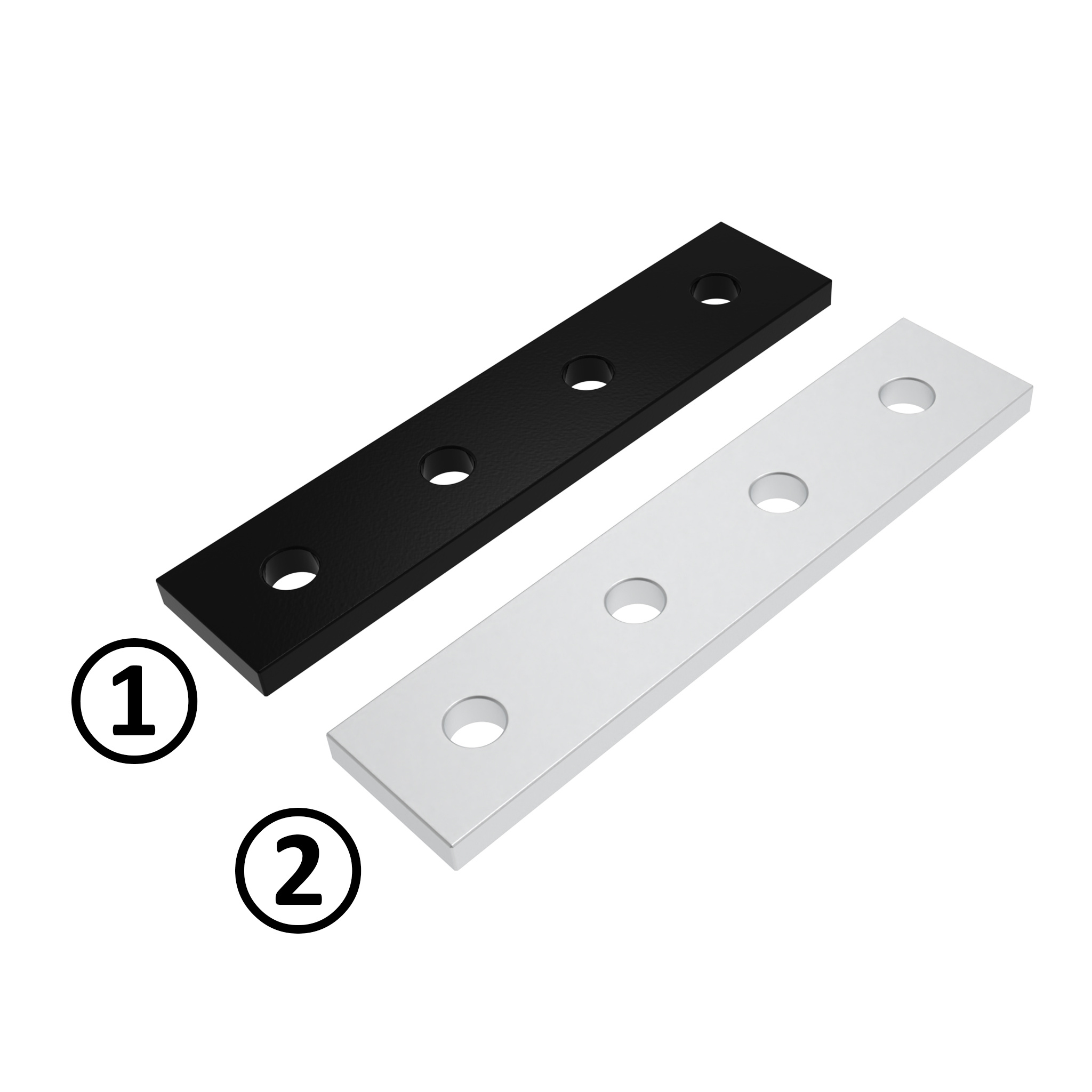

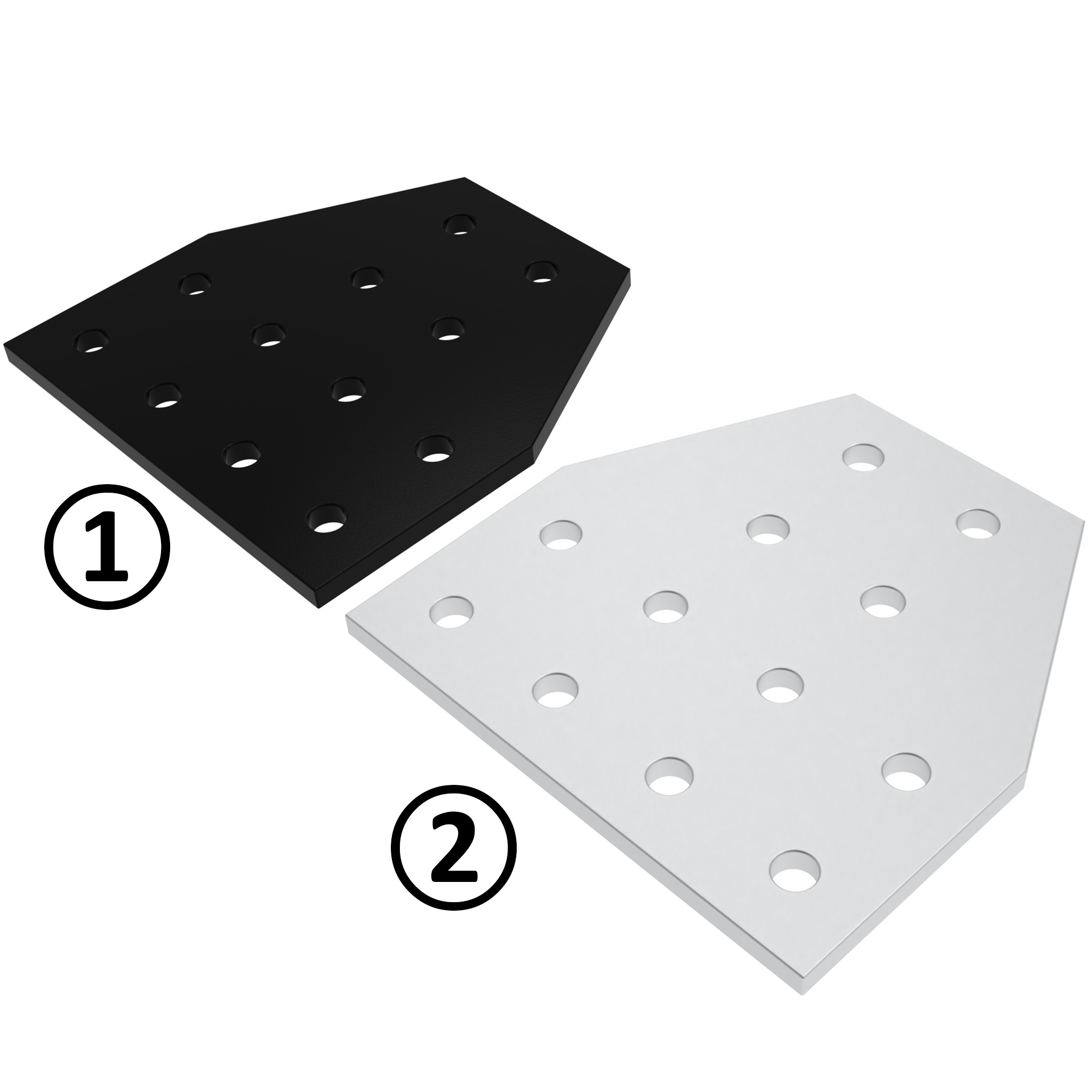

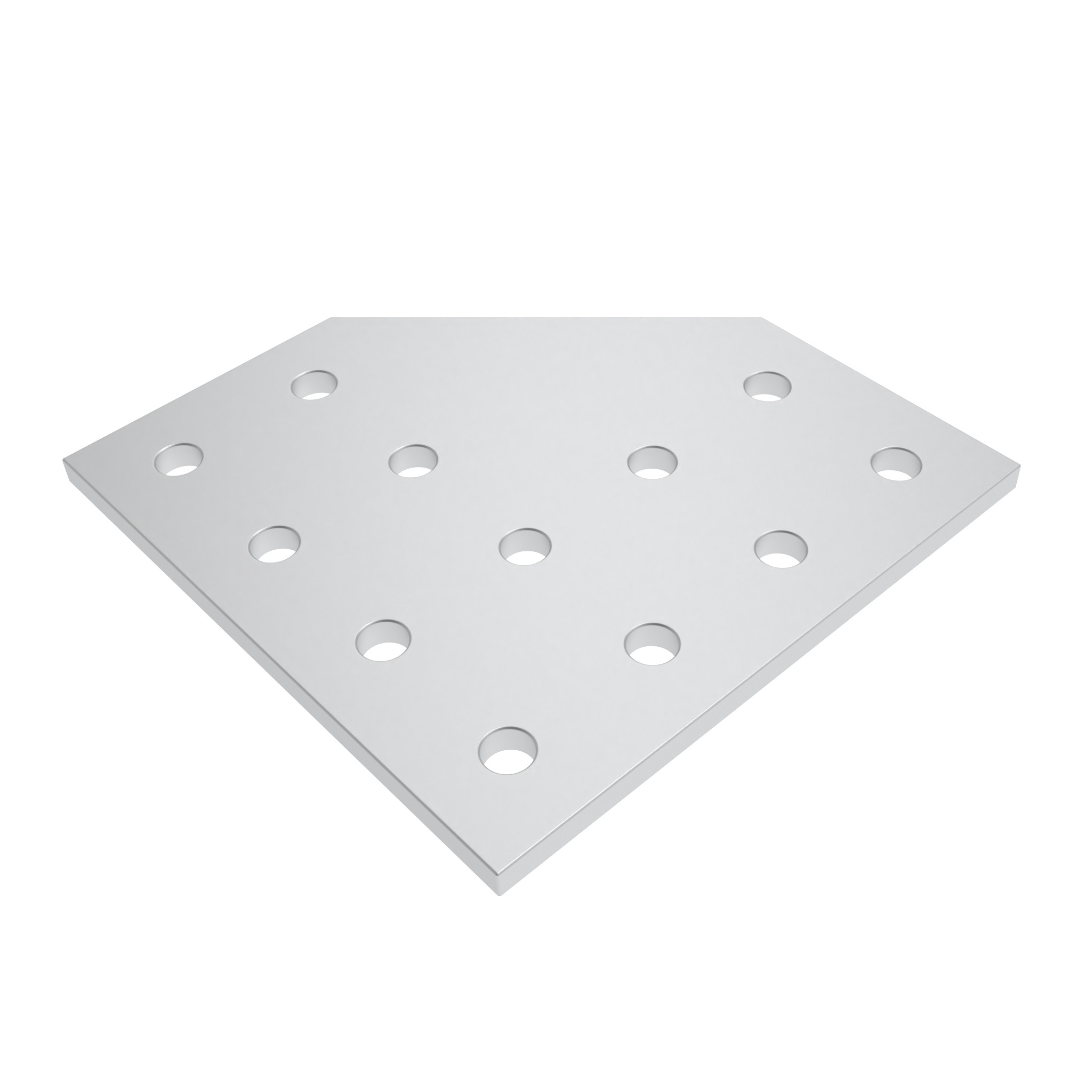

Ausführung: 102 / 102 - 4" / 4" | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 101.6 (4") | H (mm): 4.8 (0.19") | K (mm): 25.0 (0.98") | L (mm): 101.6 (4")

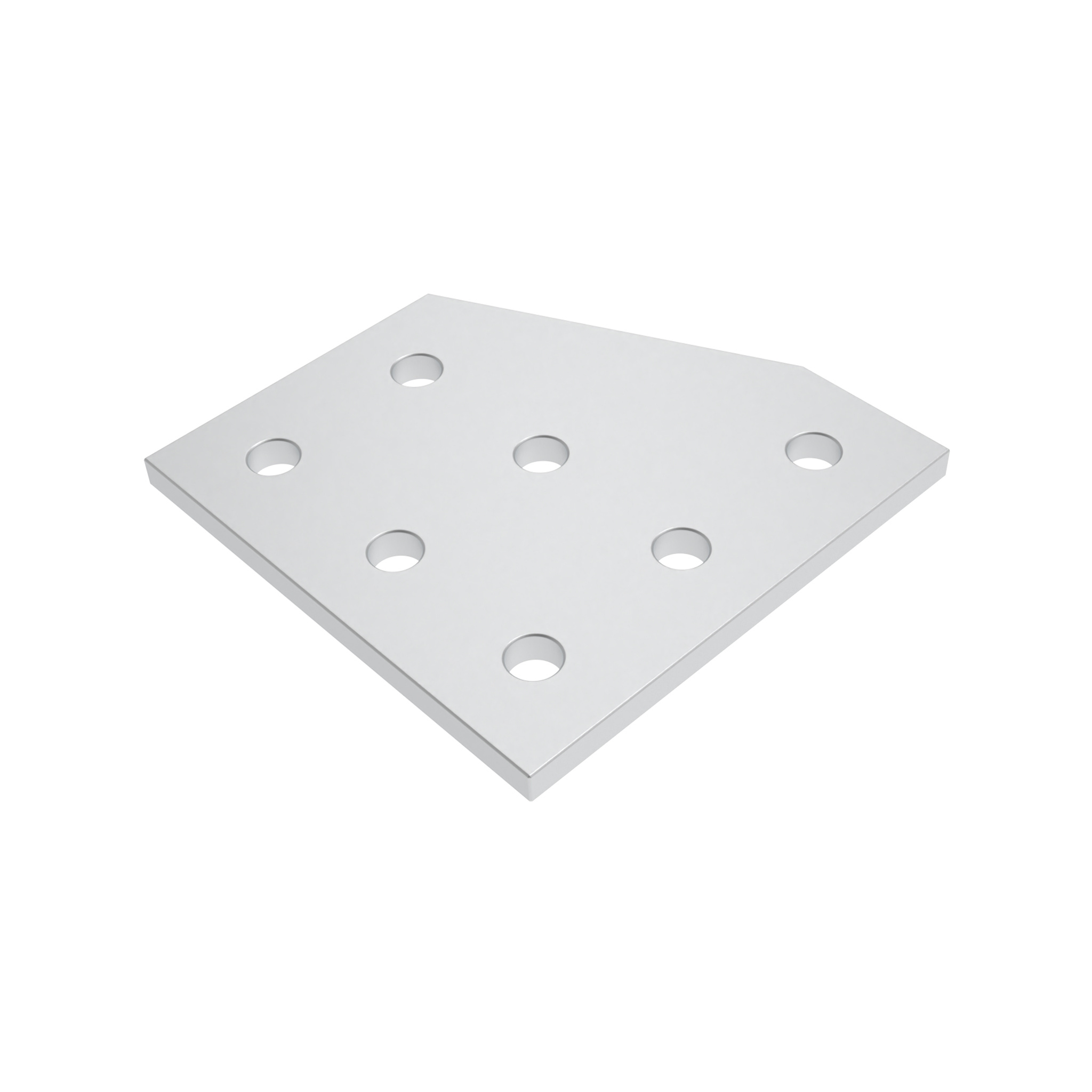

Ausführung: 76.2 / 76.2 - 3" / 3" | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | H (mm): 4.8 (0.19") | L (mm): 76.2 (3") | K (mm): 25.0 (0.98") | K (mm): 51.0 (2")

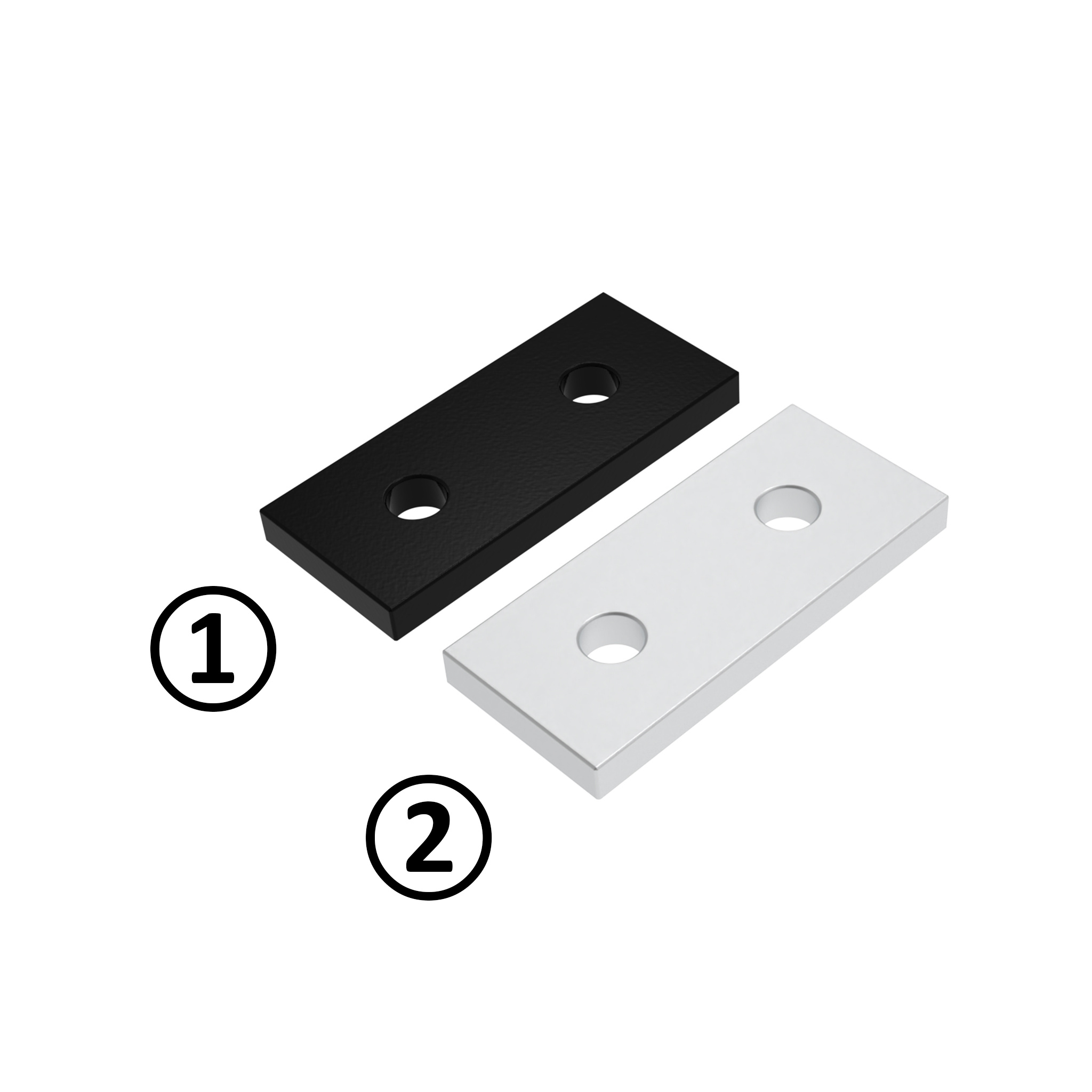

Abb.: ① | Ausführung: 25 / 51 - 1" / 2" | Farbe: schwarz | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 22.2 (0.88") | H (mm): 4.8 (0.19") | L (mm): 51.0 (2.01") | Oberfläche: pulverbeschichtet

Abb.: ② | Ausführung: 38 / 114 - 1.5" / 4.5" | Farbe: - | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 38.0 (1.49") | H (mm): 6.35 (0.25") | L (mm): 114.3 (4.5") | Oberfläche: eloxiert

Abb.: ① | Ausführung: 38 / 152 - 1.5" / 6" | Farbe: schwarz | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 38.0 (1.49") | H (mm): 6.35 (0.25") | L (mm): 152.4 (6") | Oberfläche: pulverbeschichtet

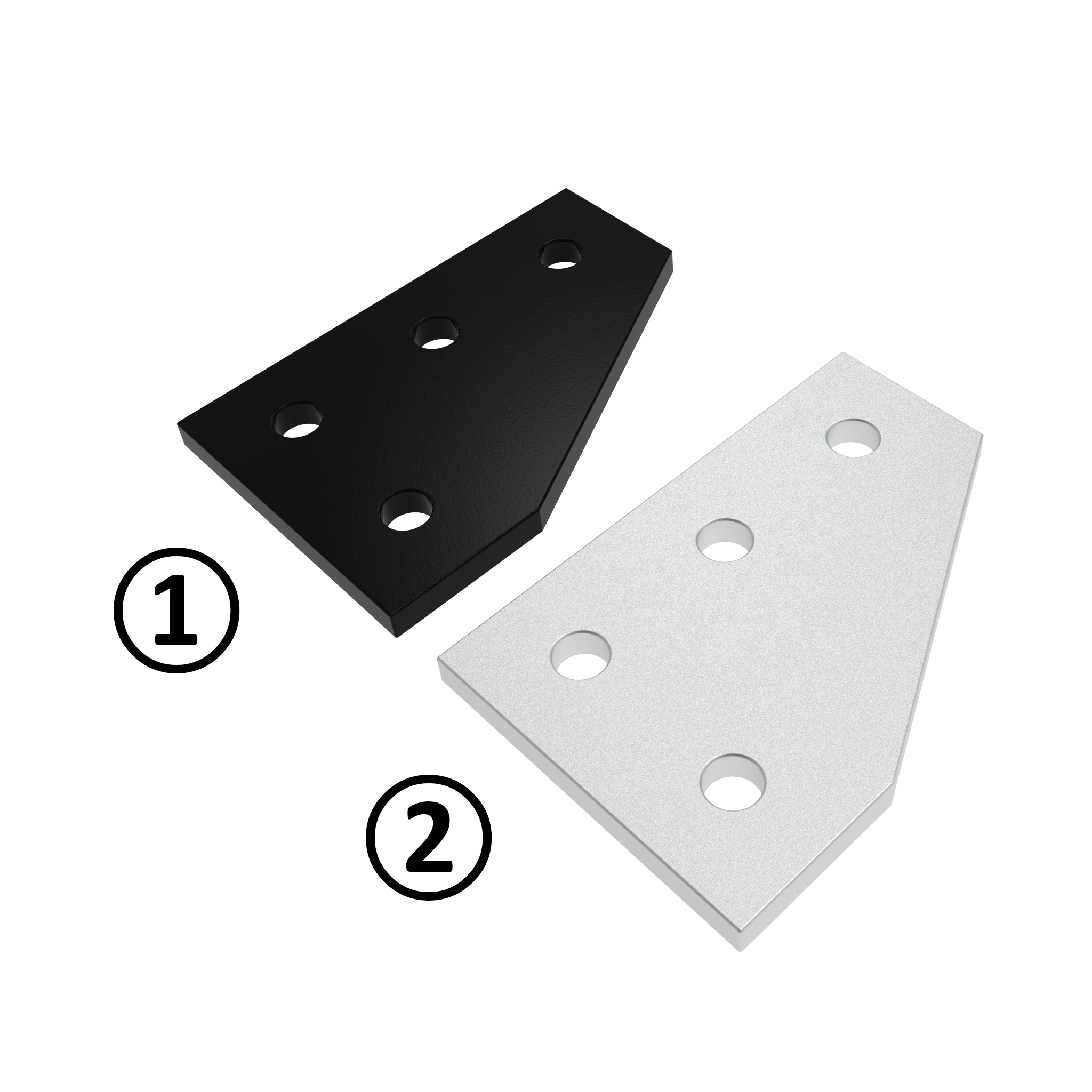

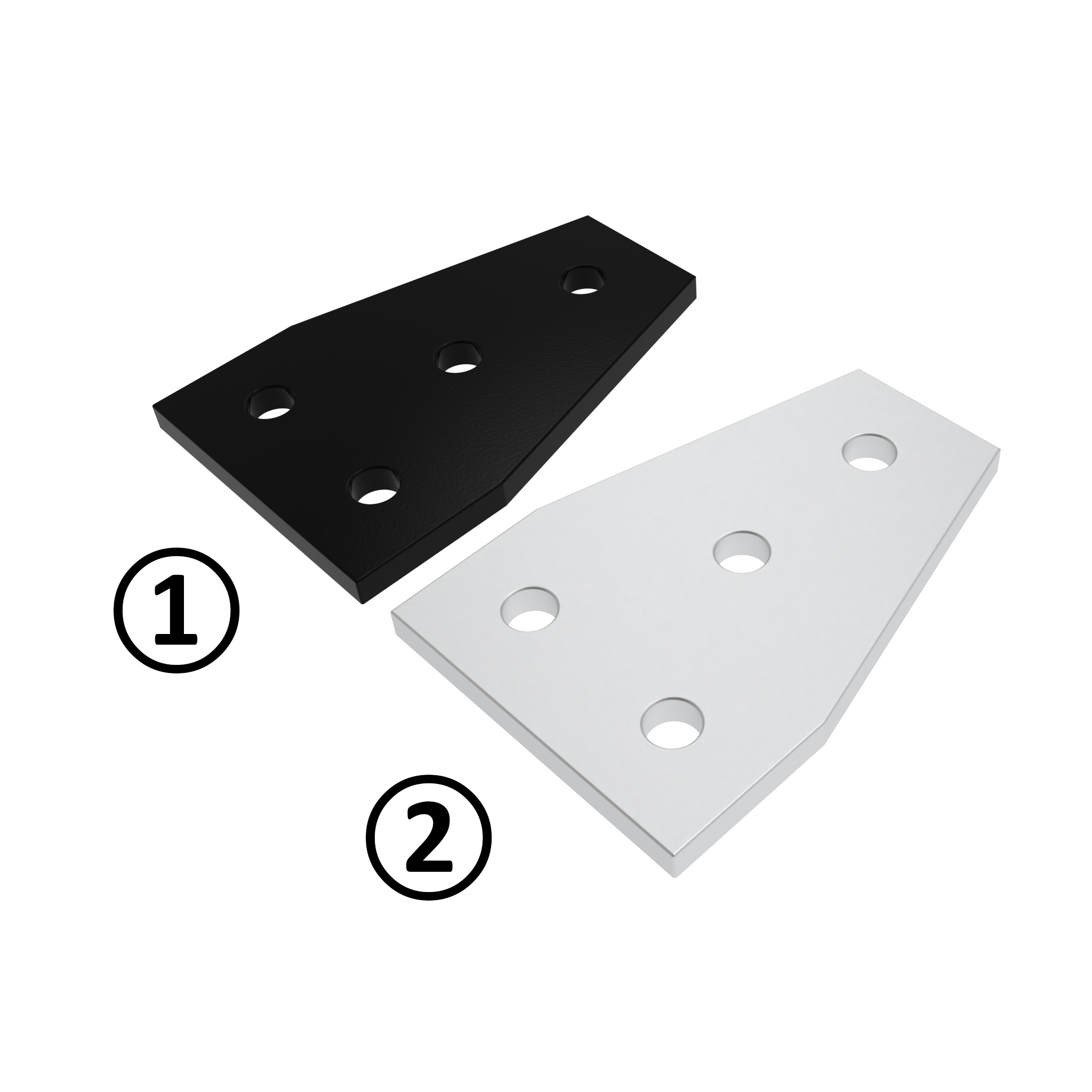

Abb.: ② | Ausführung: 50.8 / 76.2 - 2" / 3" | Farbe: - | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 50.8 (2") | H (mm): 4.8 (0.19") | L (mm): 76.2 (3") | Oberfläche: eloxiert

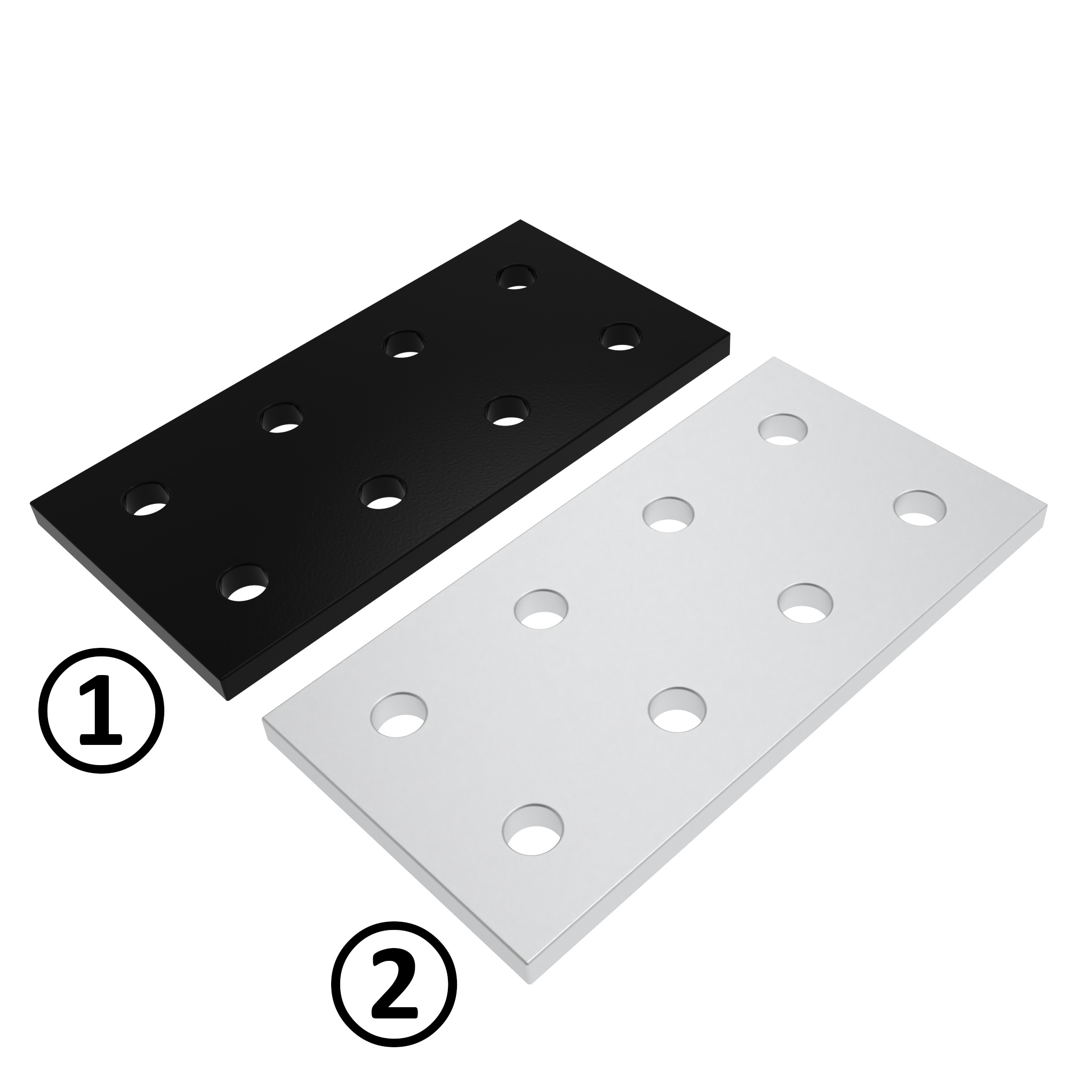

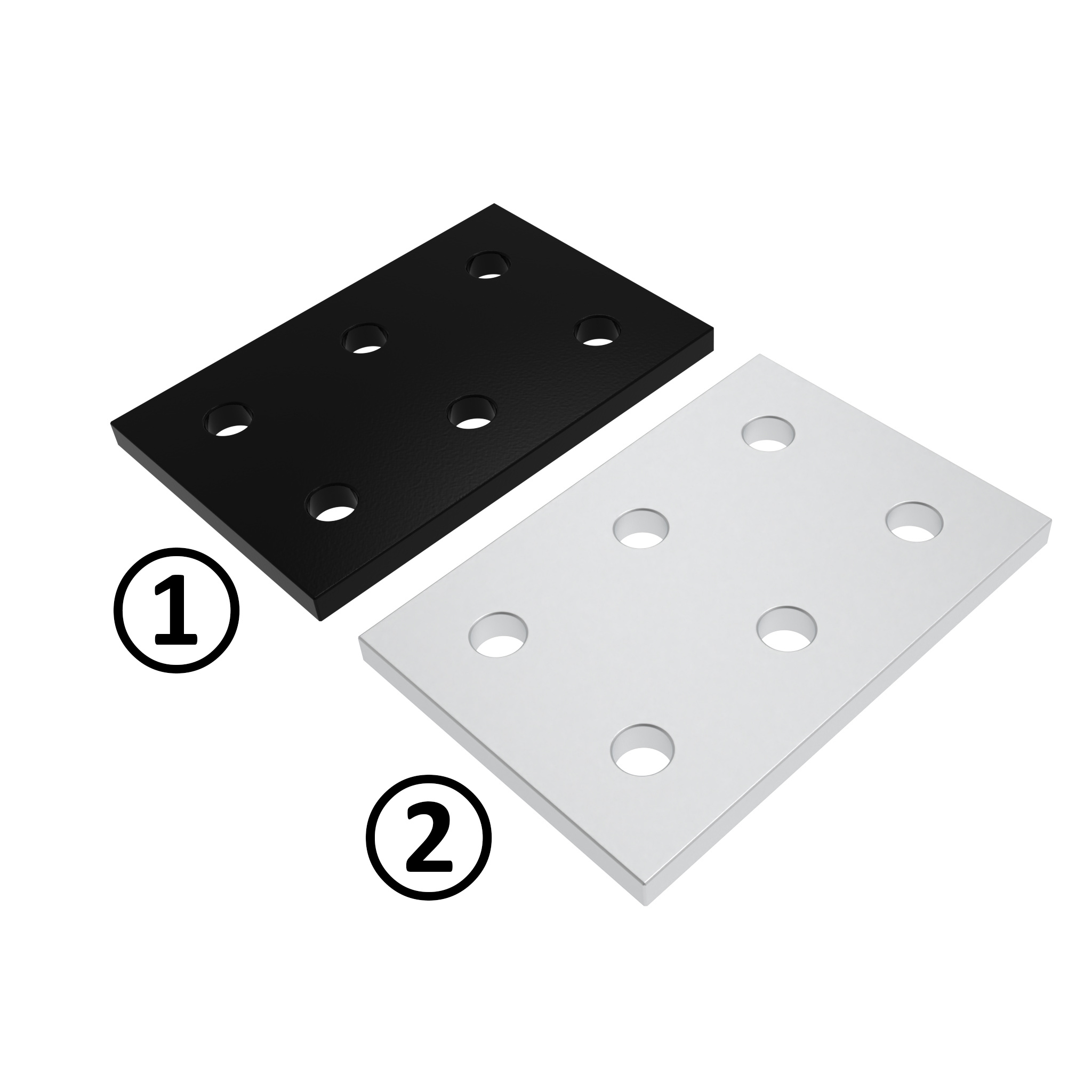

Abb.: ② | Ausführung: 50.8 / 101.6 - 2" / 4" | Farbe: - | ØD (mm): 7.0 (0.27") | A (mm): 25.4 (1") | B (mm): 50.8 (2") | H (mm): 4.8 (0.19") | L (mm): 101.6 (4") | Oberfläche: eloxiert

Abb.: ② | Ausführung: 152 / 152 - 5.98" / 5.98" | Farbe: - | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 152.4 (6") | H (mm): 6.35 (0.25") | K (mm): 71.0 (2.8") | L (mm): 152.4 (6") | Oberfläche: eloxiert

Abb.: ② | Ausführung: 76.2 / 114.3 - 3" / 4.5" | Farbe: - | ØD (mm): 9.0 (0.35") | A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | K (mm): 38.0 (1.49") | L (mm): 114.3 (4.5") | Oberfläche: eloxiert
