Miscellaneous Components

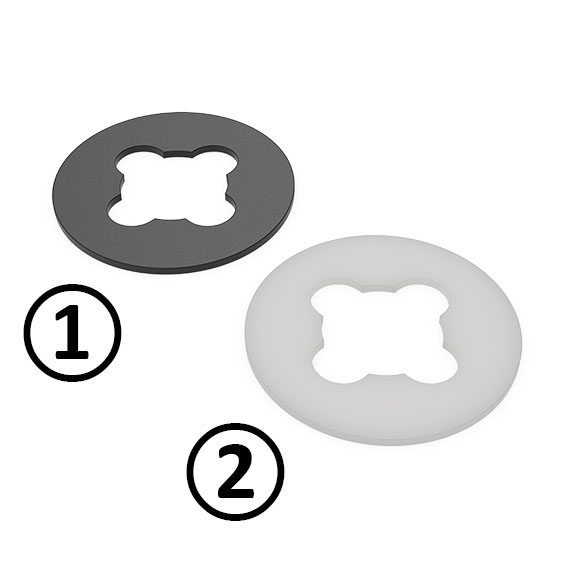

Anti-loss Washer
€0.00*
Color:
Natural
|
D1 (mm):
12.0
|
D2 (mm):
5.1
|
Fig.:
②
|
for Screw:
M6
Color:Natural / blackDelivery Countries:WorldwideDescription:To easily and fastly secure screwsMaterial:Plastic PASpecials:Other sizes on request

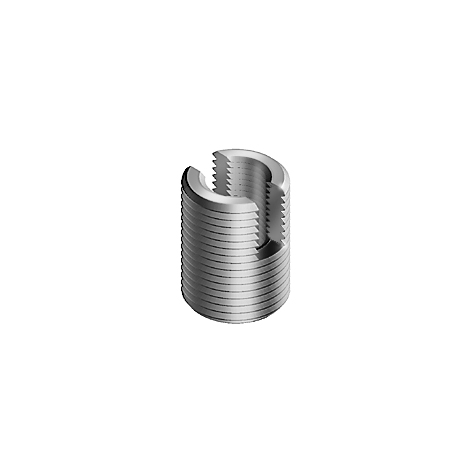

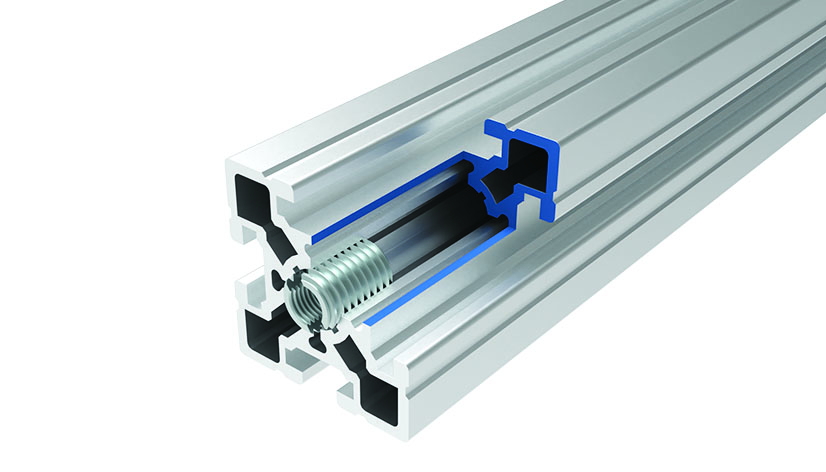

Cutting Bush
€0.00*
L (mm):
20
|
M:
-
|
Material:
Steel
|
Surface:
Blue zinc plated
Delivery Countries:WorldwideDescription:To fix leveling feet or transport and base plates to the aluminum profileMaterial:SteelSurface:Blue zinc plated

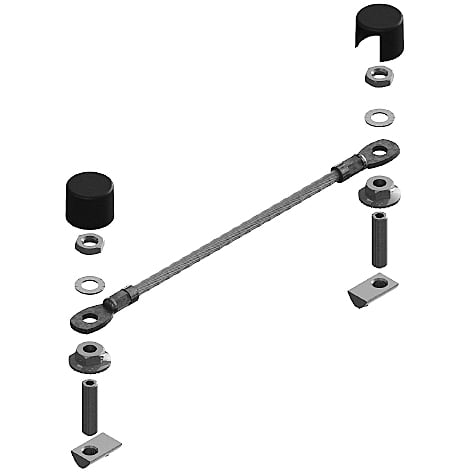

Grounding Connector (Set)
€0.00*
H (mm):
19.0
|
L (mm):
300.0
|
Profile:
I
|
Set:
Set 2
|
Slot N (mm):
8
Color:Cover caps: BlackDelivery Countries:WorldwideDescription:To electrically connect movable parts to each other as flexible grounding wire, and to create ESD electrically conductive connections between juxtaposed frames as equipotential bonding; large conductor cross-section (16 mm²), current carrying capacity 120 A max.Material:Earth lead: Copper Assembly material: Steel Cover caps: Plastic PA, glass fiber reinforcedSet 1:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 6 - M6, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M6 x 22 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M6 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 6,11, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6 (M = 25 Nm), 2 cover capsSet 2:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 8 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 300 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSet 3:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 8 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSet 4:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 10 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSurface:Earth Lead: Tin plated Assembly material: Zinc plated

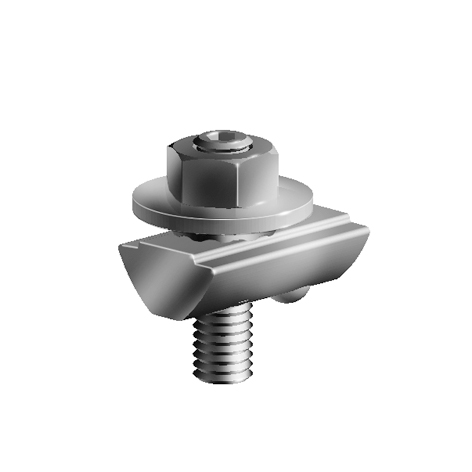

Grounding Terminal for T-slot
€0.00*
ESD:
ESD electrostatical discharging
|
Profile:
I
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To make an ESD electrostatical discharging connection between panel and aluminum profileMaterial:T-Slot Nut, grub screw, serrated washer: Steel Hexagon nut, washer: BrassSurface:Zinc plated

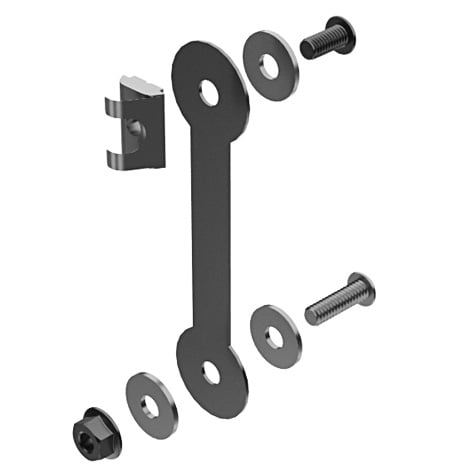

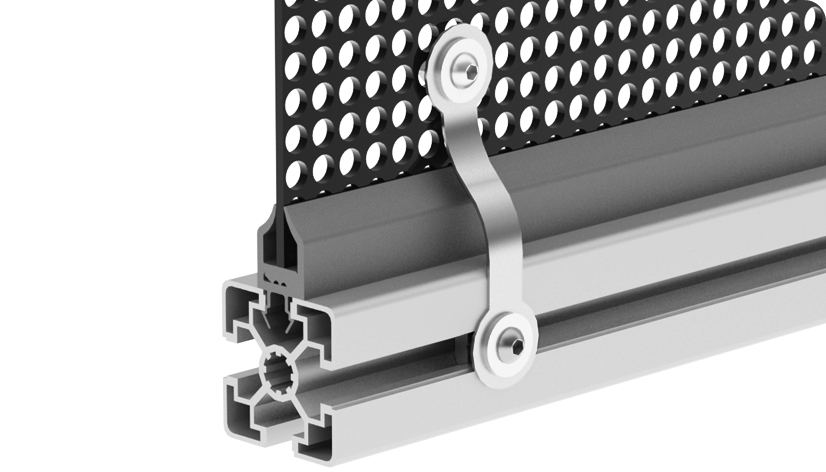

Potential Equalizer (Set)
€0.00*
ESD:
ESD electrostatical discharging
|
Profile:
B
|
Slot N (mm):
10
Delivery Countries:WorldwideDescription:To make an ESD electrostatical discharging connection between panel and aluminum profileMaterial:Stainless steel SS304Set:1 potential equalizer, 1 pan-head screw DIN EN ISO 7380 (DIN 34805) - M6 x 12, 1 -slot nut with spring, Nut 10 mit Steg, M6, 3 washers DIN EN ISO 7093 (DIN 9021) - 6.4, 1 flange nut DIN 9023 - M6, 1 pan-head screw DIN EN ISO 7380 (DIN 34805) - M6 x 20Surface:Plain

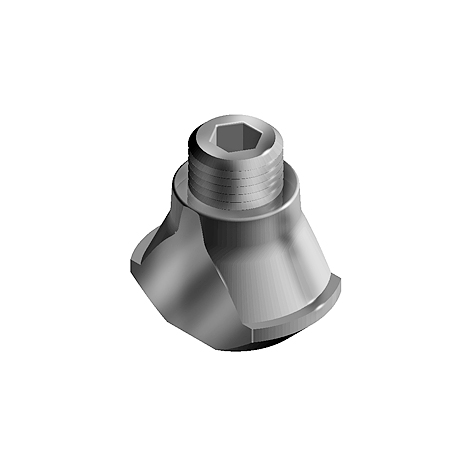

Potential Equalizer for T-slot
€0.00*
ESD:
ESD electrostatical discharging
|
Profile:
I
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To make an ESD electrostatical discharging connection between two slot 8 aluminum profilesMaterial:SteelSurface:Zinc plated

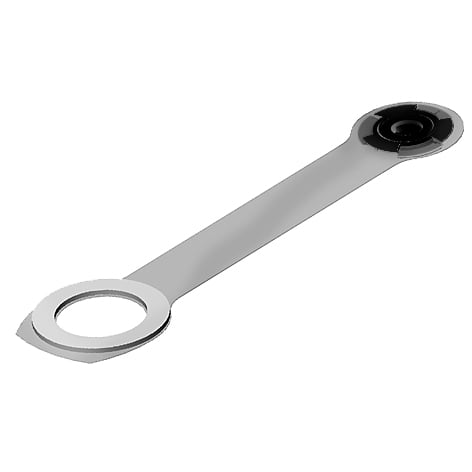

Safety Strip STRAPTIE
€0.00*
B (mm):
23.2
|
F (mm):
39.0
|
L (mm):
110.0
|
M:
M10
|
R (mm):
46.7
|
Version:
With print
|
ØK (mm):
33.2
Color:Clear / blackDelivery Countries:WorldwideDescription:To easily and fastly secure screws, according to Machinery Directive 2006/42/ECMaterial:Strap: Plastic PVC Shim: Plastic PA, glass fiber reinforced

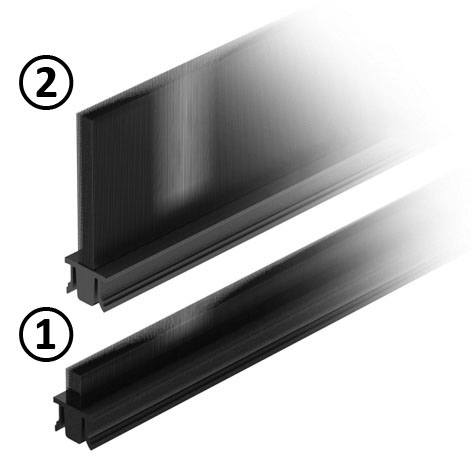

Strip Brush
€0.00*
B (mm):
12.0
|
D (mm):
1.5
|
ESD:
-
|
FH (mm):
10.0
|
Fig.:
①
|
H (mm):
8.5
|
Slot N (mm):
8
|
ØFD (mm):
0.2
Color:Body: Black Bristles: BlackDelivery Countries:WorldwideDescription:V_To tighten, carry, clean, guide and fixMaterial:Body: Plastic ABS Bristles: Plastic PASpecials:Other sizes (FH, ØFD), polyester PBT bristles for exterior and humid areas on requestSurface:Bristle: Smooth
