Product Portrait


Cable Fixations

Guide cables and lines in an orderly manner and fix them securely with the appropriate cable fixation from FATH


Cables and lines on devices, work stations, system arms, machines and plants should be guided cleanly and fixed securely. The safety aspect is especially important for moving objects.

Cable ties or hook-and-loop tapes

Cables are often fixed to frames and racks with cable ties or hook-and-loop tapes. Cable ties are inexpensive and widely used, but a one-off solution. Hook-and-loop fasteners, on the other hand, are also suitable for the subsequent addition or removal of cables and lines.

Clearly defined fixing points

In order to keep posts and struts free of surrounding cable ties or hook-and-loop tapes, sturdy fastening points are used. On the opposite side of the aluminum profiles, there is then nothing to be seen of the fixation of the cable guide. The number of fixing points can be selected according to requirements - it therefore also specifies the distance at which the cables have to be fixed.

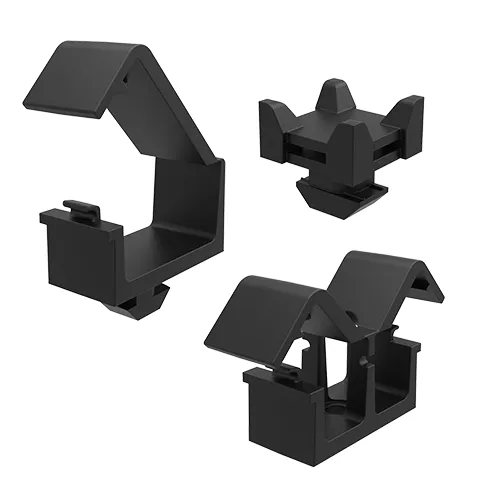

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • available in different versions
  • easy fastening in the groove
  • flexible solutions for dynamic workplaces
  • clean guidance & safety

FATH cable fixation blocks to simplify fixing in the slot

As an elegant solution for the realization of such fixing points, FATH offers a wide range of cable fixation blocks. The special: The FATH cable fixation blocks can be fixed directly in different slots of aluminum profiles. Screw-on versions are also available.

Would you like to do completely without cable ties and hook-and-loop tapes when routing cables? Then the special clip cable binders from FATH are your solution.

The blocks are used in combination with cable ties or hook-and-loop tapes and optimize cable routing. The stable fixation protects against rubbing and cable damage. With the easy-to-install cable fixation blocks you not only create order, but also ensure safety and aesthetics in the production area.

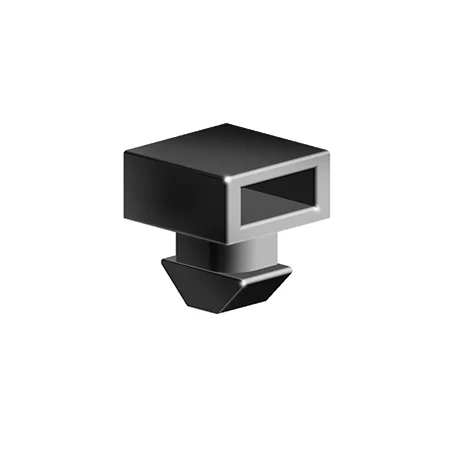

Cable Binder Block

The cable binder block is a solution for cable guides that run lengthwise to the aluminum profile. The block is mounted by a quarter turn in the slot.

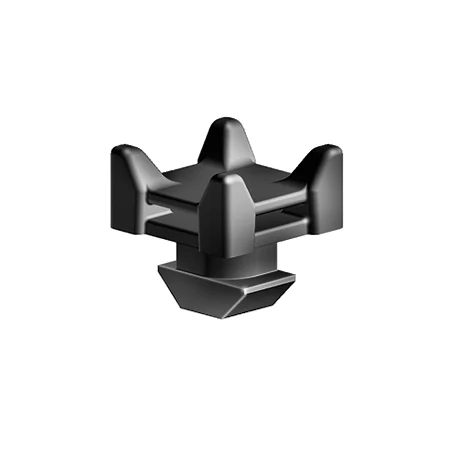

Cross Cable Binder Block

The cross cable binder block is suitable for both lengthwise and crosswise running cables. Also with this solution, the block is mounted in the slot profile by a quarter turn.

Clip Cable Binder

If clip cable ties are used, no more cable ties or hook-and-loop tapes are needed. The re-closable clip cable binders can be attached to the aluminum profile with a quarter turn using a slot hammer. The clip cable binders are available as a version with one chamber or with two chambers, the latter including clamping ring to prevent cables from slipping.

You would like SEE ALL Cable Fixations?

Discover all the options for organized cable management here.


To Cable Management

Hook-and-loop Block: Flexibility for more or less cables

Perfect order without cable tie and hook and loop tape: Clip Cable Binders and Snap-cable-binding from FATH

If you want to lay cables directly in the slot, you can close the profiles with the FATH cover profiles and thus optimally protect the cables.

Hook-and-loop Blocks

Hook-and-loop blocks allow cables and lines to be added and removed. With the special slot hammer 45° the hook-and-loop blocks can be mounted lengthwise or crosswise to the slot. The hook-and-loop blocks can also be easily mounted by turning them an eighth of a turn in the slot. The hook-and-loop tape is included in the delivery.

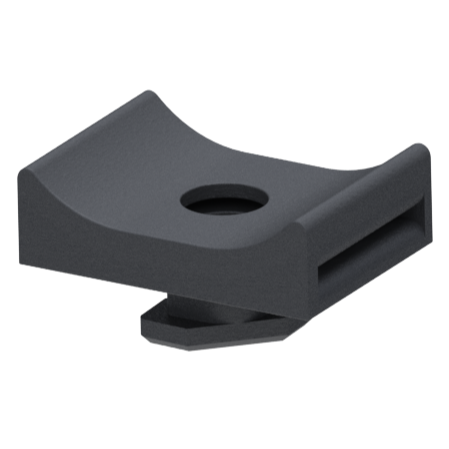

Universal Cable Binding Block

If fixation in a slot profile is not desired, screw-on solutions for cable fixation are available. However, they are also used if the fixing point is to be screwed into the slot. The universal cable fixation blocks are available as versions for cable ties, hook-and-loop tapes or as clip cable binders.

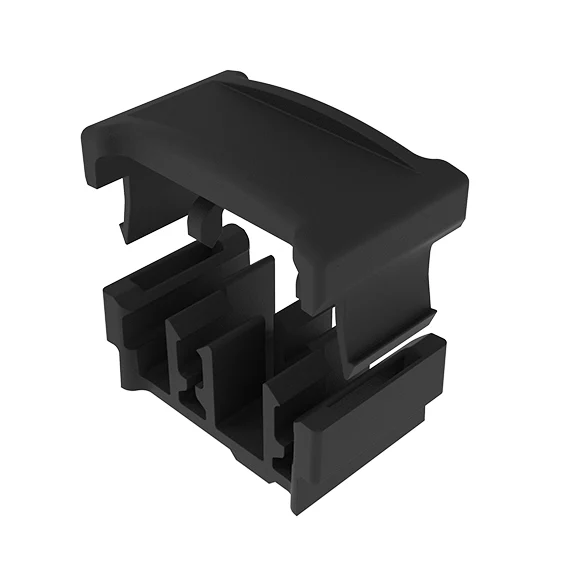

Snap-cable-binding

This special solution from FATH for cable mounting provides four defined snap-in cable slots. The special plug-in geometry accepts different cable diameters and at the same time provides strain relief for the cables. Optional cover caps with hooks close the cable fixation securely. In addition to slot hammers for aluminum profiles, there are versions with snap hammers for fixing in holes of panel elements or metal sheets.

CAD Downloads


TO CAD DOWNLOAD

VERSIONS

Skip product gallery
Cable Binder Block
Color:BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles; can be mounted into the slot by a quarter turnMaterial:Cable binding block: Plastic PA, glass fiber reinforced Velcro® strap: Plastic PE (hook), Plastic PA (loop)Specials:Customized hammer, other colors on requestZolltarifnummer:39269097900

€0.00*

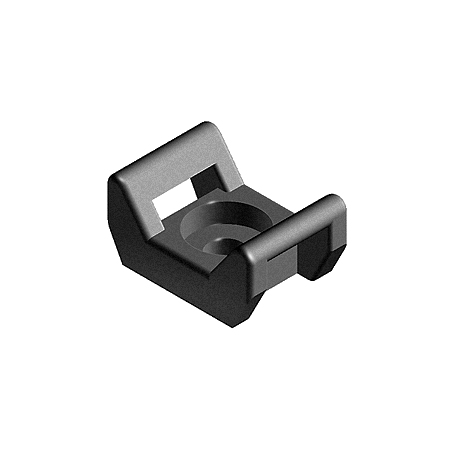

Universal Cable Binding Block
Color:BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles; to be mounted with a hammer nutMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Hammer Nuts see 096H0610 et seq.Zolltarifnummer:39269097900

€0.00*

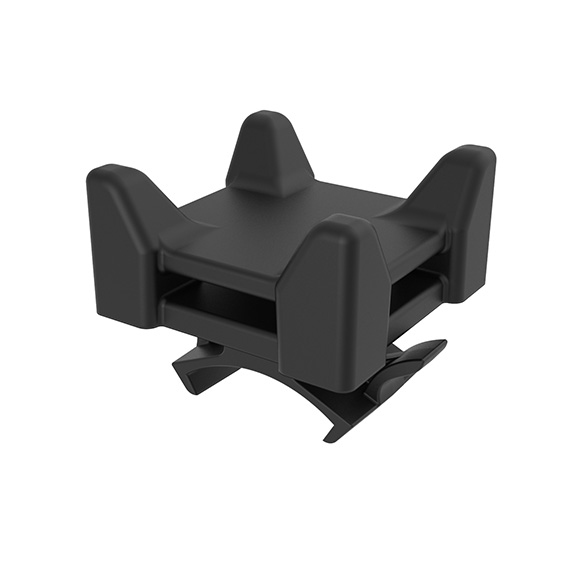

Cross Cable Binder Block D28
Color:BlackDelivery Countries:WorldwideDescription:To fasten cables and tubes parallel to the slot, simple click-in assemblyMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Velcro® strap for Cross Cable Binder Block D28 see 340ME8200KLZolltarifnummer:39269097900

€0.00*

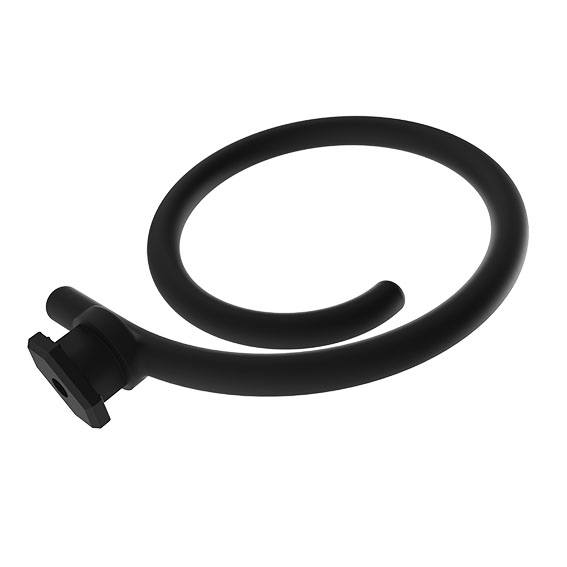

Ring Cable Binder
Color:BlackDelivery Countries:WorldwideDescription:For guiding cables both lengthwise and crosswise to aluminum profiles without additional cable ties, simple to insert due to spiral shape; can be mounted into the slot by an eight of a turnMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestZolltarifnummer:39269097900

€0.00*
