Product Portrait
Flowsort® - Intralogistics Automation Technology
Intralogistics reinvented – modular, simple, scalable
As a leading intralogistics automation provider, Flowsort offers innovative solutions tailored to optimize efficiency and streamline operations across various industries. The Flowsort product portfolio consists of standardized sorting and transfer modules. All Flowsort sorting modules harmonize with all other intralogistics systems and technologies. They are easy to install, both in terms of hardware as well as for the software connection.
The conceptual design ensures a high degree of scalability and offers a completely new level of flexibility: sorting performance and layout can be adjusted to meet current requirements at any time. Even retrofitting existing intralogistics systems can be easily implemented with Flowsort. And all this comes in a fresh and modern design! The „Flow“ ensures that the sorted material is diverted particularly gently, without abrupt braking or mechanical force. This makes Flowsort sorting systems suitable even for fragile goods.
The energy consumption of the modules is very low due to the operation with 24 V motors. This enables energy savings and benefits the environment. Designed and manufactured in the EU, Flowsort sorting modules are very robust and ensure reliable operation of the automatic sorting system.
HIGHLIGHTS
- Sorting performance: up to 8,000 products per hour
- Plug & Play: easy integration in conveyor systems saves planning and installation time, as our systems come with pre-written, downloadable function blocks
- Modular: innovative standard modules for maximum flexibilit
- Scalable: sorting systems can be easily expanded at any time
- Gentle transport: Redirection of products in „Flow“ - no abrupt braking or excessive mechanical force

THE SOLUTION TO CURRENT INTRALOGISTICS CHALLENGES
In the distribution sector, smaller decentralized distribution centers are increasingly needed to ensure fast deliveries in conurbations. New automation technologies are needed to meet this challenge. Flowsort sorting modules are straightforward, flexible, quick to install, system independent and highly scalable. This makes the Flowsort modules perfect for streamlining intralogistics processes and setting up smaller distribution centers.
Versions

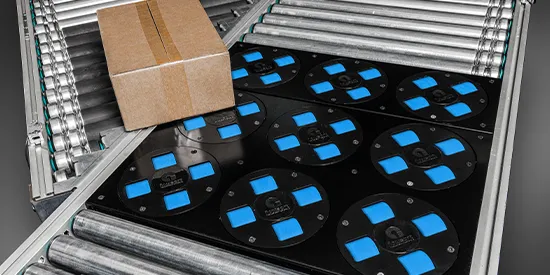

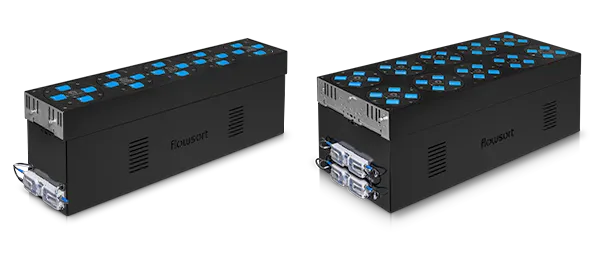

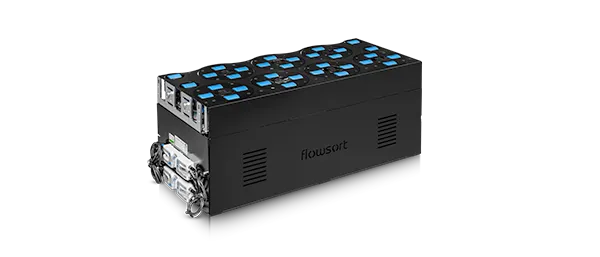

HIGH SPEED DIVERTER ECOFLOW
SLD = Single Line Diverter
DLD = Double Line Diverter
The Flowsort sorting modules are high-speed sorters that can be incorporated into any conveyor system. We use a modular system that you can configure according to your needs. For example, when you need a 3-row system, you connect an SLD (1-row) and a DLD (2-row) together - all plug & play.


ZZ= “ZigZag” Diverter
The ZZ-Diverter is a high-speed sorter in which the deflection discs are arranged in a zigzag line. This design allows the sorting of small packages with a size of at least 80x80mm.

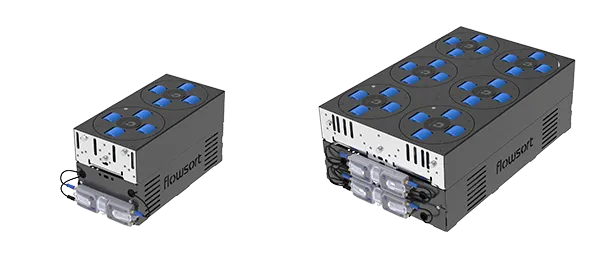

SPEEDFLOW COMPACT
Introducing our smallest, lightest, yet fastest solution, the SpeedFlow Compact, available as SLD and DLD.
The reduced height of only 227 mm allows micro fulfilment centres to have more layers above each other. With an astonishing speed of 2m/s, we can achieve up to 8,000 products per hour throuput. The outstanding performance and slim design enables reliable and cost-effective sorting, even with limited space.

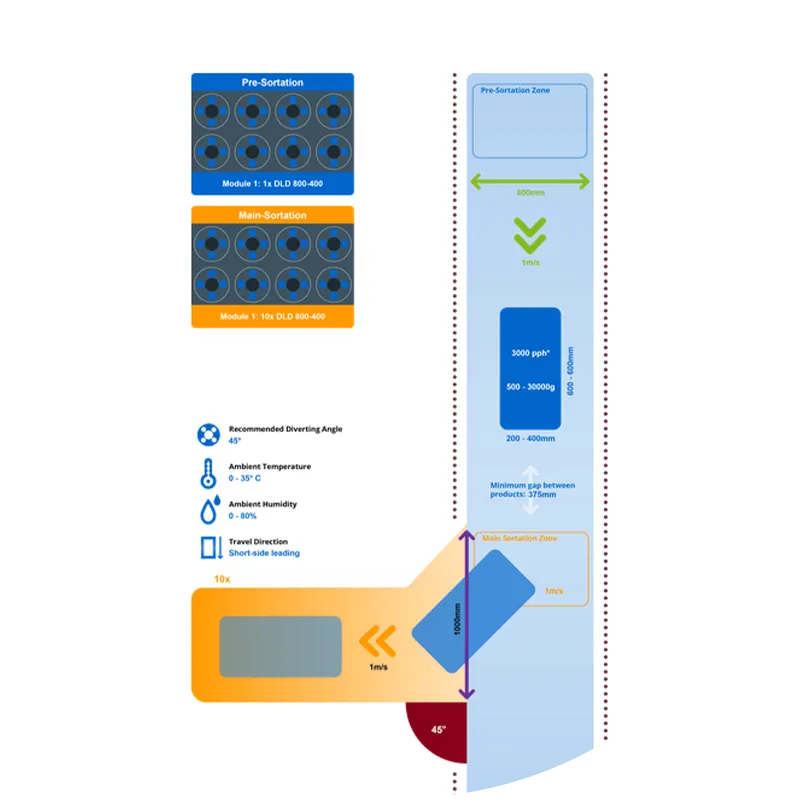

TRY OUR ONLINE CONFIGURATOR TOOL
...and see how our solutions can fit into your application.

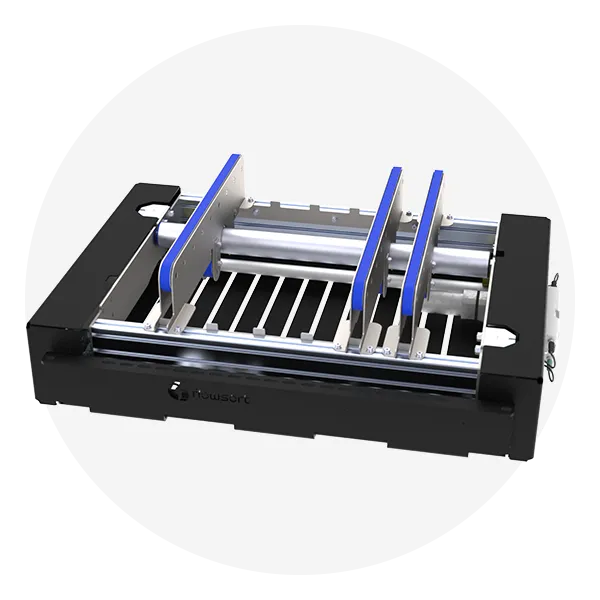

X-FLOW 90
X-Flow 90 is an innovative solution for effortless product transfer at +-90° degrees. The robust design ensures durability and stability. The belts are made of a special, high-grip composite material and are guided internally, which prevents them from jumping off the rollers. Benefit from the flexibility of leading edge orientation and the easy installation with custom flanges.
Features:
- Up to 50 kg lift capacity
- Can handle packages as small as 150 x 150 mm
- Innovative belt technology with internally guided high-grip belts
- Usable with any conveyor systems (even exisiting ones) based on customized flanges
- Easy installation with ready-to-use function blocks for all common PLC system

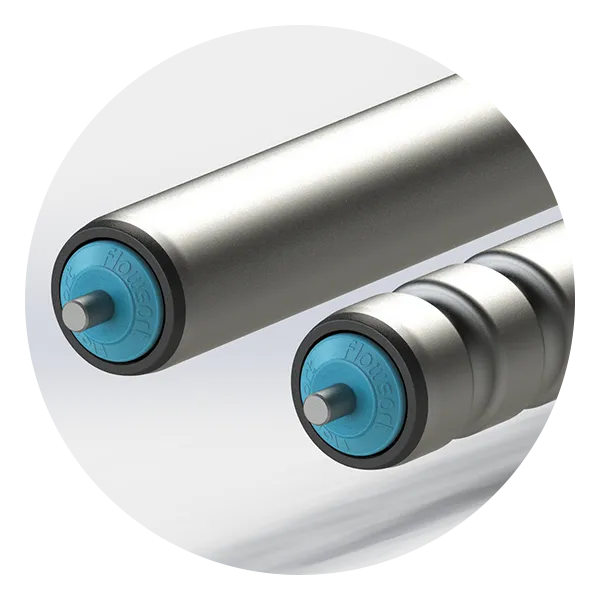

FLOWSORT ROLLERS
Upgrade your conveyor systems with ease! Our range of conveyor rollers are designed to meet the diverse demands of modern material handling systems. We are ready to tackle any challenge with a wide range of solutions. Durable, efficient, and highly customizable, our rollers ensure smooth and reliable performance for your operations.
Features:
- Low noise, high-speed
- Smooth operation
- Easy application
- Available in various sizes, diameters and materials

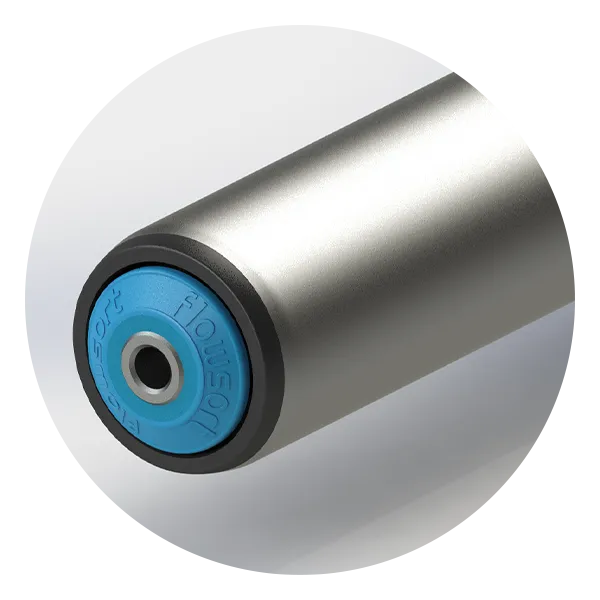

GRAVITY ROLLERS

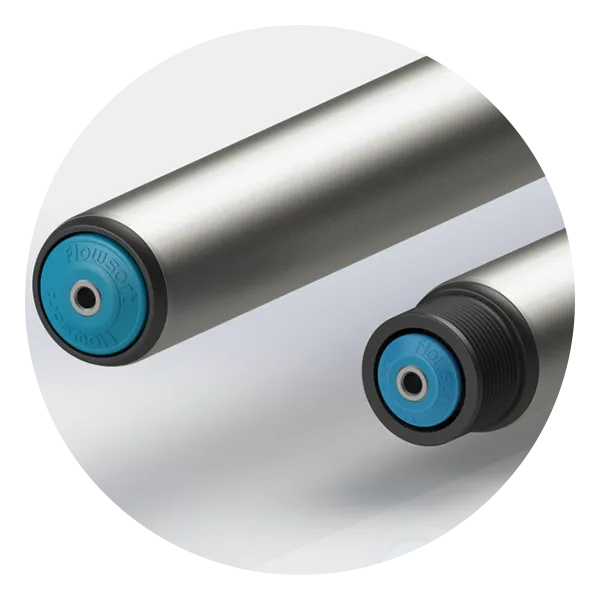

O-BELT GROOVED

POLY-V ROLLERS

Flowsort® - Intralogistics Automation Technology
Discover all modules, customer examples and partners at flow-sort.com. We would be happy to advise you personally on the appropriate configuration, or you can use our Flowsort online configurator directly.

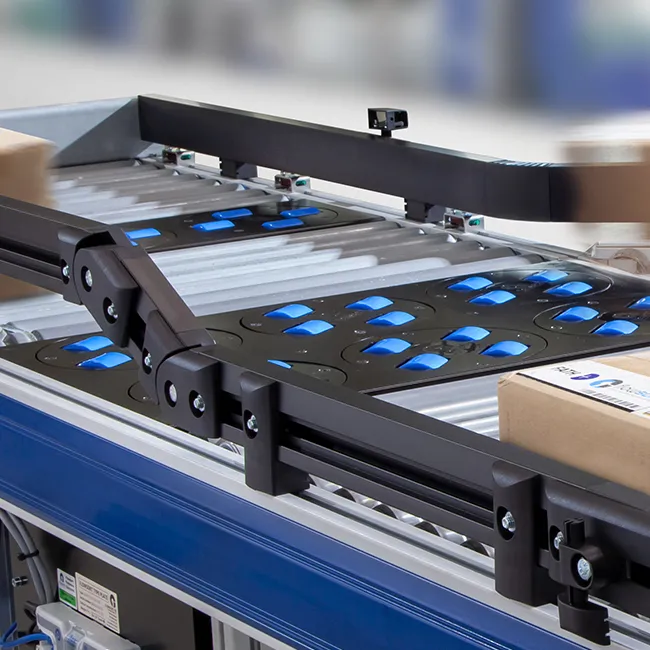

FLOWGUIDE
Optimize your intralogistics - with our FLOWGUIDE lateral guidance components for roller conveyors, you can transport goods safely and efficiently.
