Efficiently structure production processes and the flow of goods and information with FATH Inserting Systems

FATH Inserting Systems for document sizes DIN A4, DIN A5 and 1/3 DIN A4 are a simple tool for implementing the Kanban principle in line with lean production. This creates an efficient organizational structure that ensures oversight in daily production operations. The inserting system boxes ensure a seamless process in the provision of information and materials. The desired sequence for order processing can be controlled by using the inserted cards.

Single compartment, Kanban box or Kanban board: In day-today operations, the inserting system boxes provide quick access to the relevant information and allow processes to be put in the right order.

Practical wall mounting for clear structure and quick oversight: Sturdy metal wall brackets for screwing onto profiles, walls or machines are available as accessories for all FATH inserting system boxes. This means you can implement your individual inserting system and quickly and easily adapt it to changing requirements at any time.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Inserting boxes for sizes DIN A4, DIN A5 and 1/3 DIN A4
  • Wall mounting, e.g., for Kanban boards
  • Break-proof wall file pocket for single use, e.g., as a mailbox
  • Simple and clear provision of information throughout the entire shopfloor

INSERTING SYSTEM BOXES FOR WALLS AND KANBAN BOARDs

Boxes for A4 documents hold construction drawings, shipping documents, etc. If the A4 documents are folded, A5 inserting system boxes can be used and the space requirement will be significantly smaller. When placed one below the other, the individual inserting system boxes create a column that can be used as a Kanban board. The boxes show which activity is to be processed next or what should be produced in the next step. A system as simple as it is efficient.

Kanban Board: FATH INSERTING SYSTEM FOR KANBAN CARDS

The 1/3 DIN A4 boxes are specially designed for Kanban cards in accordance with the VDA standard. When the material is used up, the Kanban card is removed from the Kanban container and inserted into the corresponding box on the Kanban board. This signals the need for replenishment and the production can be continued without lead times being affected. That‘s lean!

VERSIONS

FATH Inserting Systems are available in the following versions:


Systems / document size Inserting system boxes for column formation:

  • DIN A4 portrait
  • DIN A5 landscape
  • 1/3 DIN A4 portrait / VDA standard


with additional viewing windows in:

  • 1/3 DIN A4 landscape, small & portrait, large
  • DIN A4 landscape, small & portrait, large
  • DIN A5 landscape, small & portrait, large

Skip product gallery

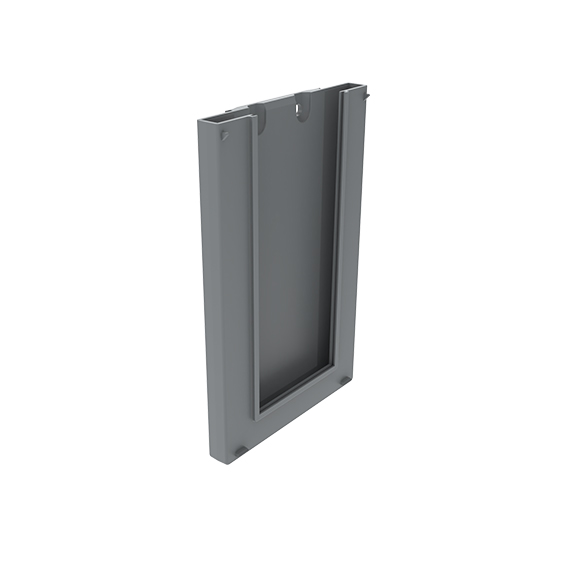

Inserting Box 1/3 DIN A4 Portrait - 8.3" x 3.9"
Color:GrayDelivery Countries:WorldwideDescription:For holding KANBAN cards, column formation through special design possible, modular constructionMaterial:Plastic ABSTip:Compatible Magnet see 02021M15S01, Compatible Window see 02052E04A1-301 Compatible Labels see 02052E0116015Zolltarifnummer:39269097900

€0.00*
Inserting Box DIN A4 Portrait - 8.3" x 11.7"
Color:GrayDelivery Countries:WorldwideDescription:For holding KANBAN cards, column formation through special design possible, modular constructionMaterial:Plastic ABSTip:Compatible Magnet see 02021M15S01, Compatible Window see 02052E04A4P Compatible Labels see 02052E01A4L3015Zolltarifnummer:39269097900

€0.00*
Inserting Box DIN A5 Landscape - 8.3" x 5.8"
Color:GrayDelivery Countries:WorldwideDescription:For holding KANBAN cards, column formation through special design possible, modular constructionMaterial:Plastic ABSTip:Compatible Magnet see 02021M15S01, Compatible Window see 02052E03A5L Compatible Labels see 02052E01A5L7015Zolltarifnummer:39269097900

€0.00*

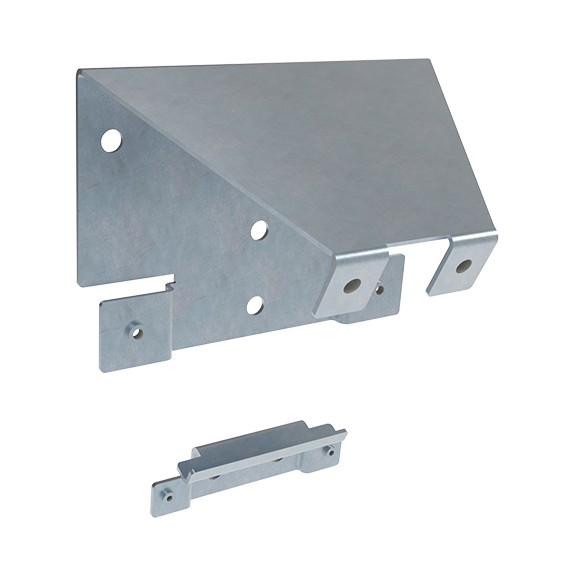

KANBAN Wall Bracket for Inserting Boxes
Version: KANBAN Wall Bracket Support Angle for Inserting Boxes
Delivery Countries:WorldwideDescription:Screw-on wall bracket for mounting inserting boxes on walls or whiteboardsMaterial:SteelTip:Compatible Magnet see 02021M15S01, Compatible Window see 02052E03A4P Compatible Labels on requestZolltarifnummer:73269098900

€0.00*

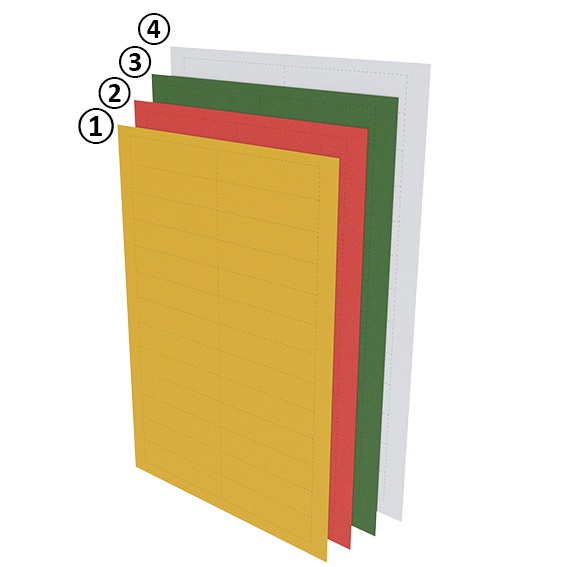

Label for Windows Inserting Boxes
Color: Yellow | L x B (mm): 199 x 39 | Version: For DIN A5 Landscape - 7,8" x 1.5", small
Color:Yellow, red, green, whiteDelivery Countries:WorldwideDescription:For easy labelling of inserting boxes with windowsTip:Compatible Inserting Box DIN A5 Landscape - 8.3" x 5.8" see 02052A5L75 Compatible Inserting Box 1/3 DIN A4 Portrait - 8.3" x 3.9" see 02052A1/375 Compatible Inserting Box DIN A4 Portrait - 8.3" x 11.7" see 02052A4P75 Compatible Window for Inserting Boxes see 02052E03A1-301Zolltarifnummer:48219090000

€0.00*

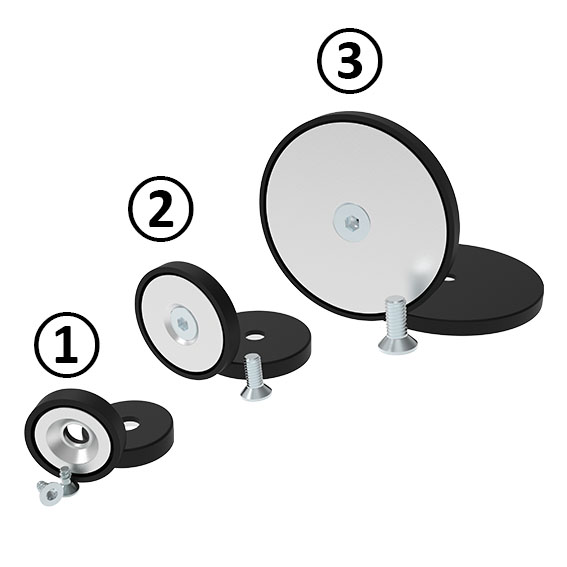

Magnet for Inserting Systems (Set)
Fig.: | Set: Set 3 | Version: KANBAN Wall Bracket for Inserting Boxes | ØD (mm): 40
Delivery Countries:WorldwideDescription:To attach inserting boxes or wall file pockets to magnetic surfacesMaterial:Magnets: NeodymiumSet 1:2 magnets Ø 15 mm 2 screws M4 x 12Set 2:2 magnets Ø 20 mm 2 screws M4 x 12Set 3:2 magnets Ø 40 mm 2 screws M4 x 12Zolltarifnummer:85051990890

€0.00*

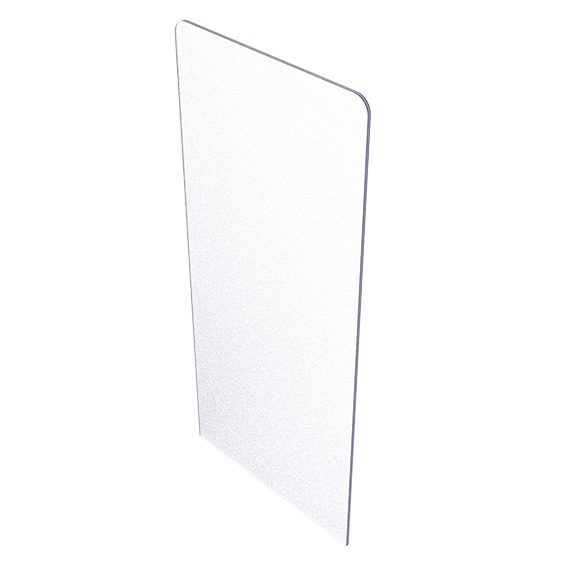

Window for Inserting Boxes
Version: 1/3 DIN A4 - 8.3" x 3.9" - Landscape, small
Delivery Countries:WorldwideDescription:See through insert to protect cardboard inlays of inserting boxesMaterial:Plastic PETZolltarifnummer:39269097900

€0.00*

WOULD YOU LIKE TO Test THE FATH inserting systems?

With our sample package, you can quickly decide whether the product is right for you.


Go to sample packages

WALL FILE POCKET: COMPREHENSIVE INFORMATION UNDER CONTROLS

FATH screw-on Wall File Pockets made of break-proof plastic can serve as a single compartment for a stack of documents or for files of all kinds, such as orders with multi-page drawings and test reports, or as a collection box for Kanban cards. There is also room in the holders for thicker document stacks and process folders. In the logistics and production process, they provide a quick overview and full transparency in another respect: FATH Wall File Pockets are themselves transparent.

FATH Wall File Pockets have two parts. The solid plastic mounting plate is screwed to the wall, the machine or the profile. The transparent front part can easily be snapped into place on this sturdy bracket. The front of the inserting system box is cut out for quick access to smaller documents. The Wall File Pockets are made of extremely shatterproof special plastic and can be used in any production environment.

VERSIONS

FATH Wall File Pockets are available in the following versions:


Wall File Pockets as single compartment:

  • DIN A4 portrait & landscape
  • DIN A5 portrait & landscape
Skip product gallery
Wall File Pocket

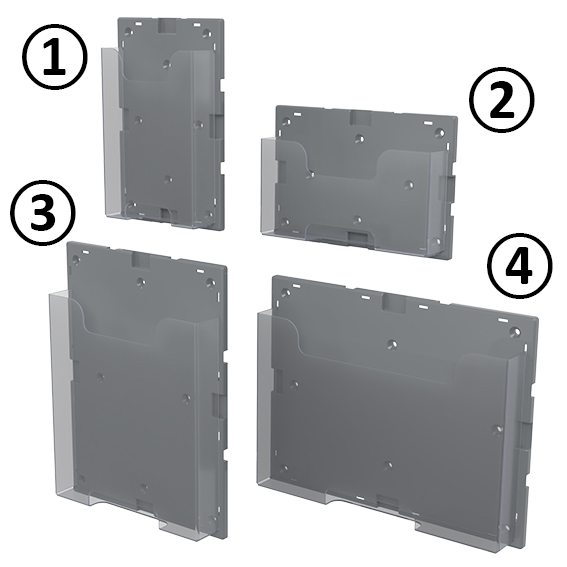

Fig.: | Set: Set 1 | Version: DIN A5 - 8.3" x 5.8" - Portrait
