PARKING RAILS

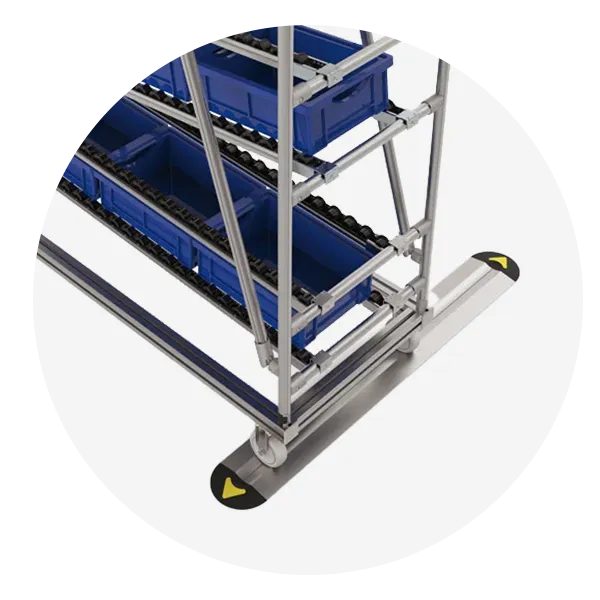

PARKING RAILS Precise, space-saving and safe positioning of Dollies

Lean your production processes in a simple way with the FATH parking rails. The parking rails mark the exact parking positions for dollies or in-house trolleys.

By driving onto the rails, each employee automatically parks the wagons always accurately at the right position.

The required material is thus immediately available in the movement and gripping space of the assembly worker - targeted, structured and always in the right quantity. Even when robots are used, the parking rails ensure precise material supply. A waste of space is avoided by the orderly use of the floor and adjoining processes are not disturbed due to the low construction height of 6 to 10 millimetres - if no drollies are parked, the space can be freely used. High loads, such as driving over with industrial trucks, are no problem for the robust aluminum rails.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Precise positioning of dollies and wagons
  • Clear order in material management
  • Efficient use of space
  • More safety in the shopfloor area
  • Easy installation: place, glue down, ready to use
  • One-piece signal end caps are separately available

Ready to use! Simple installation without tools

The aluminum parking rails from FATH are underside coated with a high-performance industrial glue that guarantees extremely high adhesion.

Remove the protective film, lay on the parking rails, stick the rails onto the floor over their entire surface - that's it!

Small uneven areas in the floor and expansion gaps are compensated by the adhesive. The different height versions of the parking rails are designed for the different loads of the dollies.

This guarantees easy entry and exit as well as a secure hold for lighter and heavy dollies. Since the resistance when driving onto the rails is very low, the handling of the floor rollers is smooth and protects the back – a plus for ergonomics at the work place.

The parking rails consist of two rail halves and can be adapted to the roller size of the trolleys by selecting the appropriate distance.

GREATER SAFETY: DEFINED PARKING POSITION AND SIGNAL EFFECT FOR MORE SAFETY

The parking rails secure the floor dollies against unintentional movement. When filling or removing material, the carts are reliably held in position - even on uneven floors, without locking devices on the rollers. Driveways and walkways remain clear and production areas remain easily accessible.

Groundbreaking:

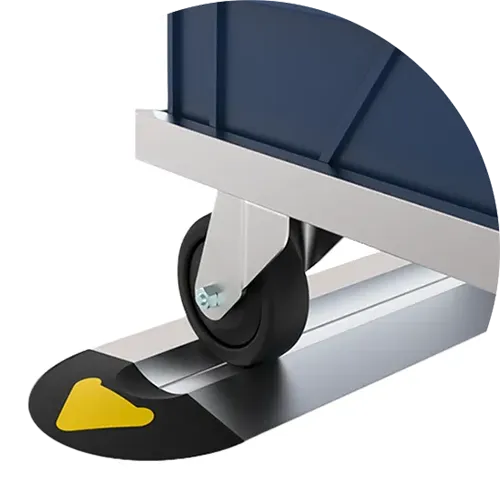

Bright yellow triangles in the end caps signal the exact position of the parking rails.

This is a detail that facilitates efficient material feeding and provides additional safety. The low tapered end caps also minimize the danger of tripping.

FATH PARKING RAILS ARE AVAILABLE IN 3 VERSIONS:

Modular lengths of 400, 800, 1200 and 2400 mm

Flat: For heavy weights

The flat design with a height of 6 mm on both sides allows heavy loads or loads that are difficult to maneuver, such as rollable garbage containers, to be parked and unparked effortlessly in both directions.

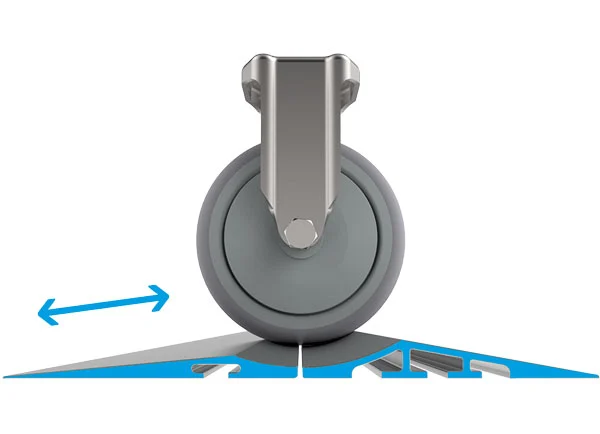

Flat – High: For medium to heavy weights

The flat – version with 6 mm / 10 mm height, ensures a clearly perceptible starting resistance and thus simplifies the positioning of the dolly on the parking rail. Pushing the dolly out over the flat side is particularly easy on the back, even with heavy weights, as only a small amount of force is required.

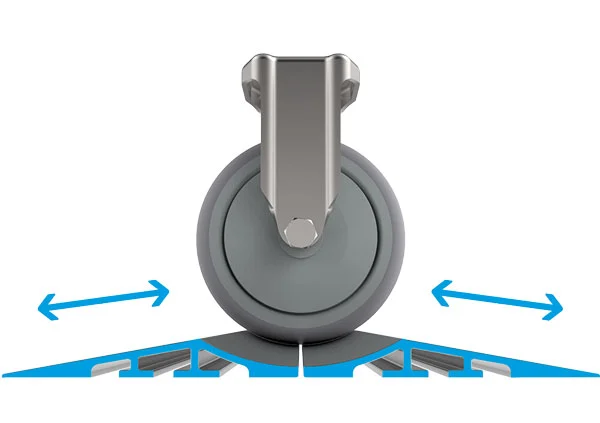

High: For light to medium weights

The double-sided 10 mm high version is particularly suitable for light and medium weights. Dollies can be moved in and out of the parking rail from both sides and are securely held in place.

Skip product gallery

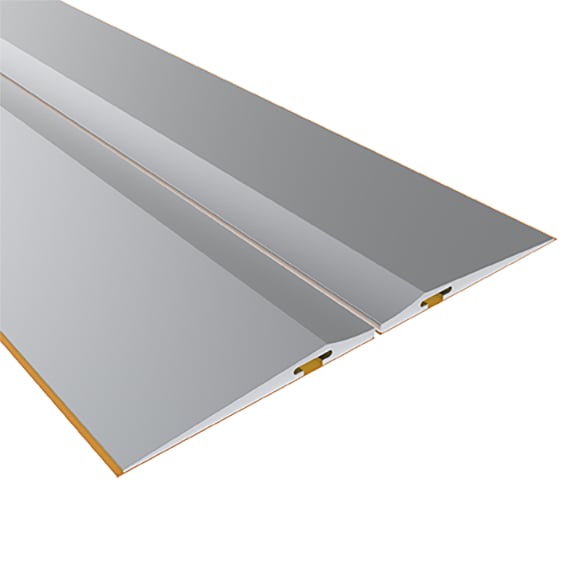

Parking Rail Flat - Flat (Set)
Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible End Cap for wheel diameter ≤ 100 mm see 02084LLS01Zolltarifnummer:76042990900

€0.00*

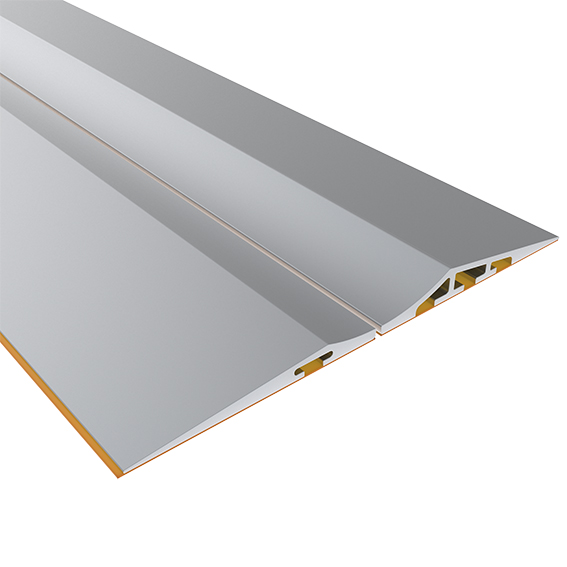

Parking Rail Flat - High (Set)
Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084LHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084LHXLS01Zolltarifnummer:76042990900

€0.00*

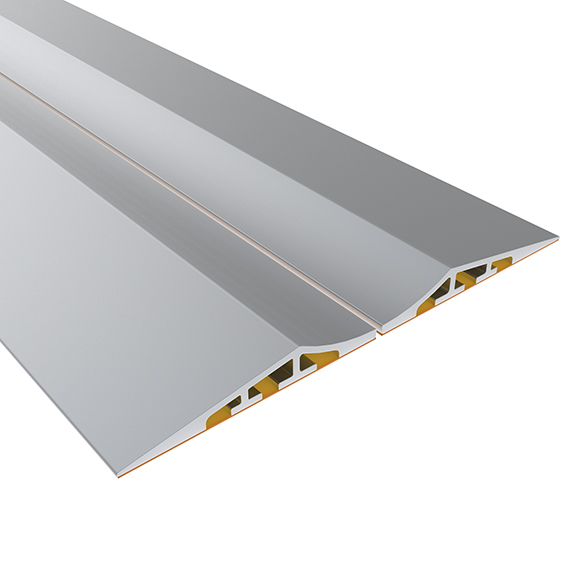

Parking Rail High - High (Set)
Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084HHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084HHXLS01Zolltarifnummer:76042990900

€0.00*

WOULD YOU LIKE TO Test THE FATH PARKING RAILS?

With our sample package, you can quickly decide whether the product is right for you.


Go to sample packages

ACCESSORIES

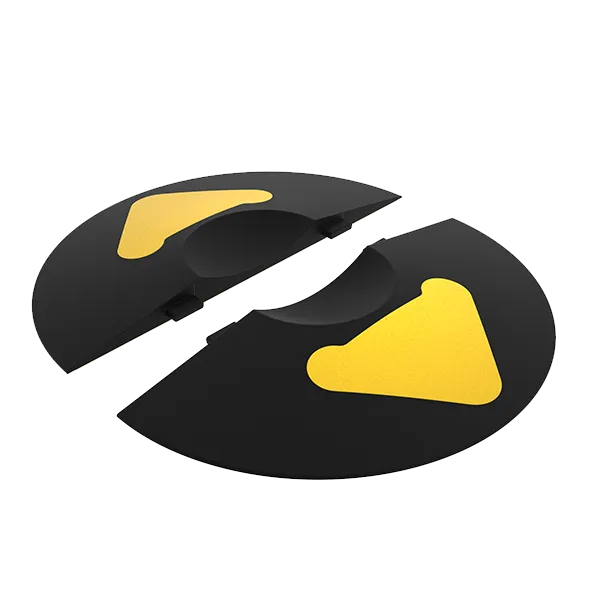

Unique on the market: One-piece end caps

The self-adhesive end caps consist of a single piece – simply attach the end caps and press them onto the floor. Locking lugs ensure immediate correct positioning immediately. The undersides are coated with industrial-grade adhesive. The bonding prevents the ingress of impurities – and your hall floor is not damaged by drill holes.

The one-piece end caps are available in five complete sets for each parking rail version:

  • End Cap (Set) High
  • End Cap (Set) High enlarged version; widening for larger wheel diameters
  • End Cap (Set) Flat - High
  • End Cap (Set) Flat - High enlarged version; widening for larger wheel diameters
  • End Cap (Set) Flat
Skip product gallery

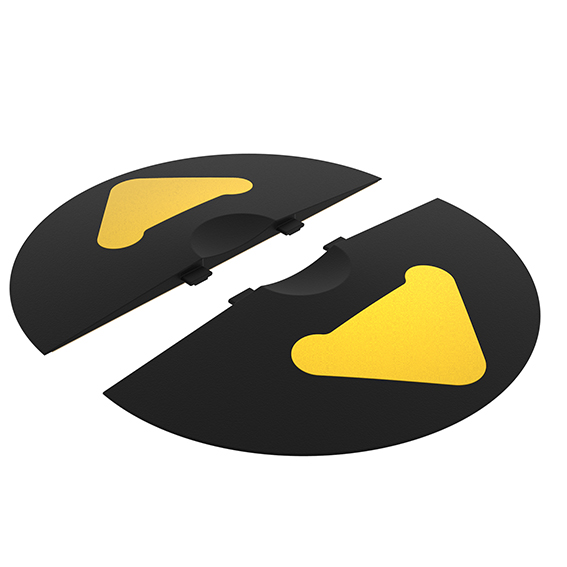

End Cap for Parking Rail Flat - Flat (Set)
Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece end caps; self-adhesive; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:2 end caps 2 position markingsTip:Compatible Parking Rail flat / flat (set) for heavy weights see 02081ALL.0400, Compatible Position Marking as replacement see 02084S.15Zolltarifnummer:39269097900

€0.00*

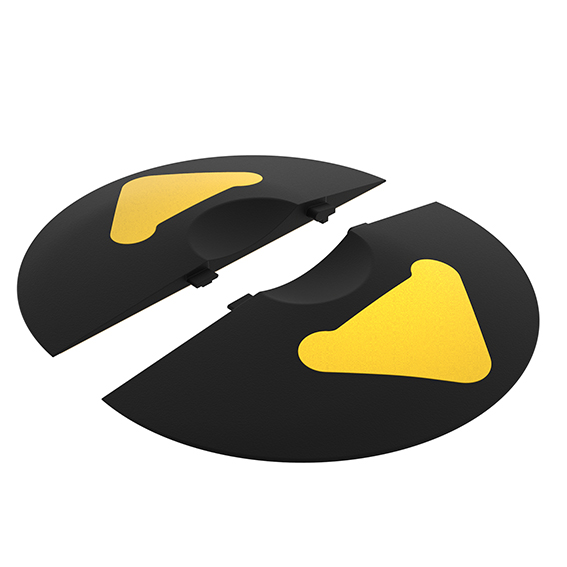

End Cap for Parking Rail Flat - High (Set)
Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece end caps; self-adhesive; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:1 end cap left, 1 end cap right, 2 position markingsTip:Compatible Parking Rail flat / high (set) for medium to heavy weights see 02081ALH.0400, Compatible Position Marking as replacement see 02084S.15Zolltarifnummer:39269097900

€0.00*

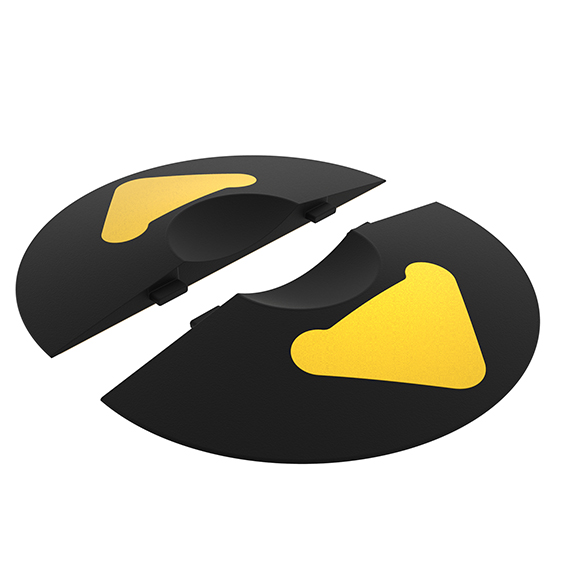

End Cap for Parking Rail High - High (Set)
Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece end caps; self-adhesive, screwable with optional screw-on set; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:2 end caps 2 position markingsTip:Compatible Parking Rail high / high (set) for light to medium weights see 02081AHH.0400, Compatible Position Marking as replacement see 02084S.15, Compatible Screw-on set see 02084R01Zolltarifnummer:39269097900

€0.00*

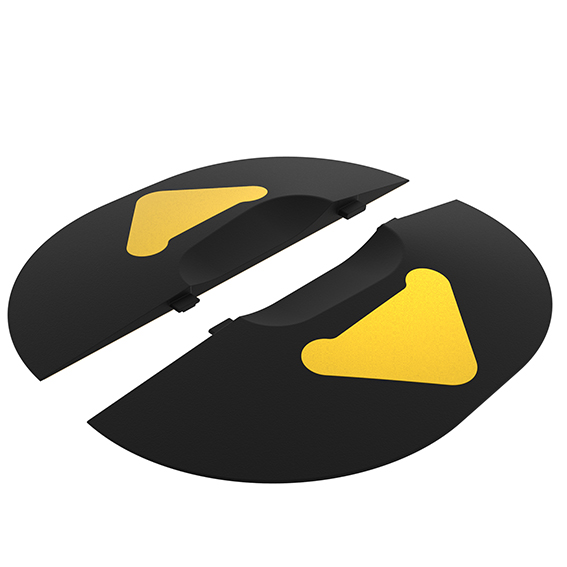

End Cap XL for Parking Rail Flat - High (Set)
Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece XL end caps, no spacers required for large wheel diameters; self-adhesive; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:1 XL end cap left, 1 XL end cap right, 2 position markingsTip:Compatible Parking Rail flat / high (set) for medium to heavy weights see 02081ALH.0400, Compatible Position Marking as replacement see 02084S.15Zolltarifnummer:39269097900

€0.00*

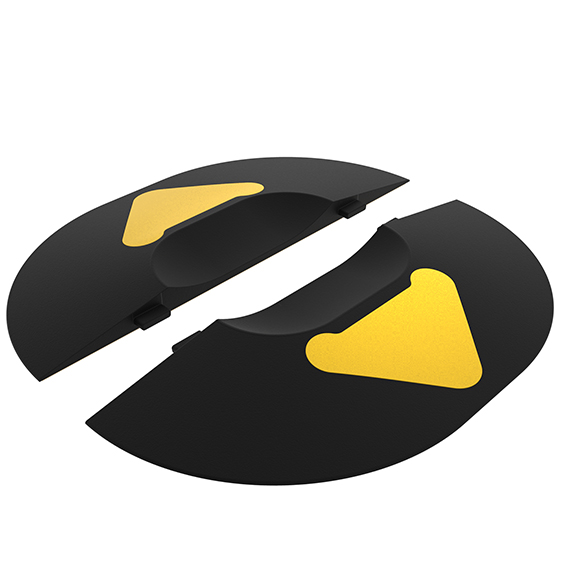

End Cap XL for Parking Rail High - High (Set)
Color:End caps: Black Position markings: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:One-piece XL end caps, no spacers required for large wheel diameters; self-adhesive, screwable with optional screw-on set; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking railMaterial:End caps: Plastic PA, glass ball reinforced Position markings: Plastic PETSet:2 XL end caps 2 position markingsTip:Compatible Parking Rail high / high (set) for light to medium weights see 02081AHH.0400, Compatible Position Marking as replacement see 02084S.15, Compatible Screw-on set see 02084R01Zolltarifnummer:39269097900

€0.00*

CAD Downloads


TO CAD DOWNLOAD
