Product Portrait


Roller Tracks

Roller tracks for manual work piece transfer – built with FATH components!

FATH offers a collection of different transport units and accessories for aluminum as well as steel roller track profiles. Assembly of the units in the aluminum profile can be done easily from above and without tools. You have the choice between different rollers, ball rollers, brush and slide units. All units can be freely combined.

There are different roller shapes for different applications, each designed to meet special requirements regarding running smoothness, center distance and load capacity. By the way: FATH rollers are made from high-quality, glass ball reinforced Polyamide.

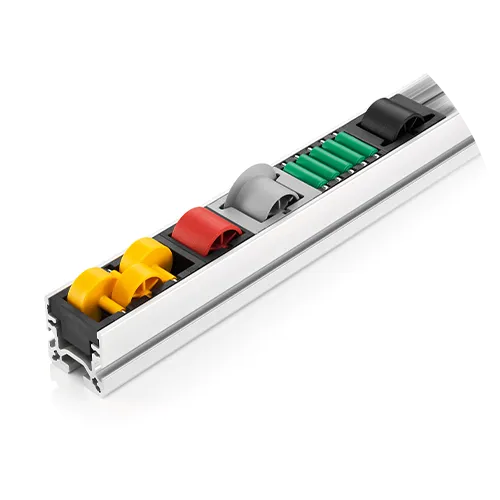

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • FATH roller track system for aluminum and steel profiles
  • Modular system design for flexible application
  • Mounting in the track profile without tools and from above
  • Different roller shapes for any application
  • Available in four colors and as ESD version
  • Economical solution: roller track XST

Moving in two dimensions

Ball roller and brush units provide for the possibility to move goods in two directions, even transversely to the track direction, e.g. at track switches and material locks. End plates close the end face of the track profile safely, provide a defined end stop, and allow for the attachment of buffer stops. Compatible holding brackets in different versions connect with the tubular frame system D28.

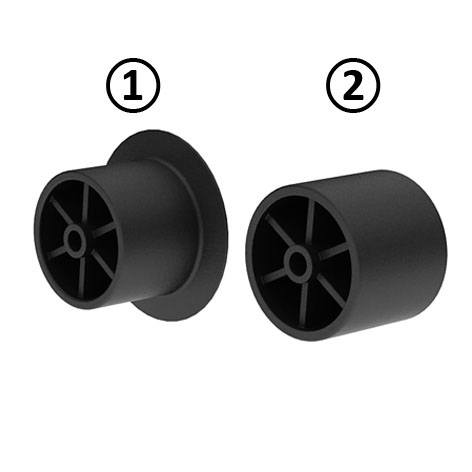

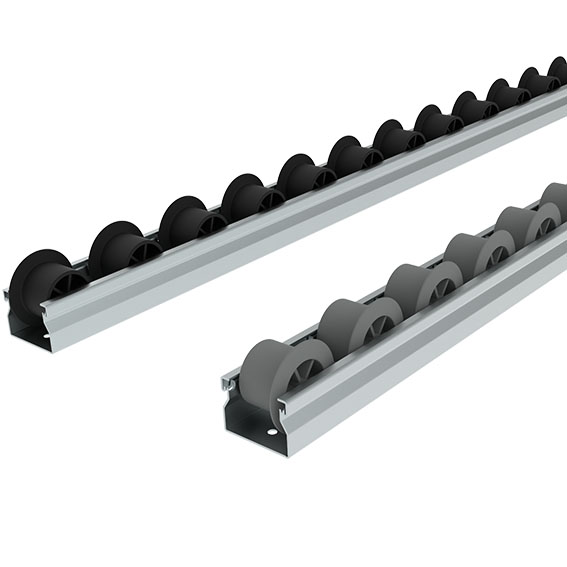

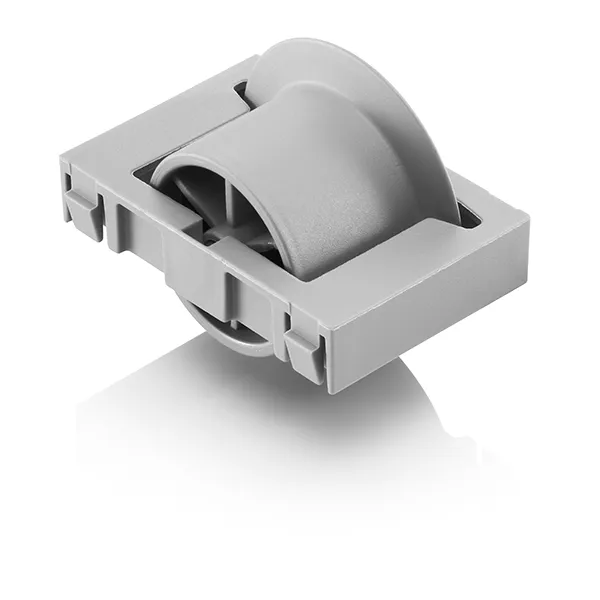

Rollers R28 are also supplied with flange for lateral guidance.

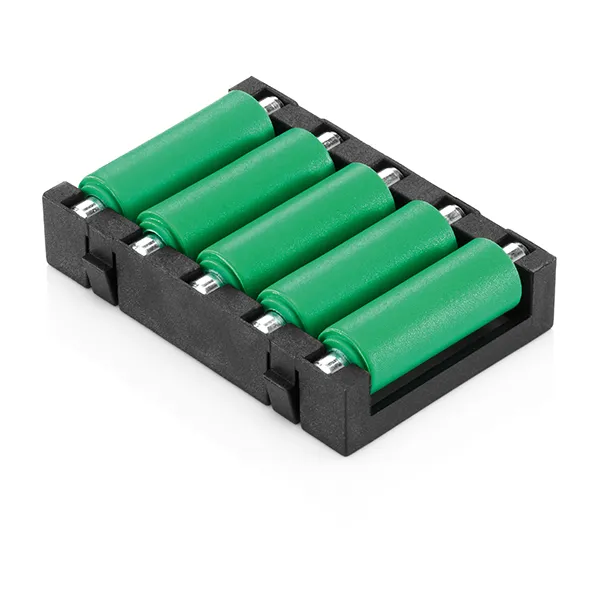

The roller unit R9 has very small center distance and a maximum number of axles. It is designed to build tracks running smoothly with minimum vibrations. It provides a reduced point load on the good and is perfect for use with very soft cardboard boxes and coarsely built wooden boxes.

With multi-colored rollers, level marks can be realized, e.g. for Kanban applications.

Ball roller and brush units provide for the possibility to move goods in two directions, even transversely to the track direction, e.g. at track switches and material locks.

Icon-Plus-white.svg?ts=1743167971 Another plus:

All units are available as electrostatic discharging version.

End plates close the end face of the track profile safely, provide a defined end stop, and allow for the attachment of buffer stops. Compatible holding brackets in different versions connect with the tubular frame system D28.

Kanban Color Marking

With mulit-colored rollers, level marks can be realized, e.g. for Kanban applications.

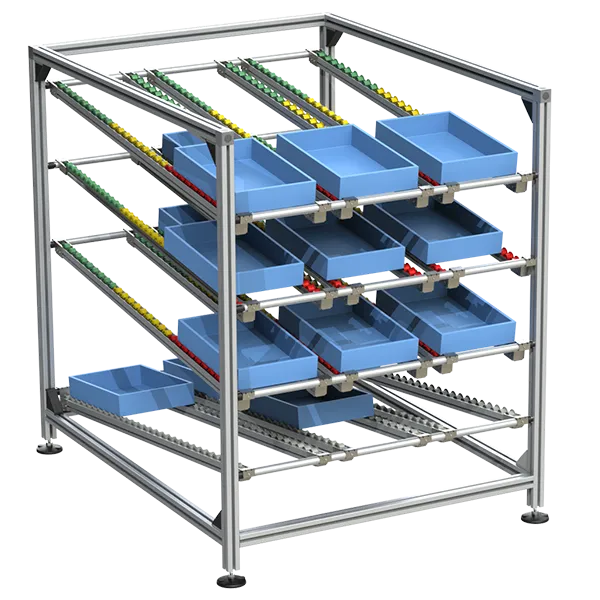

Kanban Shelf

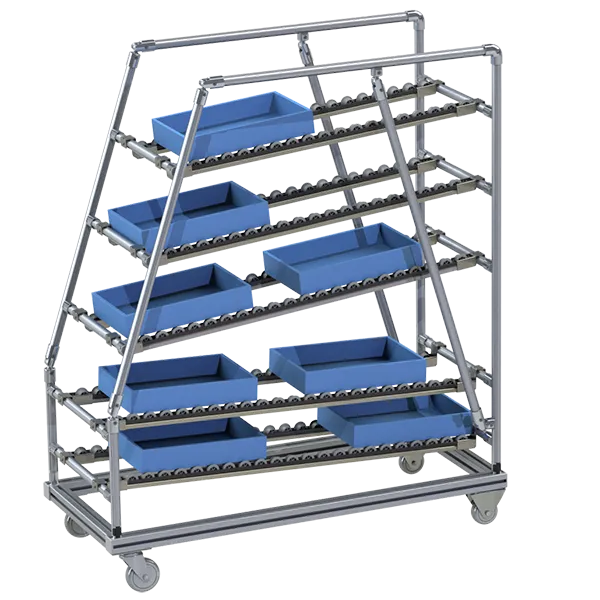

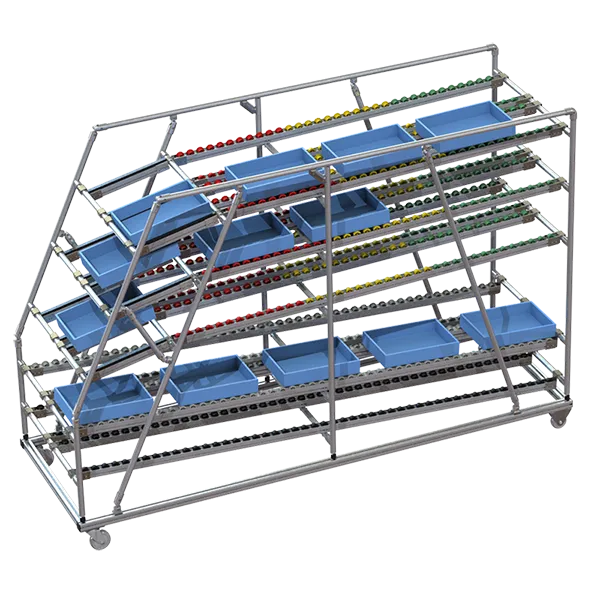

Mobile Kanban Shelf

Shelf Trolley

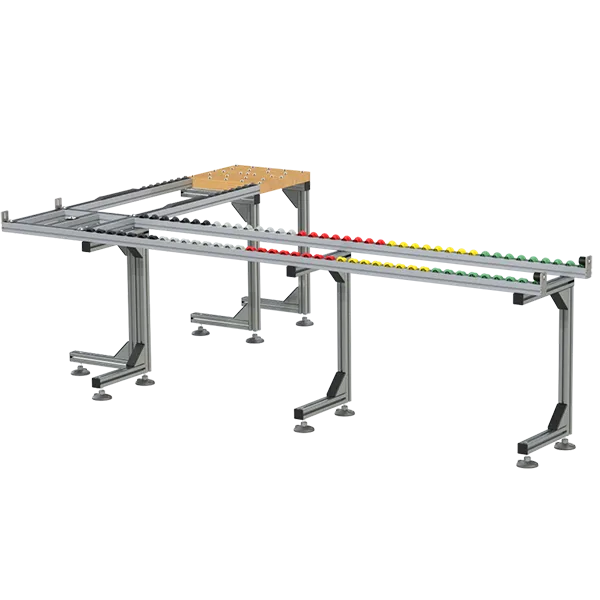

Conveyor Line

Would you like to learn more about FATH ROLLER TRACKS?

Click here to view the products.


Go to Roller Tracks

VERSIONS

Lateral Guidance or very small center distance

Skip product gallery
Roller R28 for Roller Units
Color: Red ≈ RAL 3020 | ESD: - | Fig.: | Version: Without flange
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*

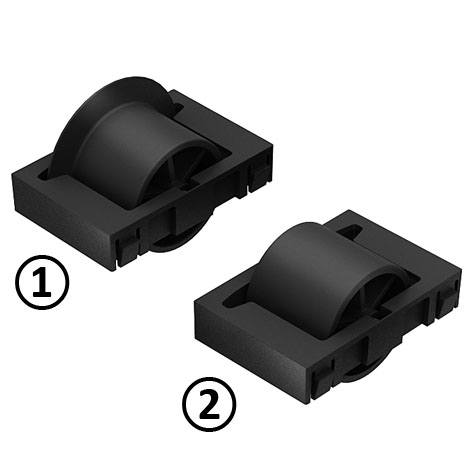

Roller Unit L50 R28
Color of Cage: Black | Color of Roller: Black | ESD: ESD | Fig.: | Max. Load (N): 125 | Version: Without flange
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fibre reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L50 R28 consisting of: - Roller R28, see 062RR2891: - Axle AL, see 62AXM; - Cage L50 for rollers R28, see 062ACR2891.50; - Compatible Brake R28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*

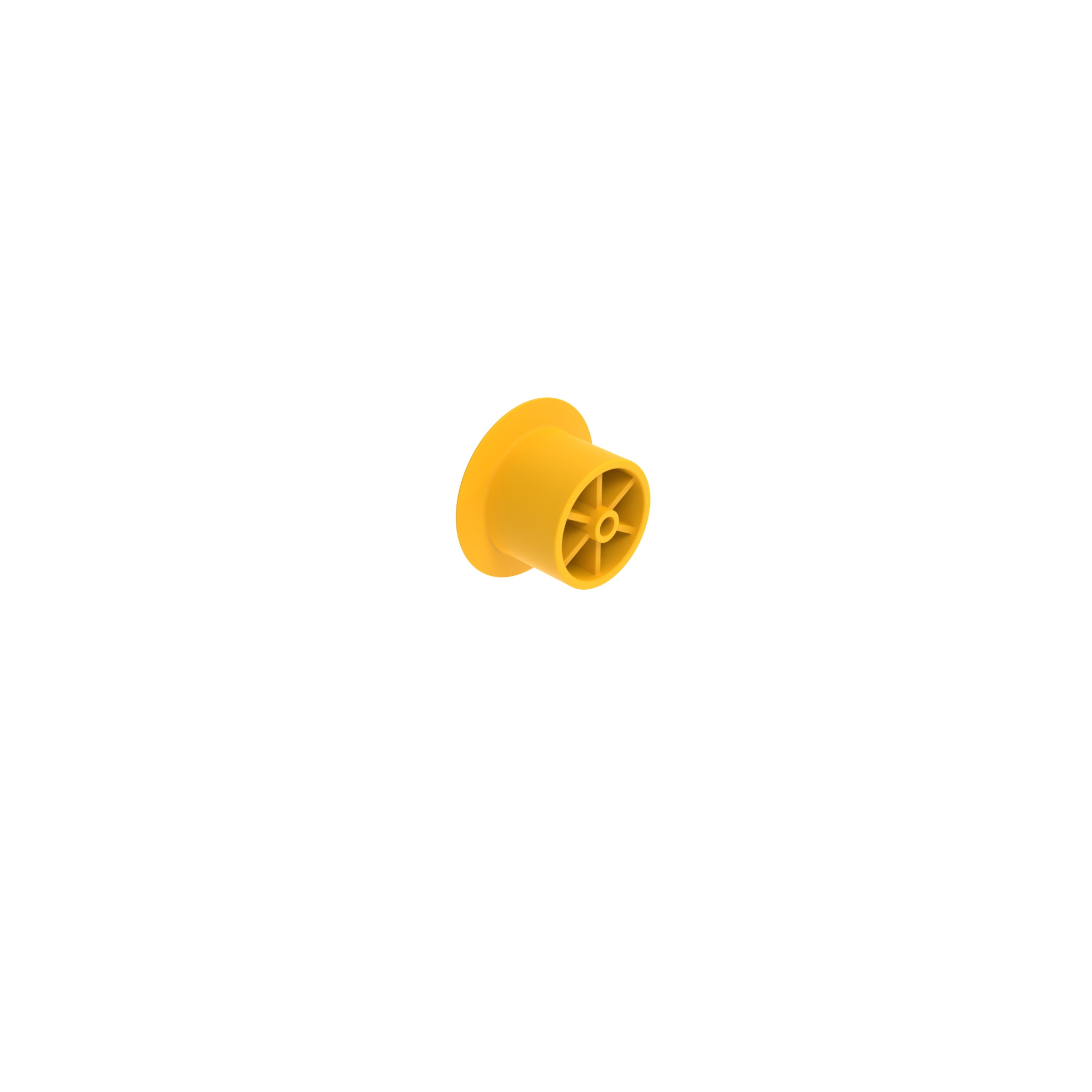

Roller R28 for Roller Units
Color: Yellow ≈ RAL 1003 | ESD: - | Fig.: | Version: With flange
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*
Roller R28 for Roller Units
Color: Green ≈ RAL 6032 | ESD: - | Fig.: | Version: Without flange
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*
Roller R28 for Roller Units
Color: Gray ≈ RAL 7042 | ESD: - | Fig.: | Version: With flange
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*
Roller Unit L33 R28
Color of Cage: Black | Color of Roller: Red ≈ RAL 3020 | ESD: - | Max. Load (N): 150
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, reduced center distance due to cage L33, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fibre reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L33 R28 consisting of: – Roller R28, see 062RR2891; – Axle AL, see 062AXM; – Cage L33 for rollers R28, see 062ACR2891.33;Zolltarifnummer:39269097900

€0.00*
Roller Unit L50 R28
Color of Cage: Gray ≈ RAL 7042 | Color of Roller: Gray ≈ RAL 7042 | ESD: - | Fig.: | Max. Load (N): 150 | Version: Without flange
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fibre reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L50 R28 consisting of: - Roller R28, see 062RR2891: - Axle AL, see 62AXM; - Cage L50 for rollers R28, see 062ACR2891.50; - Compatible Brake R28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*
Roller Unit L50 R28
Color of Cage: Black | Color of Roller: Red ≈ RAL 3020 | ESD: - | Fig.: | Max. Load (N): 150 | Version: With flange
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fibre reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L50 R28 consisting of: - Roller R28, see 062RR2891: - Axle AL, see 62AXM; - Cage L50 for rollers R28, see 062ACR2891.50; - Compatible Brake R28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*
Roller Unit L50 R28
Color of Cage: Gray ≈ RAL 7042 | Color of Roller: Gray ≈ RAL 7042 | ESD: - | Fig.: | Max. Load (N): 150 | Version: With flange
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fibre reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L50 R28 consisting of: - Roller R28, see 062RR2891: - Axle AL, see 62AXM; - Cage L50 for rollers R28, see 062ACR2891.50; - Compatible Brake R28 see 062RBR28E;Zolltarifnummer:39269097900

€0.00*

CAD Downloads


TO CAD DOWNLOAD

Economical solution

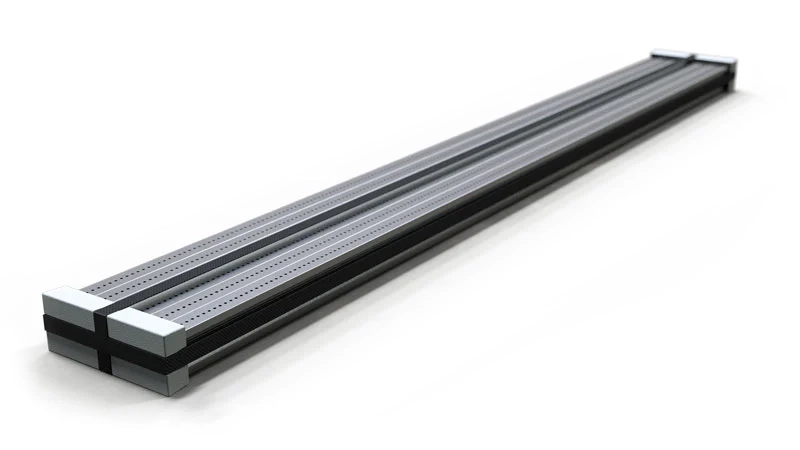

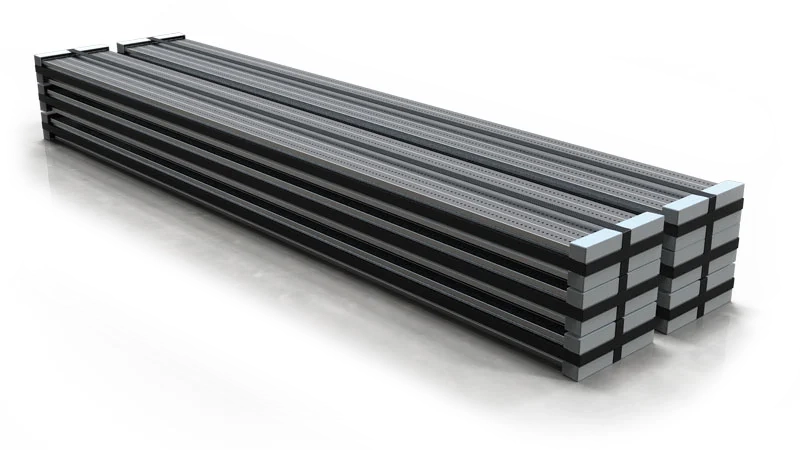

The roller track XST. It is available as a bundle of 12 in a length of two metres. Since there is no additional freight surcharge, you benefit from significantly lower logistics costs. The holders for the roller track ST can be used for the roller track XST. With its extremely flat design, the Roller Track I 60x24 has been designed for the transport of heavier goods with low space requirements. Carbon fiber reinforced rollers ensure high impact durability. The roller material also allows for higher angles of tilt without the transported goods picking up too much speed. Due to the antistatic design, the roller rail can also be used for sensitive products.

Skip product gallery

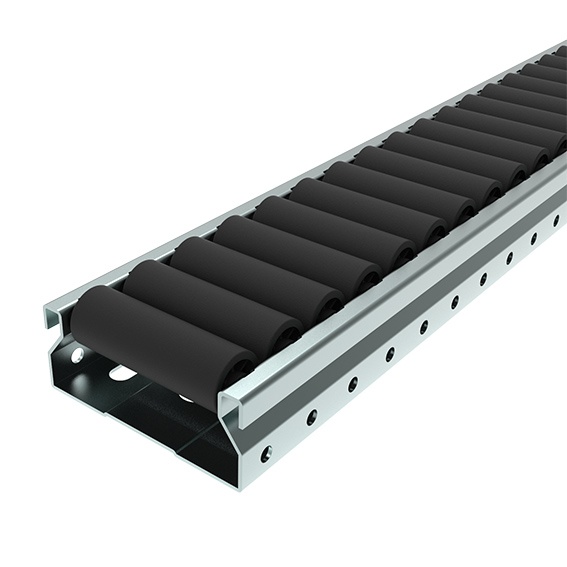

Roller Track I 60x24
Color:BlackDelivery Countries:WorldwideDescription:Resilient and smooth running roller track I 60x24Material:Roller track profile I: Steel ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other colors on requestZolltarifnummer:84283920000

€0.00*

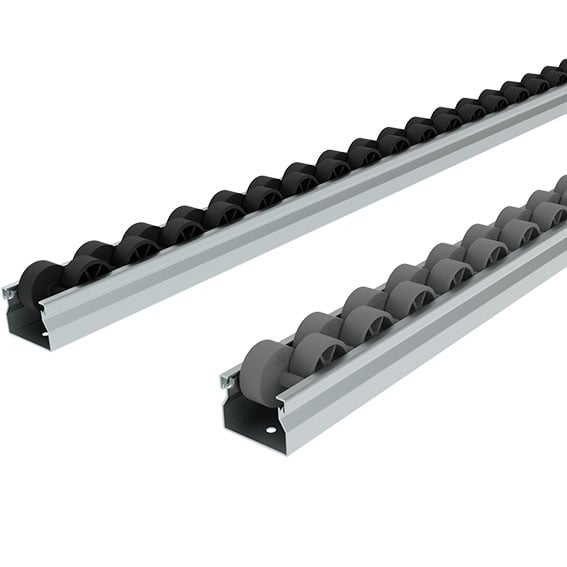

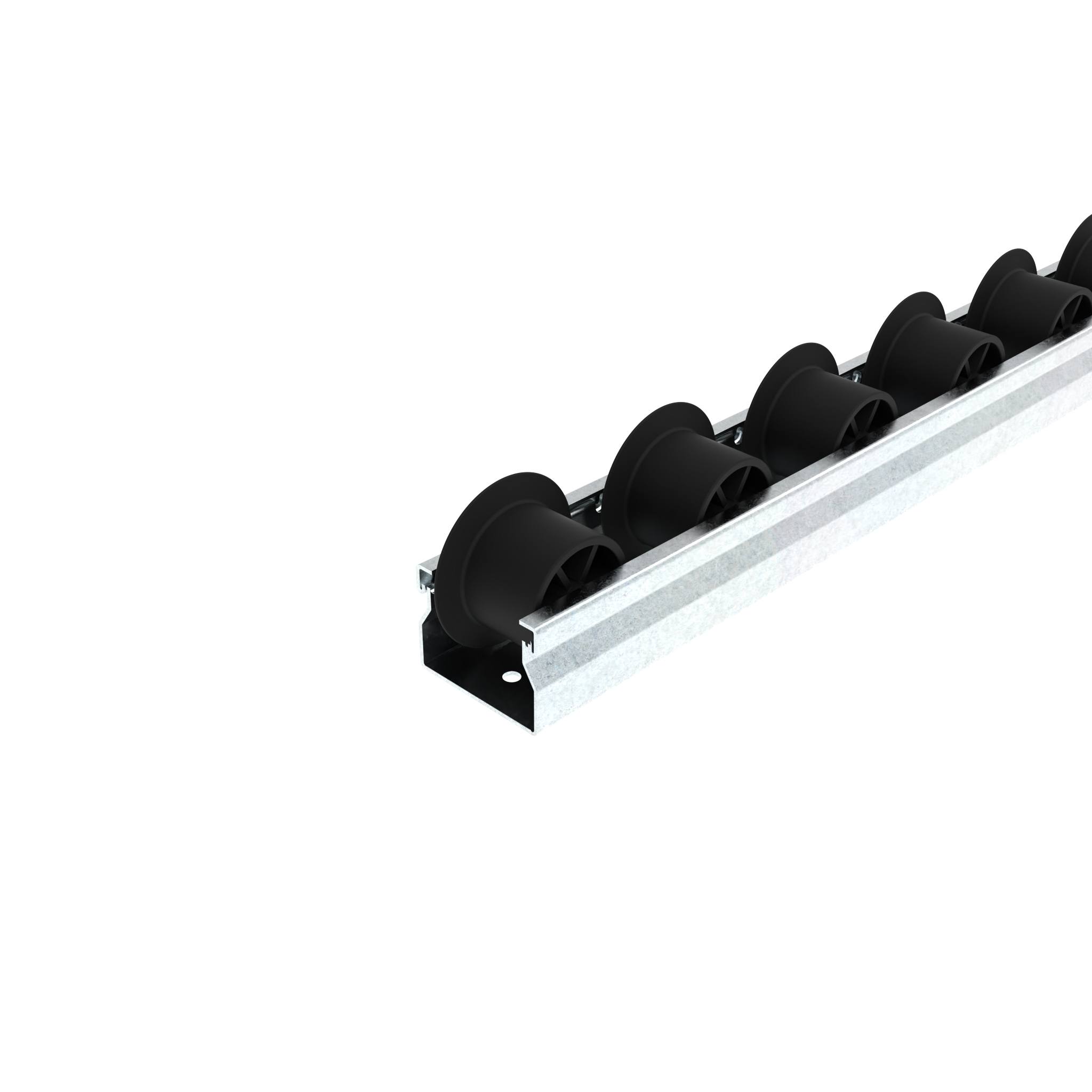

Roller Track XST R28 with Flange
Color of Roller: Black | ESD: ESD
Color:Black, grayDelivery Countries:WorldwideDescription:Economical, resilent and smooth running roller track XST R28, with flange as lateral guidingMaterial:Roller track profile XST: Steel Standard roller: Plastic PP ESD electrostatical discharging roller: Plastic PP, electrostatical discharging Axle: SteelSpecials:Other colors on requestZolltarifnummer:84283920000

€0.00*
Roller Track XST H26
Color of Roller: Black | ESD: ESD
Color:Black, grayDelivery Countries:WorldwideDescription:Economical, resilent and smooth running roller track XST H26Material:Roller track profile XST: Steel Standard roller: Plastic PP ESD electrostatical discharging roller: Plastic PP, electrostatical discharging Axle: SteelSpecials:Other colors on requestZolltarifnummer:84283920000

€0.00*
Roller Track XST R28
Color:Black, grayDelivery Countries:WorldwideDescription:Economical, resilent and smooth running roller track XST R28Material:Roller track profile XST: Steel Standard roller: Plastic PP ESD electrostatical discharging roller: Plastic PP, electrostatical discharging Axle: SteelSpecials:Other colors on requestZolltarifnummer:84283920000

€0.00*
Roller Track XST H26
Color:Black, grayDelivery Countries:WorldwideDescription:Economical, resilent and smooth running roller track XST H26Material:Roller track profile XST: Steel Standard roller: Plastic PP ESD electrostatical discharging roller: Plastic PP, electrostatical discharging Axle: SteelSpecials:Other colors on requestZolltarifnummer:84283920000

€0.00*
Roller Track I 60x24
Color: Black | ESD: ESD
Color:BlackDelivery Countries:WorldwideDescription:Resilient and smooth running roller track I 60x24Material:Roller track profile I: Steel ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other colors on requestZolltarifnummer:84283920000
