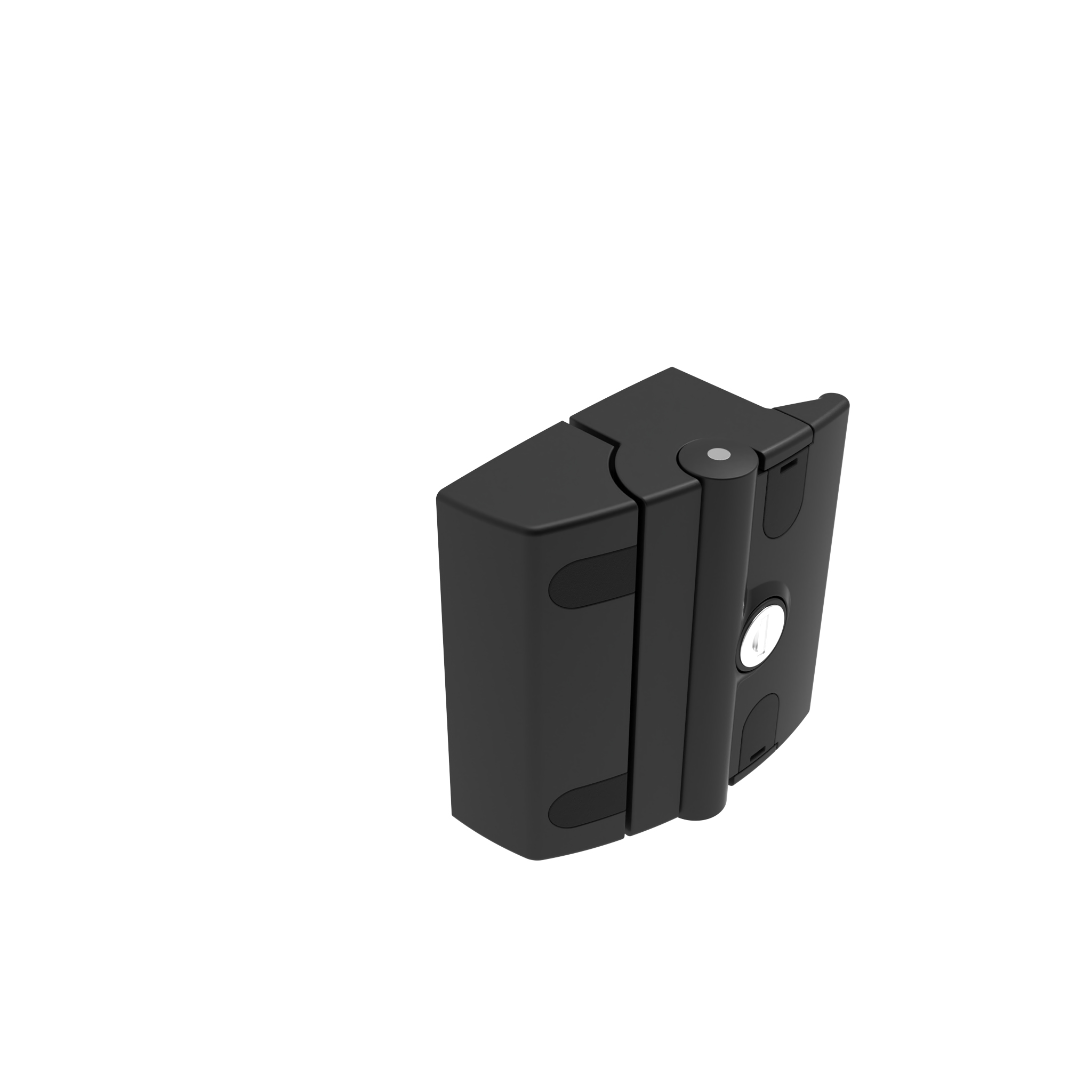

Slam Latch PRO

Product information "Slam Latch PRO"

Color:
Black

Delivery Countries:
Worldwide

Description:

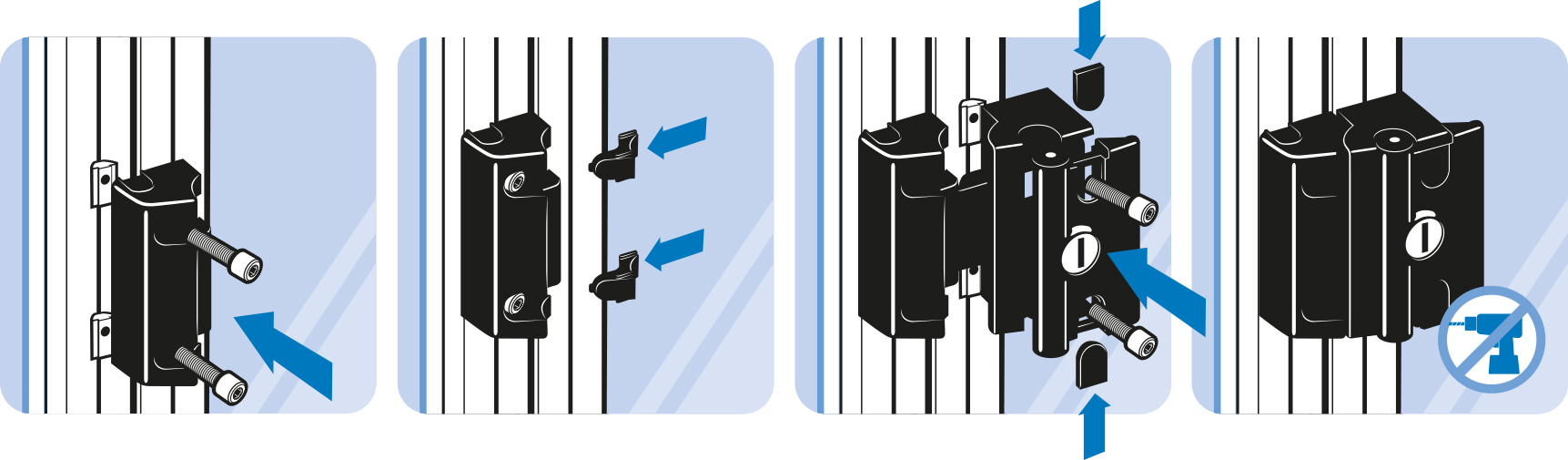

For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly;
Safe against disassembling in the locked position

Material:
Aluminum die-cast

Surface:
Powder coated

Tip:
* Universal: One key fits all slam latches
Unique: Each slam latch has a different key
Compatible Emergency Opener for Slam Latch see 0957409 et sq.;
Compatible Replacement Cover Cap (Set) see 0957404RS01

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23190290
(ECLASS 12.0): 23190290
(ECLASS 13.0): 23190290

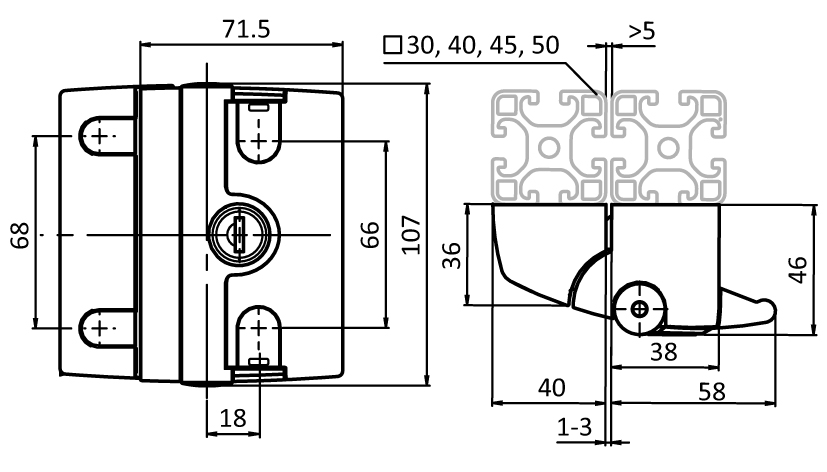

Fastening: From the front, using M6 socket head or pan head screws
Model: Aluminum die-cast
Pack Quantity: 1 piece
Weight (g): 340.0

Variants

Product ID Lock
0957404 Universal*
0957405 Unique*
0957406 without
