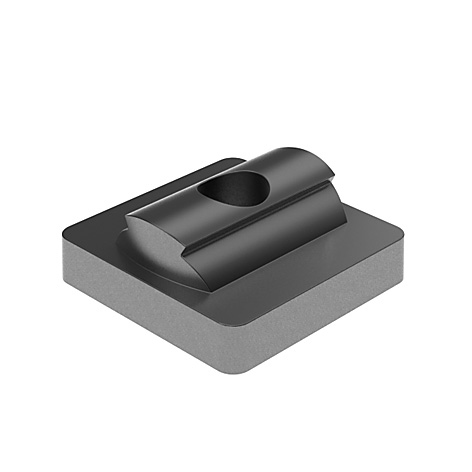

Adapter Plate D28 (Set)
0,00 €

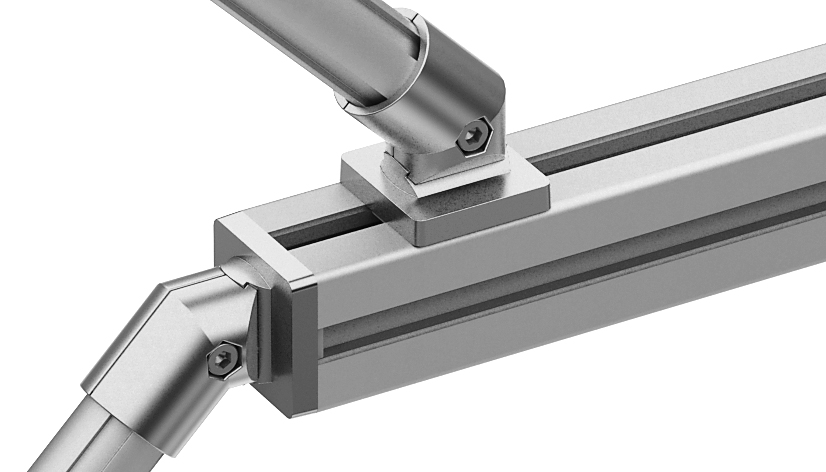

To connect tubular frame profiles with slot 8 or 10 aluminum profiles
Adapter plates: Aluminum die-cast
Centering piece: Zinc die-cast
Superficie:
Liso
Fastening:
With pan-head-screw DIN EN ISO 7380 (DIN 34805) - M8
Set:
1 adapter plate,
2 locating pins for slot 8 and 10
Tip:
Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01
*Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | For tubular frame profiles |
| Peso (g): | 29.0 |
| Numero de ERP: | 127420 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 76169910990
- Número de Arancel Aduanero de Exportación
- 76169910
