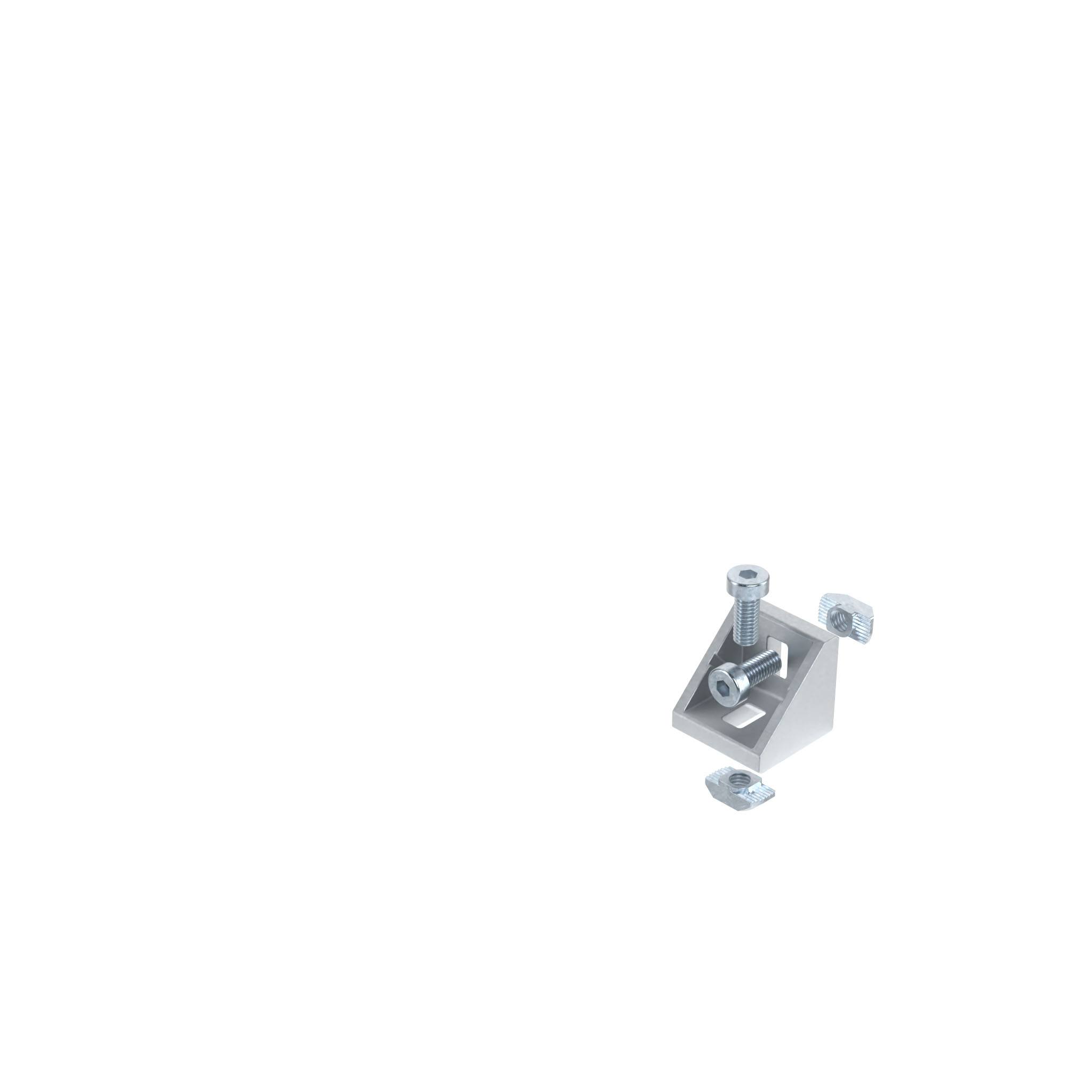

Alu Connection Angle 30
0,00 €
Número de producto:
093W303N08S11
Cantidad por Paquete:
10 piezas / 10 jconjuntos
Información sobre el producto "Alu Connection Angle 30"
Assembly Set 1:
2 hammer nuts - slot 8 - M6,
2 screws DIN 7984 - M6 x 14
Assembly Set 2:
1 hammer nut - slot 8 - M6,
1 screw DIN 7984 - M6 x 14,
1 hammer nut - slot 10 - M6,
1 screw DIN 7984 - M6 x 18
Assembly Set 3:
2 hammer nuts - slot 10 - M6,
2 screws DIN 7984 - M6 x 18
Color:
Angle: Alu color
Países de Entrega:
En todo el mundo
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA303S02
2 hammer nuts - slot 8 - M6,
2 screws DIN 7984 - M6 x 14
Assembly Set 2:
1 hammer nut - slot 8 - M6,
1 screw DIN 7984 - M6 x 14,
1 hammer nut - slot 10 - M6,
1 screw DIN 7984 - M6 x 18
Assembly Set 3:
2 hammer nuts - slot 10 - M6,
2 screws DIN 7984 - M6 x 18
Color:
Angle: Alu color
Países de Entrega:
En todo el mundo
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA303S02
| Model: | Aluminio fundido a presión, perfil 30 y hasta |
|---|---|
| Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Peso (g): | 35.0 |
| (ECLASS 6.0): | 23360290 |
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Numero de ERP: | 127407 |
| Zolltarifnummer: | 76169910990 |
