Base ZN para patas ECO

Información sobre el producto "Base ZN para patas ECO"

Color:
Negro, -

Países de Entrega:
En todo el mundo

Description:

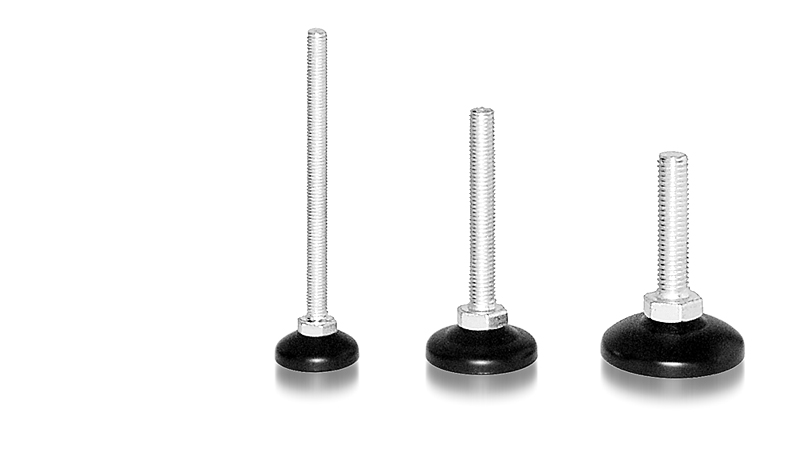

Economical leveling foot for strong positioning on slightly uneven floors

Material:
Zinc fundido a presión

Specials:
Other surfaces, other sizes, other colors, glued anti-slip plate on request

Superficie:
Polvo cubierto / zincado azul

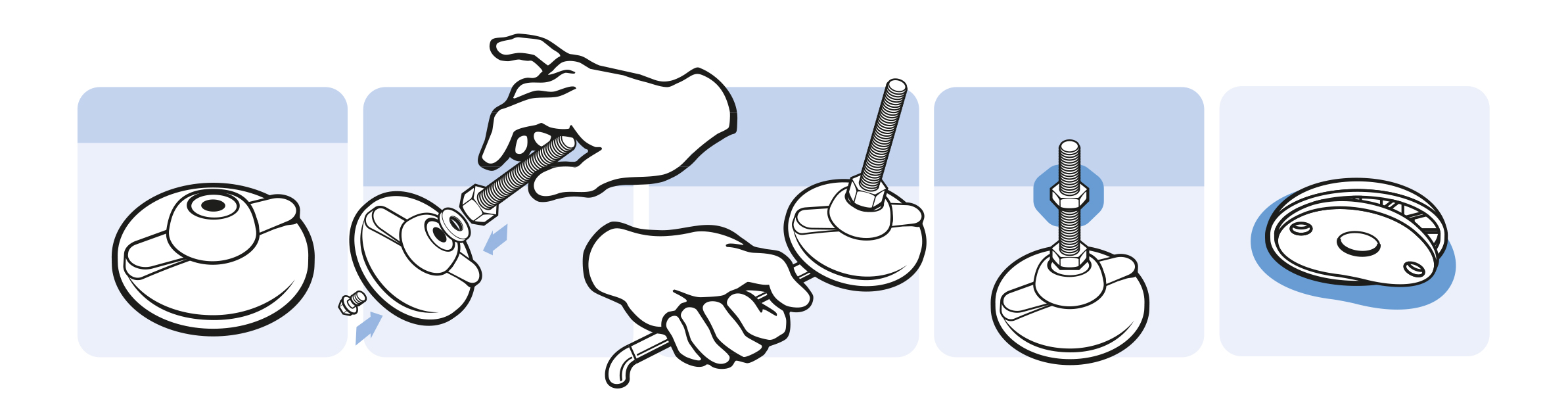

Tip:
Compatible Threaded Rod see 098EM08025M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip-Plate see 098EG030;
(ECO feet are provided factory assembled)
Cantidad por Paquete: 100 piezas
Model: Zinc fundido a presión
Peso (g): 70.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 79070000900
Número de Arancel Aduanero de Exportación: 79070000
Numero de ERP: 104542

Variantes

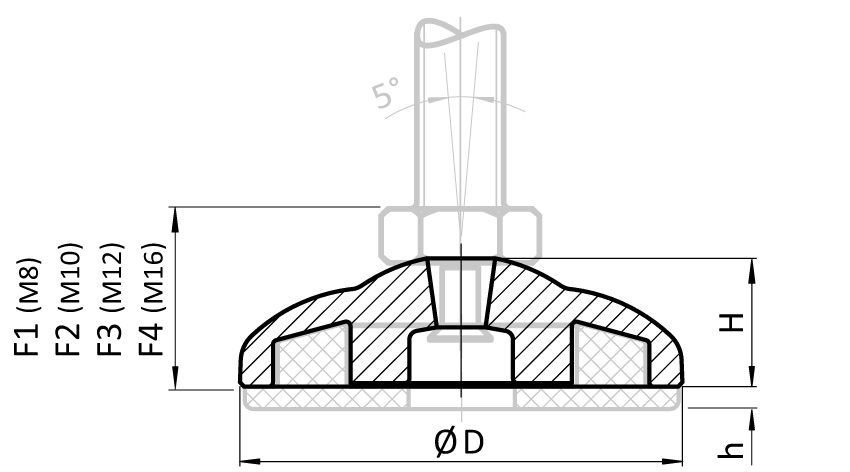

Número de producto Base Fmax (N) D (mm) Version H (mm) F1 (mm) F2 (mm) F3 (mm) h (mm) Superficie Color F4 (mm)
098E030ZS 30 15690 29 without anti-slip plate 11.5 16.0 16.5 17.5 2.0 Polvo cubierto Negro 20.0
098E030ZV 30 15690 29 without anti-slip plate 11.5 16.0 16.5 17.5 2.0 Galvanizado - 20.0
098E030ZVG 30 15690 29 with anti-slip plate 11.5 16.0 16.5 17.5 2.0 Galvanizado - 20.0
098E040ZS 40 17650 39 without anti-slip plate 12.0 16.5 17.0 18.0 2.5 Polvo cubierto Negro 20.5
098E040ZV 40 17650 39 without anti-slip plate 12.0 16.5 17.0 18.0 2.5 Galvanizado - 20.5
098E040ZVG 40 17650 39 with anti-slip plate 12.0 16.5 17.0 18.0 2.5 Galvanizado - 20.5
098E050ZS 50 19600 50 without anti-slip plate 14.5 19.0 19.5 20.5 3.0 Polvo cubierto Negro 23.0
098E050ZSG 50 19600 50 with anti-slip plate 14.5 19.0 19.5 20.5 3.0 - Negro 23.0
098E050ZV 50 19600 50 without anti-slip plate 14.5 19.0 19.5 20.5 3.0 Galvanizado - 23.0
098E050ZVG 50 19600 50 with anti-slip plate 14.5 19.0 19.5 20.5 3.0 Galvanizado - 23.0
