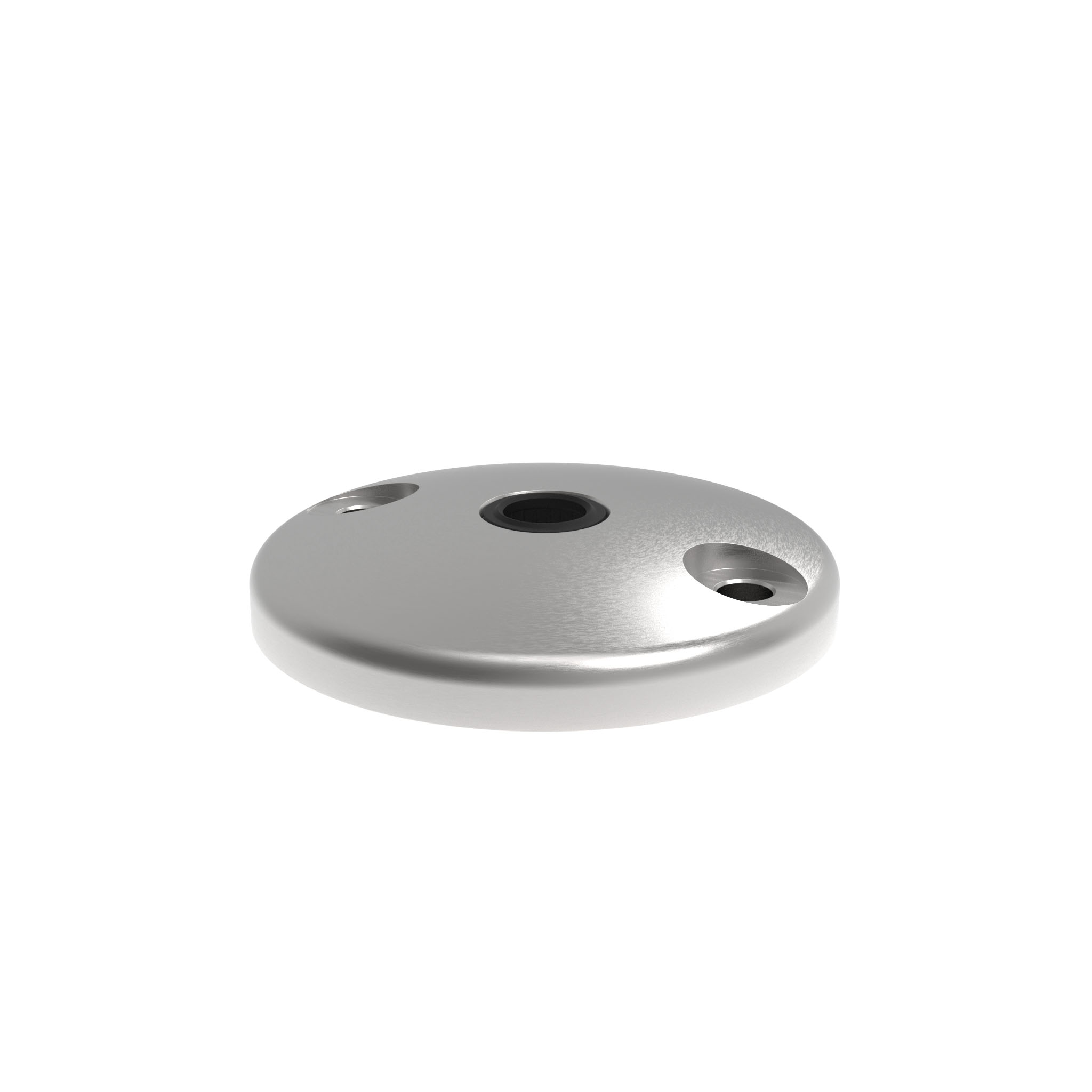

Base acier inox BDH para patas giratorias, rótula 15

Información sobre el producto "Base acier inox BDH para patas giratorias, rótula 15"

Países de Entrega:
En todo el mundo

Description:
A swiveling leveling foot which can be fixed to the floor

Material:
Acero inoxidable SS303

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Superficie:
Liso

Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
Model: Stainless steel, with bolt-down holes
Cantidad por Paquete: 10 piezas
Número de Arancel Aduanero de Exportación: 73269098
Peso (g): 587.0
(ECLASS 6.0): 90900102
(ECLASS 7.0): 90900102
(ECLASS 8.0): 90900102
(ECLASS 9.0): 90900102
(ECLASS 10.0): 90900102
(ECLASS 11.0): 90900102
(ECLASS 12.0): 90900102
(ECLASS 13.0): 90900102
(ECLASS 15.0): 90900102
(ECLASS 16.0): 23010704
ECLASS_V14.0: 90900102
Numero de ERP: 103968
Zolltarifnummer: 73269098900

Variantes

Número de producto Version Base Fmax (N) LK (mm) D (mm) F1 (mm) F2 (mm) F3 (mm)
098D080EB without anti-slip plate 80 29400 55 79 29.5 32.5 33.5
098D080EBG with anti-slip plate 80 29400 55 79 29.5 32.5 33.5
098D100EB without anti-slip plate 100 39200 74 99 29.5 32.5 33.5
098D100EBG with anti-slip plate 100 39200 74 99 29.5 32.5 33.5
098D120EB without anti-slip plate 120 39200 94 119 29.5 32.5 33.5
098D120EBG with anti-slip plate 120 39200 94 119 29.5 32.5 33.5
