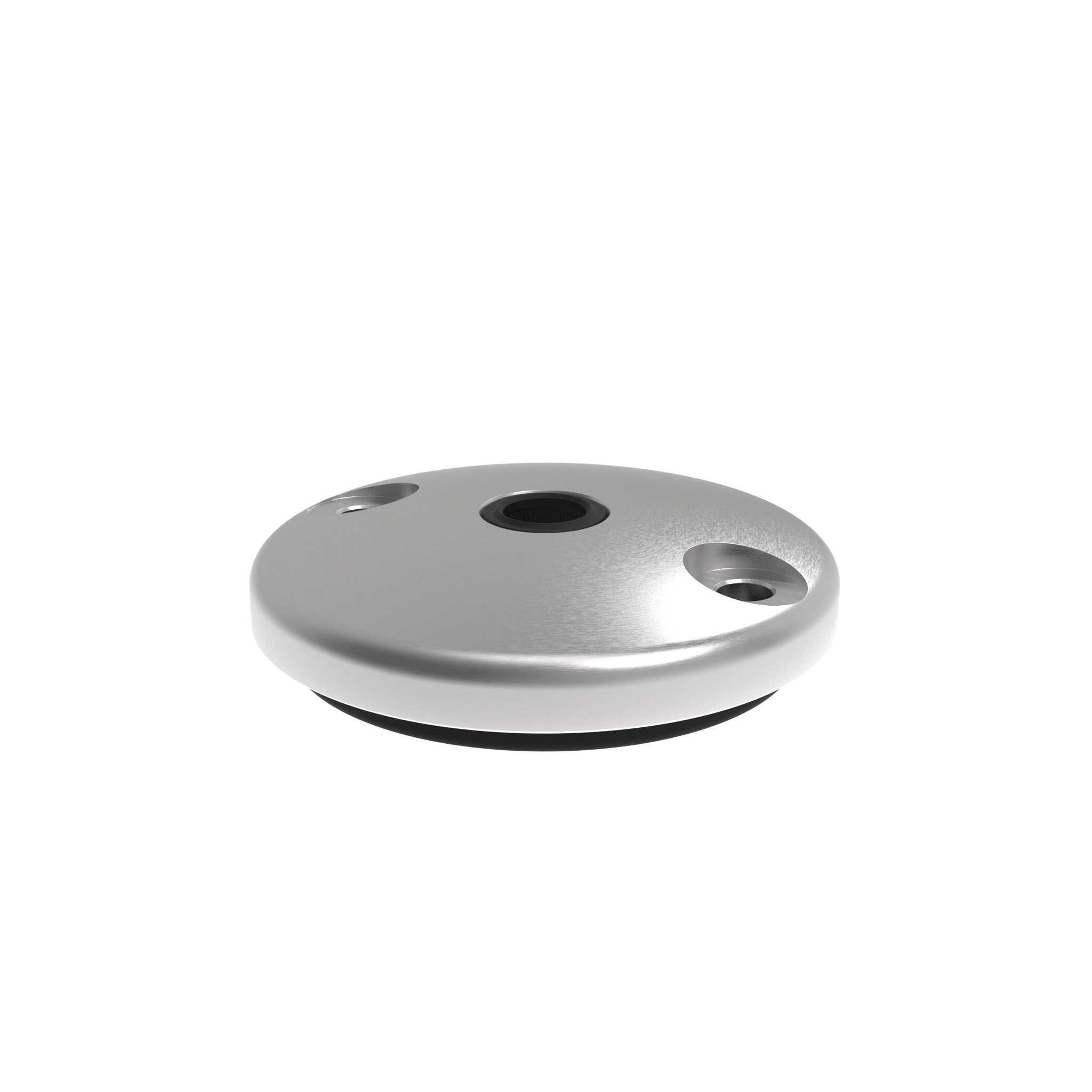

Base acier inox BDH para patas giratorias, rótula 15

Información sobre el producto "Base acier inox BDH para patas giratorias, rótula 15"

Países de Entrega:
En todo el mundo

Description:
A swiveling leveling foot which can be fixed to the floor

Material:
Acero inoxidable SS303

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Superficie:
Liso

Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
Cantidad por Paquete: 10 piezas
Model: Stainless steel, with bolt-down holes
Peso (g): 624.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 73269098900
Número de Arancel Aduanero de Exportación: 73269098
Numero de ERP: 103969

Variantes

Número de producto Base Fmax (N) D (mm) Version LK (mm) F1 (mm) F2 (mm) F3 (mm)
098D080EB 80 29400 79 without anti-slip plate 55 29.5 32.5 33.5
098D080EBG 80 29400 79 with anti-slip plate 55 29.5 32.5 33.5
098D100EB 100 39200 99 without anti-slip plate 74 29.5 32.5 33.5
098D100EBG 100 39200 99 with anti-slip plate 74 29.5 32.5 33.5
098D120EB 120 39200 119 without anti-slip plate 94 29.5 32.5 33.5
098D120EBG 120 39200 119 with anti-slip plate 94 29.5 32.5 33.5
